8 Channel I2C Solid State Relay Module SSR For Arduino Raspberry PI and All Mic SSR
8 Channel I2C Solid State Relay Module Changeable I2C device slave address Can be connected up to 8 devices to the one i2c line bus
Old price:
$49.00
$34.99

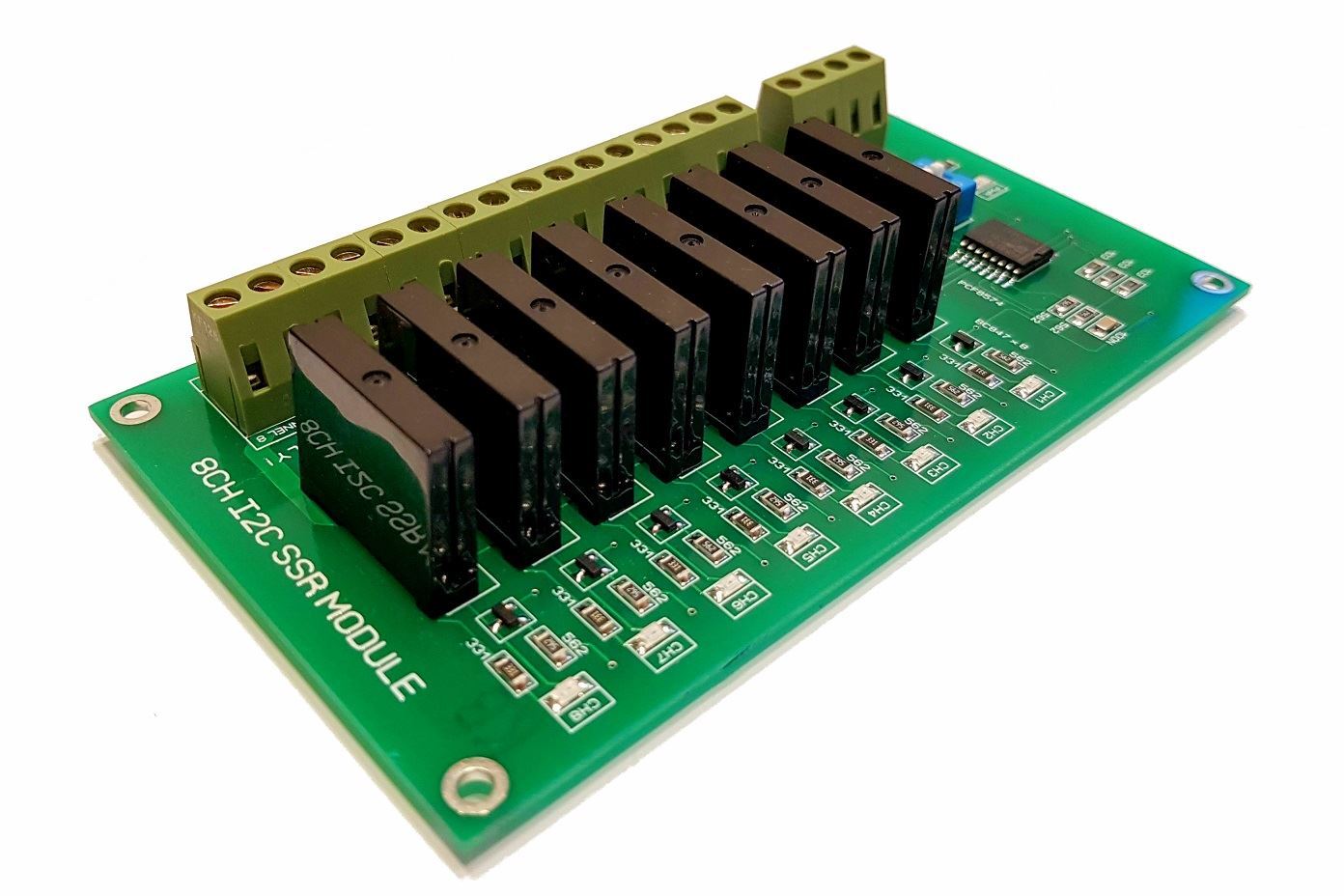

8 Channel I2C Solid State Relay Module
Device specification:
- PCB board dimension 72mm x 130mm
- Compatible with DIN rail plastic holder
- Full optoisolation from high voltage
- Operation DC voltage – 3.3V and 5.0V
- Maximum current @5.0V – 120mA
- AC controlling voltage range 100…240VAC
- AC voltage frequency range 50…60Hz
- Minimum AC current per channel – 30mA
- Maximum AC current per channel – 2A
- Comes with different slave address 0x27 or 0x3F
- Changeable I2C device slave address
- Can be connected up to 8 devices to the one i2c line bus
- LEDs indicators for each SSR relay channel
Sample Code Arduino
https://drive.google.com/open?id=1A_Q4w63aakYkiHeH4DwJJgzK2kF9GO-v
