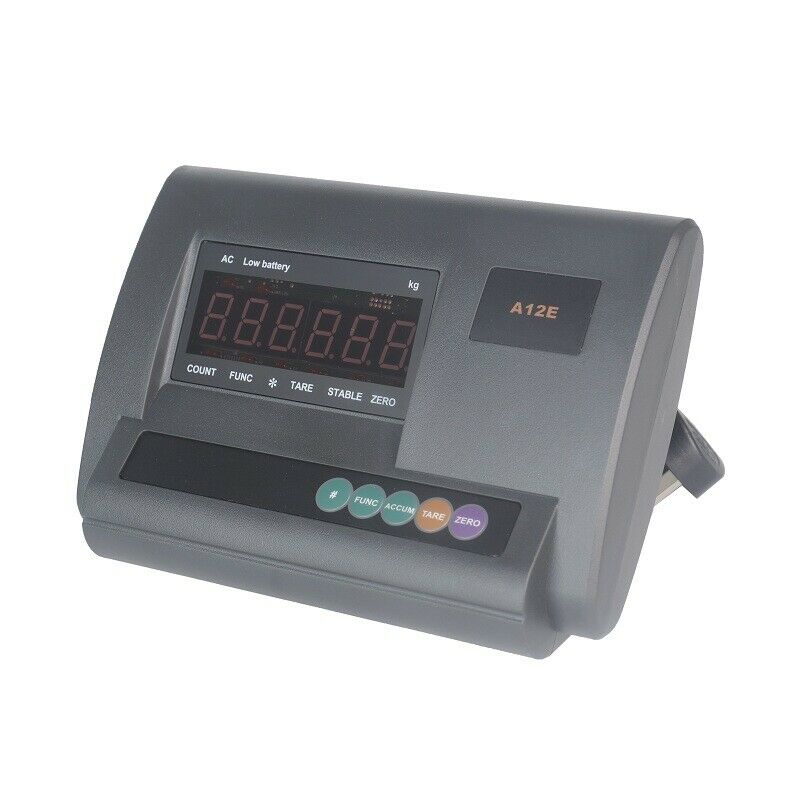

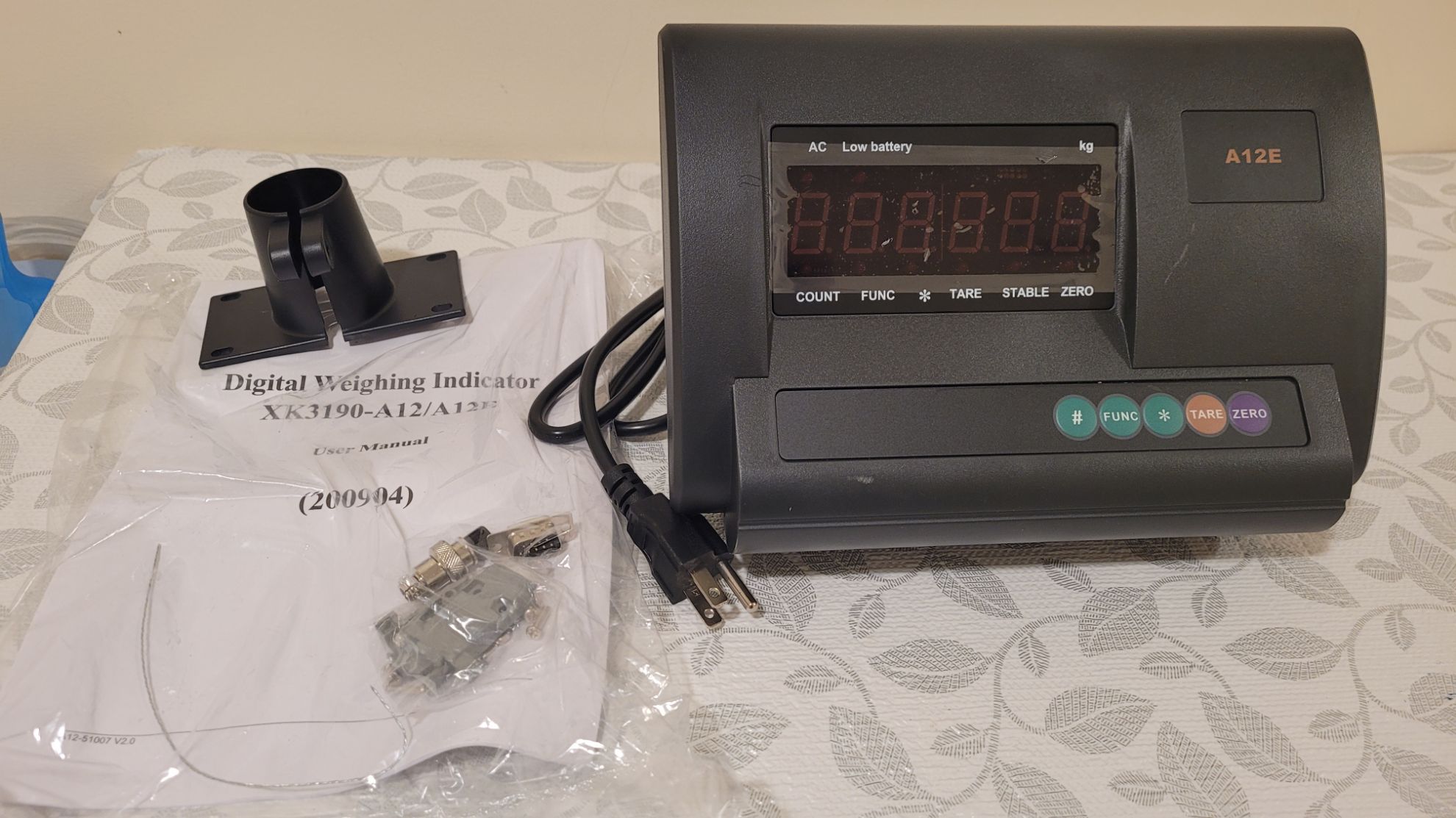

NTEP A12E Yaohua Platform Scale Weighing Indicator
Features and Application:
High precision A/D conversion with readability 1/30000
Call and display inner code to replace weight observing and analysis tolerance
Special digital filtering technology to strengthen anti-vibration ability
Able to set up zero-tracking range, zero(auto/manual) range
Able to set up digital filter intensity, range and stable time
With counting function (unit weight data save protection in case of power off)
Selectable backlight mode
AC/DC power supply, with built-in rechargeable 6V/4AH battery
Alarm for low battery and auto power off at low battery

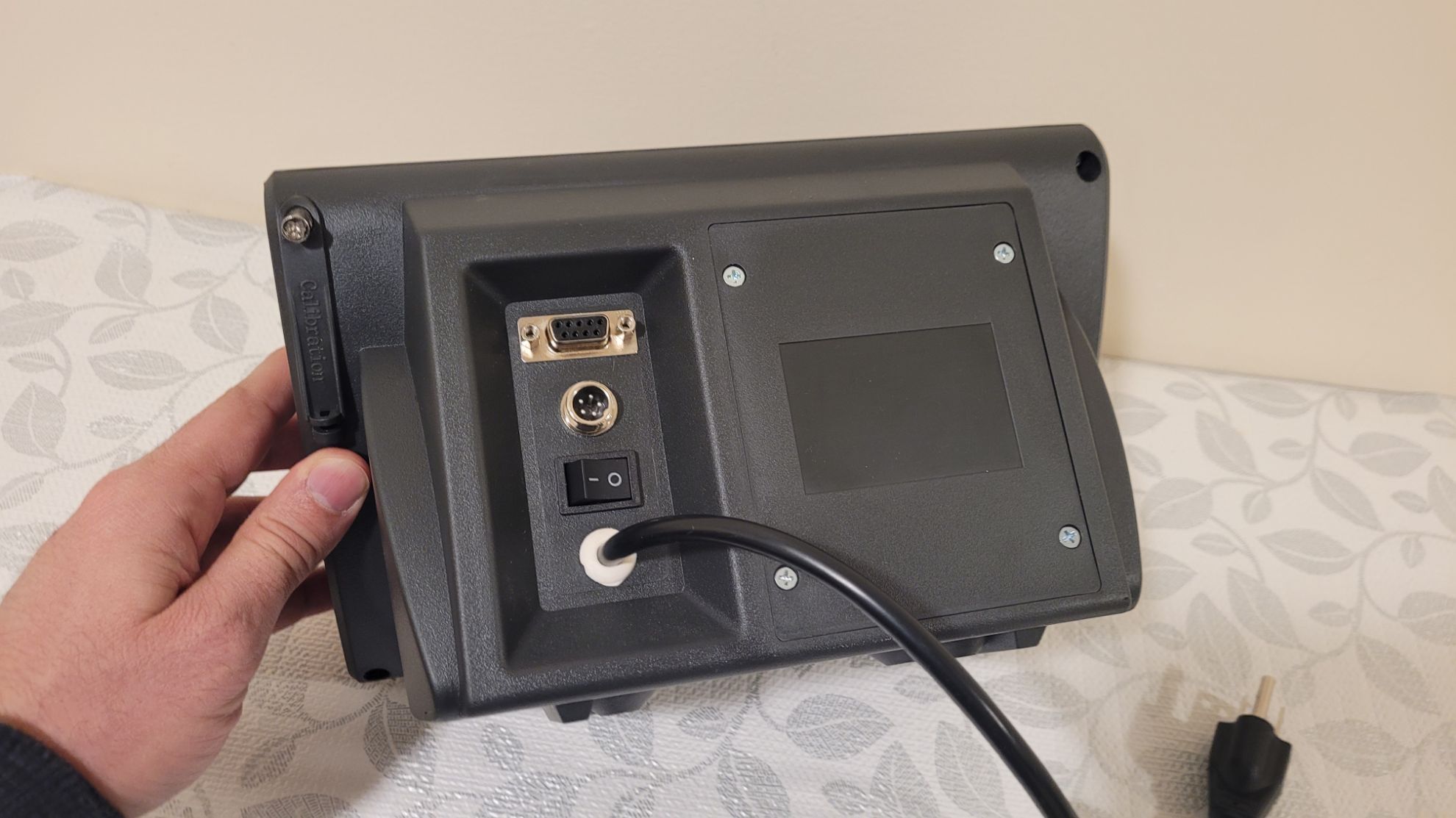

Optional of RS232 interface with selectable baud rate and communication method
Optional of scoreboard interface sending by 20mA current loop
Nonstandard Function( Optional, please inform sales staff if need):
KG/LB switch function

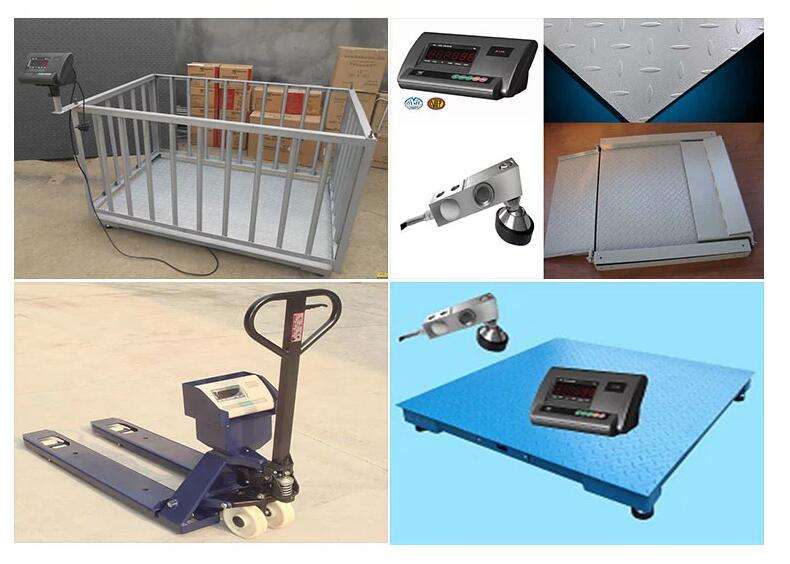

Auto calculating average function ( For livestock scale)
Two fixed-value outputs function ( For low speed weighing)
Technical Parameter:
A/D conversion mehod
∑-Δ
A/D conversion speed
10 times/sec.
Max. A/D conversion bits
20
Input signal range -10mV~15mV
Input sensitivity
≥1 μV/e
Load cell excitation
DC 5V; I≤150mA
Max. connection number of load cell
4 at 350 ohm
Load cell connection mode
6 wire
Verified counts
3000
Max. external counts
30000
Max. internal resolution
300000
Division
1/2/5/10/20/50 optional

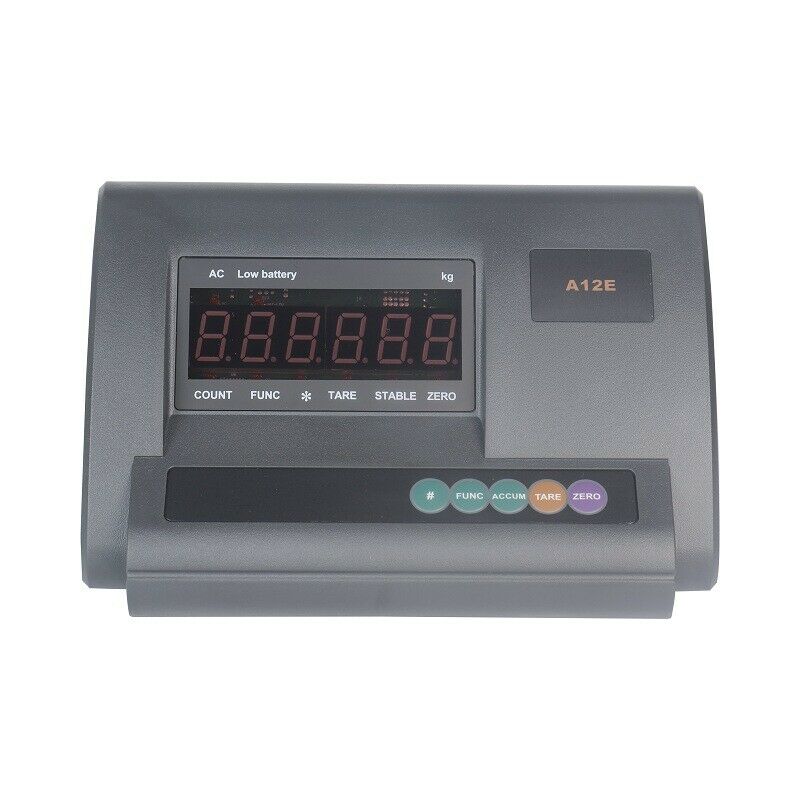

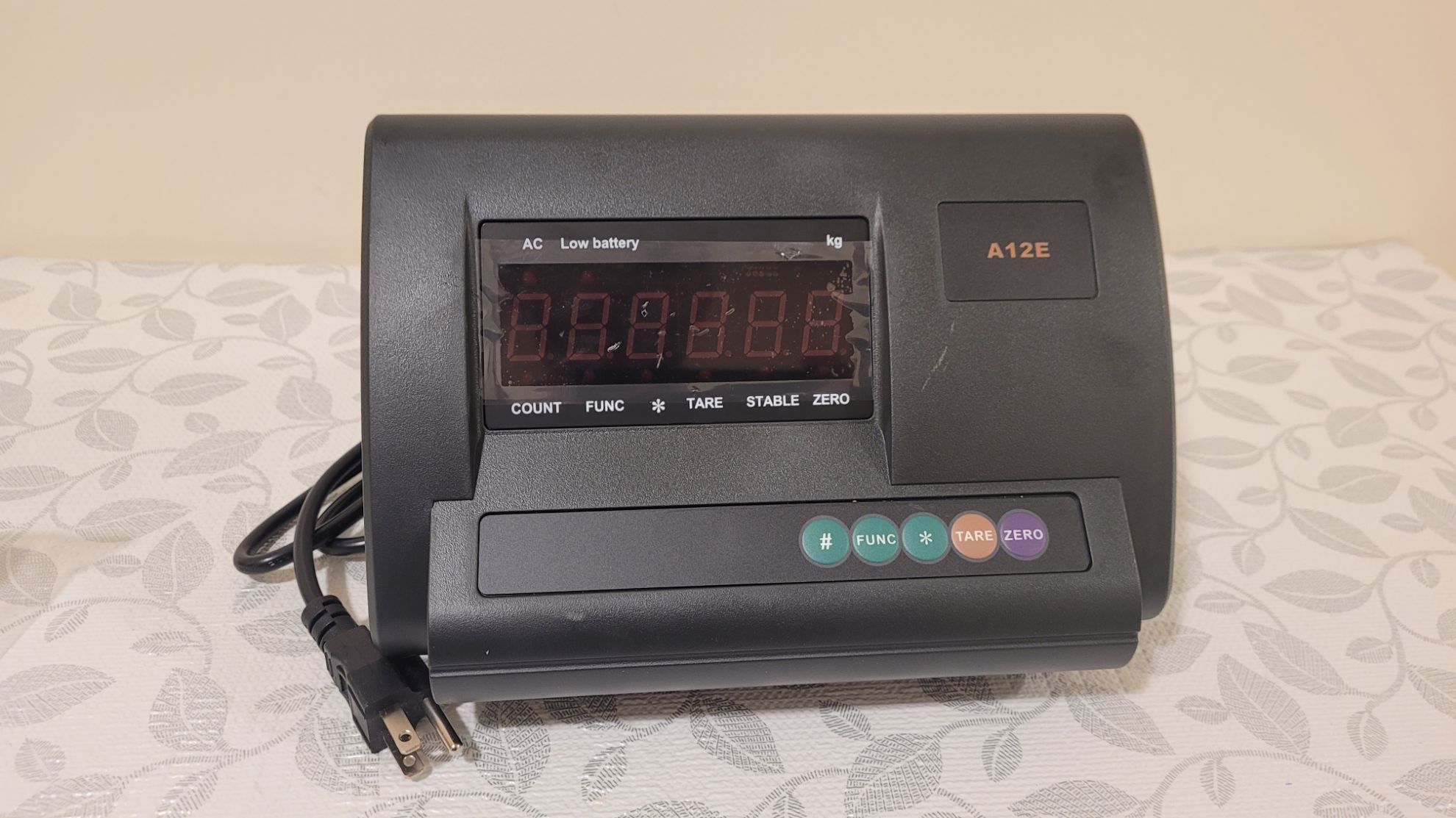

Display(XK3190-A12E)
6 bits LED, 6 status indications
Display range:
-2000~150000(d=10)
Transmission distance
Current loop≤2000 meters
Baud rate seletable
1200/2400/4800/9600
Power supply
AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery
