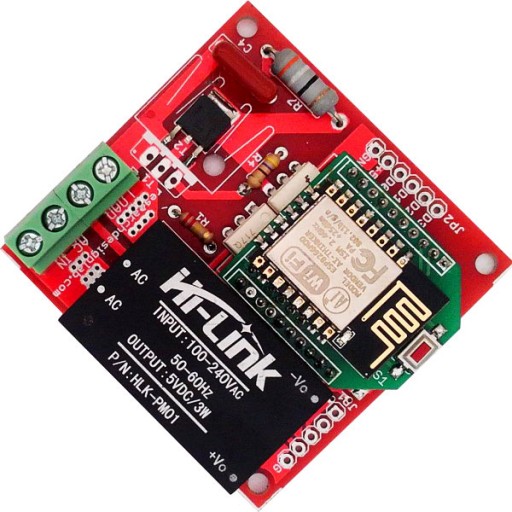

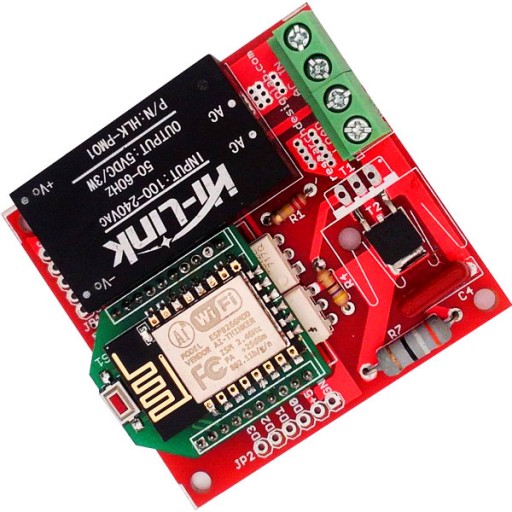

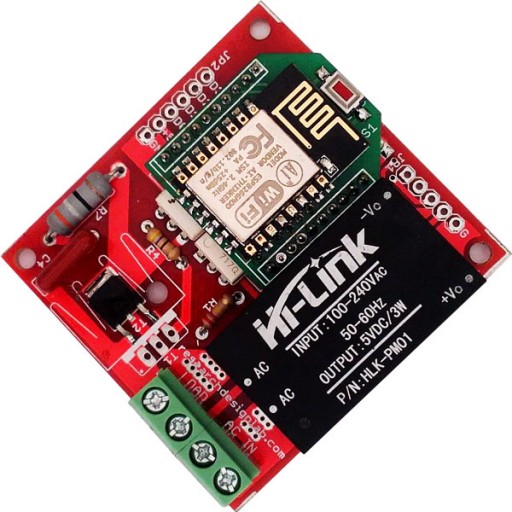

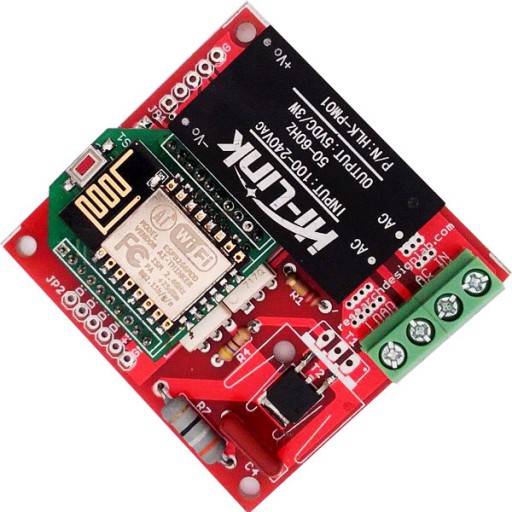

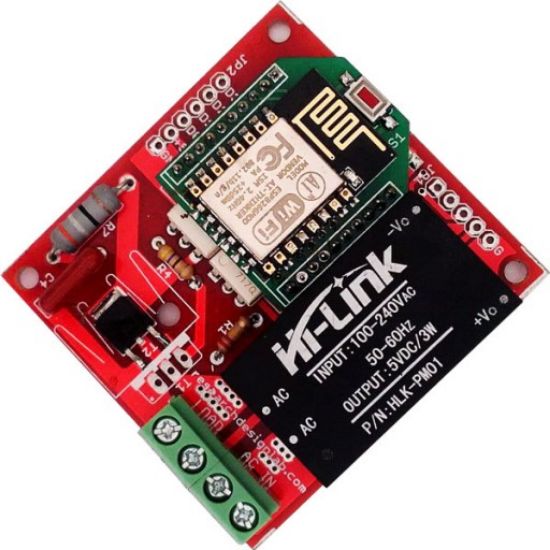

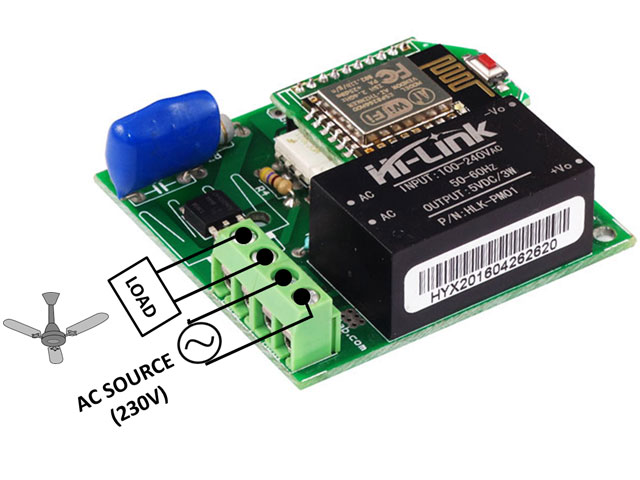

Features:
On/Off and dimming control.
Snubber circuit enable.
Accurate firing angle control and smooth dimming.
Operating Voltage 5V DC.
Isolated power section from the input.
0-100% dimming.

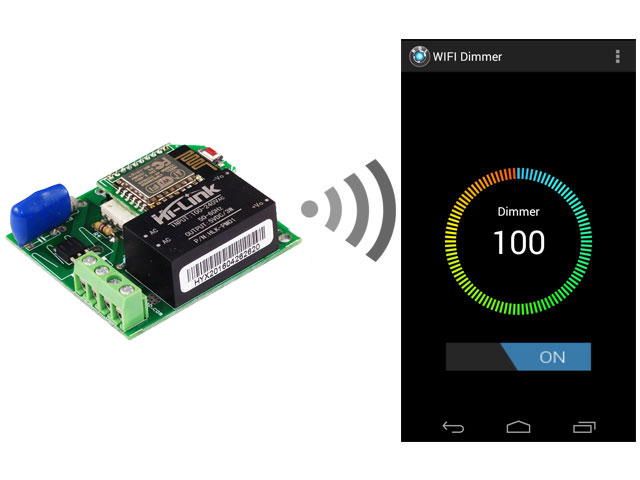

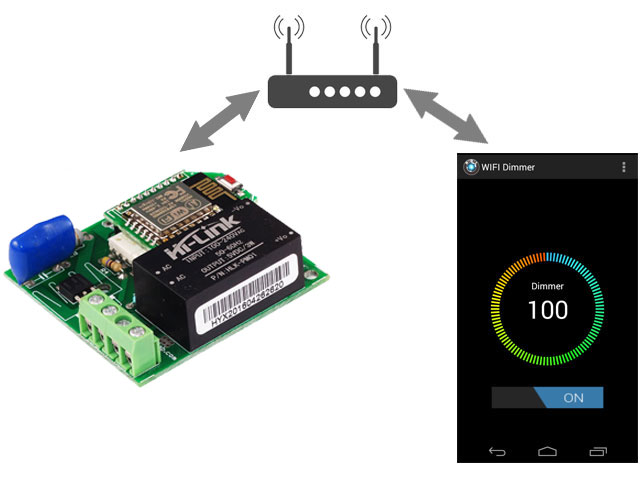

WiFi Enabled.
Inbuilt power supply.
High quality PCB FR4 Grade with FPT Certified.
ESP8266 ESP-12 Features:
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated MAC/baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines.
BT136S-600 Features:
Gate Trigger Current Max (QI), Igt: 70mA
Gate Trigger Voltage Max Vgt: 1.5V
Holding Current Max Ih: 15mA
No. of Pins: 3
On State RMS Current IT(rms): 4A
Operating Temperature Max: 125°C
Peak Gate Power: 5W
Peak Non Rep Surge Current Itsm 50Hz: 25A
Peak Repetitive Off-State Voltage, Vdrm: 600V
Triac Case Style: SOT-428.
AC-DC Isolated Power Supply Module Features:
Ultra thin,ultra small.
All voltage input (AC:90~264V).
Low ripple and low noise.
Output overload and short circuit protection.
High efficiency, high power density.
The product is designed to meet the requirements of EMC and safety test.
Low power consumption,environmental protection, no load loss>0.1W.
Dimension: 34X20mm
