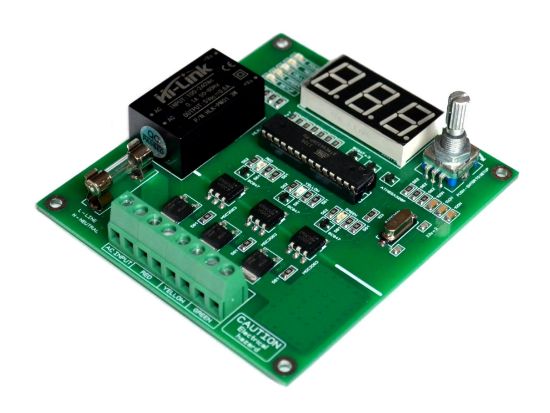

3 CH Channel Street Traffic Light Controller Sequencer Board Board 100…240VAC / 50HZ and 60HZ 3 Channel Red Green Yellow RYG AC Light Control
Title:
SMD Manual Traffic Light Sequencer - AC Power, 37+ Sequences, 3 Seven-Segment Displays
Description:
Elevate your traffic light control with our SMD Manual Traffic Light Sequencer. This advanced sequencer offers 37+ sequences, including realistic traffic patterns, random modes, solid-on settings, and user-programmable sequences. Each mode allows you to customize durations for precise control.
Key Features:
Guaranteed compatibility with all LED and incandescent lights, including vintage traffic signals.
Wide voltage range: 80VAC to 240VAC.
Powerful performance: Up to 550 Watts (5 Amps) per channel for extended operation at 110V/240V AC, peaking at 880W (8 Amps).
Automatic mode memory in case of power loss.
Easy programming with pushbutton control (encoder).
3 seven-segment displays for straightforward programming.
Onboard LEDs indicate current output states for easy setup.
Versatile: Can be used as a 3-channel, 2-channel, or 1-channel sequencer based on your application.
Ideal for full-sized incandescent traffic lights and low-power LED bulbs down to 1 watt.
Solid-state technology ensures quiet and reliable operation.
Efficient Power:
This sequencer operates on standard AC voltage, sharing the same input with your AC load or lights, eliminating the need for extra connections. The logic section is energy-efficient and spike-protected, using only about 1/10 watt.
Sequences and Timing:
Choose from 37+ built-in sequences easily with the rotary switch—no need to power off to change programs. Sequence memory is retained even when the power is off. Explore realistic traffic modes, random sequences, and entertaining chaser sequences, adjusting timing from 1 second to 255 seconds.
Quick and Easy Installation:
Installation is a breeze with included instructions.
Specifications:
PCB board dimensions: 90mm x 100mm
PCB Board Material: 1.6mm FR-4, with solder mask & silk screen.
Supply Voltage: 100VAC to 240VAC (50Hz and 60Hz).
Delay Range: 0 – 255 seconds for each color (RED, YELLOW, and GREEN), mode-dependent.
Input Connector: 14-26AWG, 250VAC @ 16A screw terminals.
Output Connectors: 14-26AWG, 250VAC @ 16A screw terminals.
Safety fuse: 8A.
Unit Weight: 100 grams.
Enhance your traffic light control with precision and versatility using our SMD Manual Traffic Light Sequencer. Explore a wide range of sequences and timings while enjoying easy installation and compatibility with all types of lights. Upgrade your traffic management today!
mode setups
Traffic Light MODES - https://drive.google.com/file/d/1f2cSafiU1aX-B6SuOmPqWbmb12v3fbe7/view?usp=sharing
Manual https://drive.google.com/file/d/1-hMuwWOexBzG-SuafYUd-xE4zNC0sw8K/view?usp=sharing
Device specification - https://drive.google.com/open?id=1lxucukoVGUECSFD1mO5lTn-1vh3cfgFp
Device setup - https://drive.google.com/open?id=1aqU01qnqoNf6T7nf6FIvItSyykdt4-GH
See Device Video in action - https://www.youtube.com/watch?v=0FNbJk5y5dM
