Remote 3CH Traffic Light Signal Controller/Sequencer 110V-220VAC 50-60HZ Quite
You can control your board via 433Mhz Remote Controller.
Title:
Advanced Traffic Light Controller with Remote - 150m Range, 3 Channels, 8 Modes
Description:
Upgrade your traffic management with our Advanced Traffic Light Controller, equipped with a remote control for effortless operation. This controller boasts an impressive range of up to 150 meters, making it perfect for various applications. Let's dive into its key features:
Outstanding Features:
Remote Control:
Manage your traffic lights conveniently with the included remote control.
Impressive Range:
This controller can effectively manage lights within a 150-meter radius, providing extensive coverage.
3 Channels:
With three channels at your disposal, you have greater control over your traffic lights.
Versatile Modes:
Discover eight different modes to suit your needs.
• Auto Mode: Allows continuous operation without time limits.
• Manual Control: Take control of the lights manually.
• Pedestrian Modes: Pedestrian safety with dedicated modes.
Each mode comes with unique features to enhance your traffic management experience.

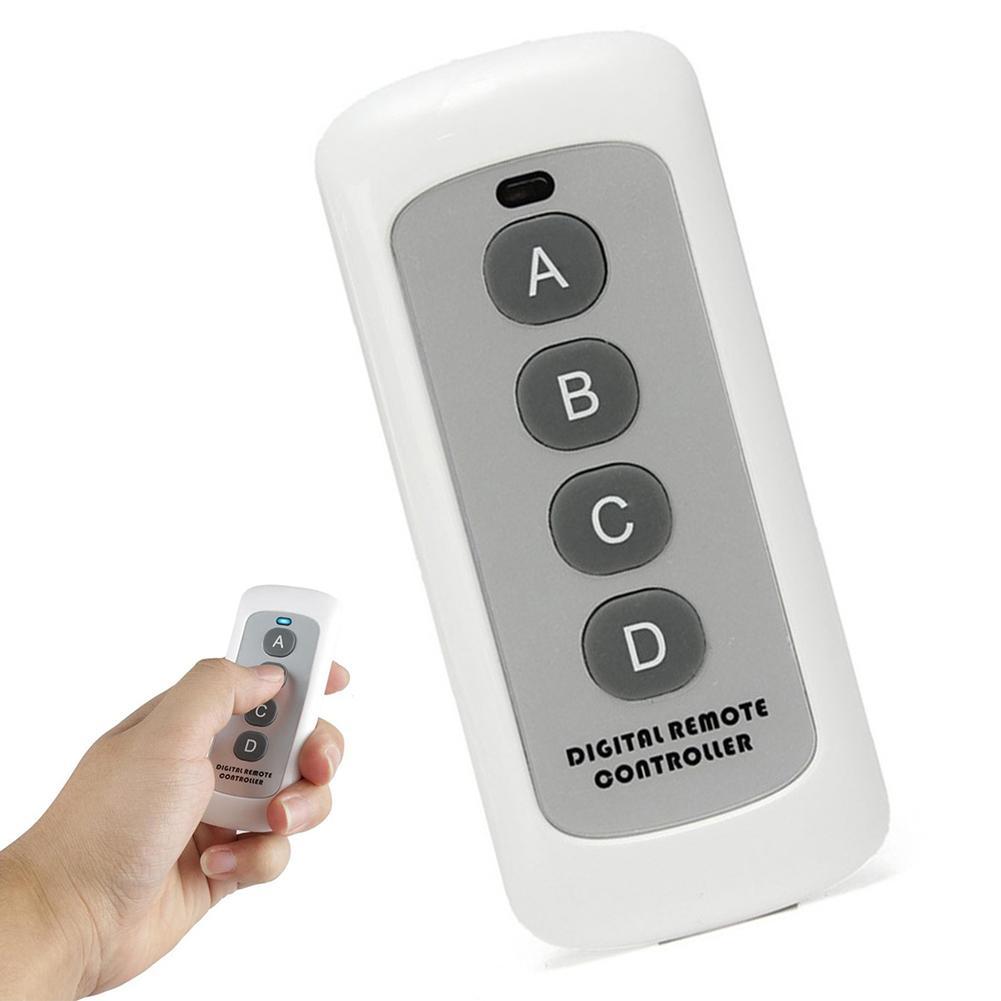

Intuitive Remote Controller:
The included remote controller features four buttons, each with specific functions depending on the selected mode. These functions include:
• Turn individual lights on/off or control all lights at once.
• Enter programming mode.
• Adjust light duration with 1-second increments.
• Save changes.
• Activate flashing with a double-click.
• Long-press to turn off all lights.
• Select pedestrian mode.
Efficient Power:
This device requires standard AC voltage to operate, and it conveniently shares the same input with your AC load or lights. A single AC input powers both the controller board and your lights, eliminating the need for additional connections.
Additional Information:
• AC Voltage Compatibility: 100V-240V, 50/60Hz
• Noise-Free Operation
• Modes: Manual, Auto, Pedestrian
• Expandable: Use multiple boards with a single remote or multiple remotes with one controller (package includes one remote and one controller)
Programming Modes:
For modes 3, 4, 5, 6, and 7, perform a long press on the "C" button on the remote control to turn the device on/off.
Teaching Mode:
Modes 3, 4, and 5 offer adjustable color durations via the remote controller. To activate programming mode:
1. Select one of the three modes.
2. Press and hold button "D" until the Red/Yellow/Green LEDs flash rapidly three times, indicating programming mode.
3. Default color duration is 1 second.
4. Use buttons "A" to increase and "B" to decrease duration by 1 second.
5. Press and hold button "C" to reset durations to 1 second.
6. To save changes, press and hold button "D" until LEDs flash slowly three times.
Technical Specifications:
• PCB Board Dimensions: 80mm x 90mm x 30mm (green color)
• PCB Board Material: 1.6mm FR-4 with solder mask & silk screen
• Input and Output Connectors: 14-26AWG, 250VAC @ 16A screw terminals
• Safety Fuse: 8A
• Universal Input Voltage Range: 100-240VAC, 50-60Hz, 6W max per module
• Fast Response: <50ms
• Operating Temperature: -40°C to +70°C
• Remote Transmitter: 433MHz frequency, 150 meters range (open space)
• Product Size: 92mm x 40mm x 15mm
• Operating Load Voltage: AC
• Output load current: 5Amps long-term, 8Amps peak @110VAC/240VAC
• 5 Auto Modes with different time/speed options
• 3 Manual Options with different speed settings
• Bonus: Pedestrian options via the remote controller
Upgrade your traffic management system with our Advanced Traffic Light Controller. Enjoy the convenience of remote control, extensive range, and versatile modes. Order now and experience efficient traffic management like never before.
Remote Controller might me with Antenna or without Antenna. We will send it depends on our stock,
Package Includes
1 Battery
1 Remote Controller
1 Traffic Light Controller.
