About this item

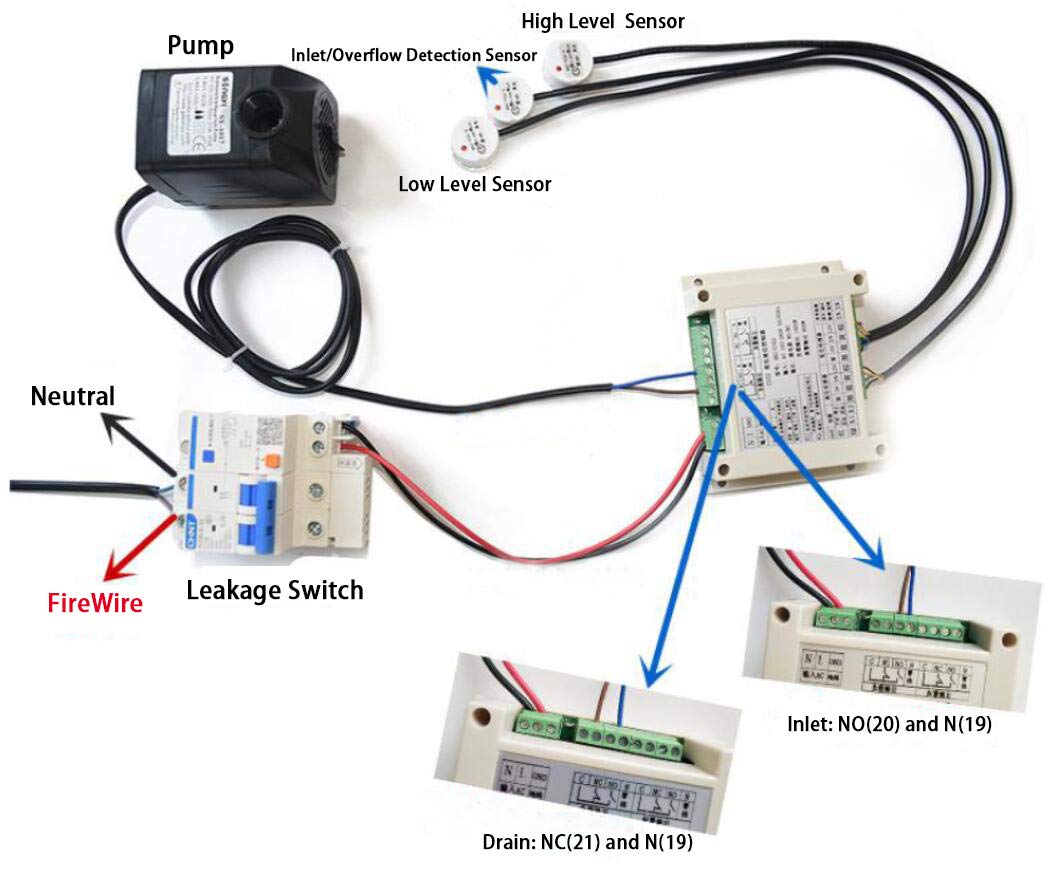

The installation is simple and convenient, can be screwed and installed can also be installed on the electrical box track. You can use the controller to either to fill or empty a tank. You can use it to keep your whole house humidifier filled or use this unit to transfer air conditioning condensation water to a larger collection vessel used to water your yard.
Strong protection, with pump idling protection;
Control diversification, the pump can be controlled manually or automatically. Excellent device for pumping in, or pumping out.
Relay dry node output, can be applied to a variety of load control;
To adjust sensitivity you need to remove the back of the sensor and turn the very small screw, clockwise decrease sensitivity, counter clockwise to increase the sensitivity. AC95 ~ 265V wide voltage power supply
Product details
Package Dimensions : 5.35 x 4.53 x 2.05 inches; 10.86 Ounces
Date First Available : September 15, 2021
Manufacturer : Electronic Nuts
ASIN : B09GCBVKSS
Best Sellers Rank: #544,337 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement)
#307 in Water Detectors & Alarms
Product Description

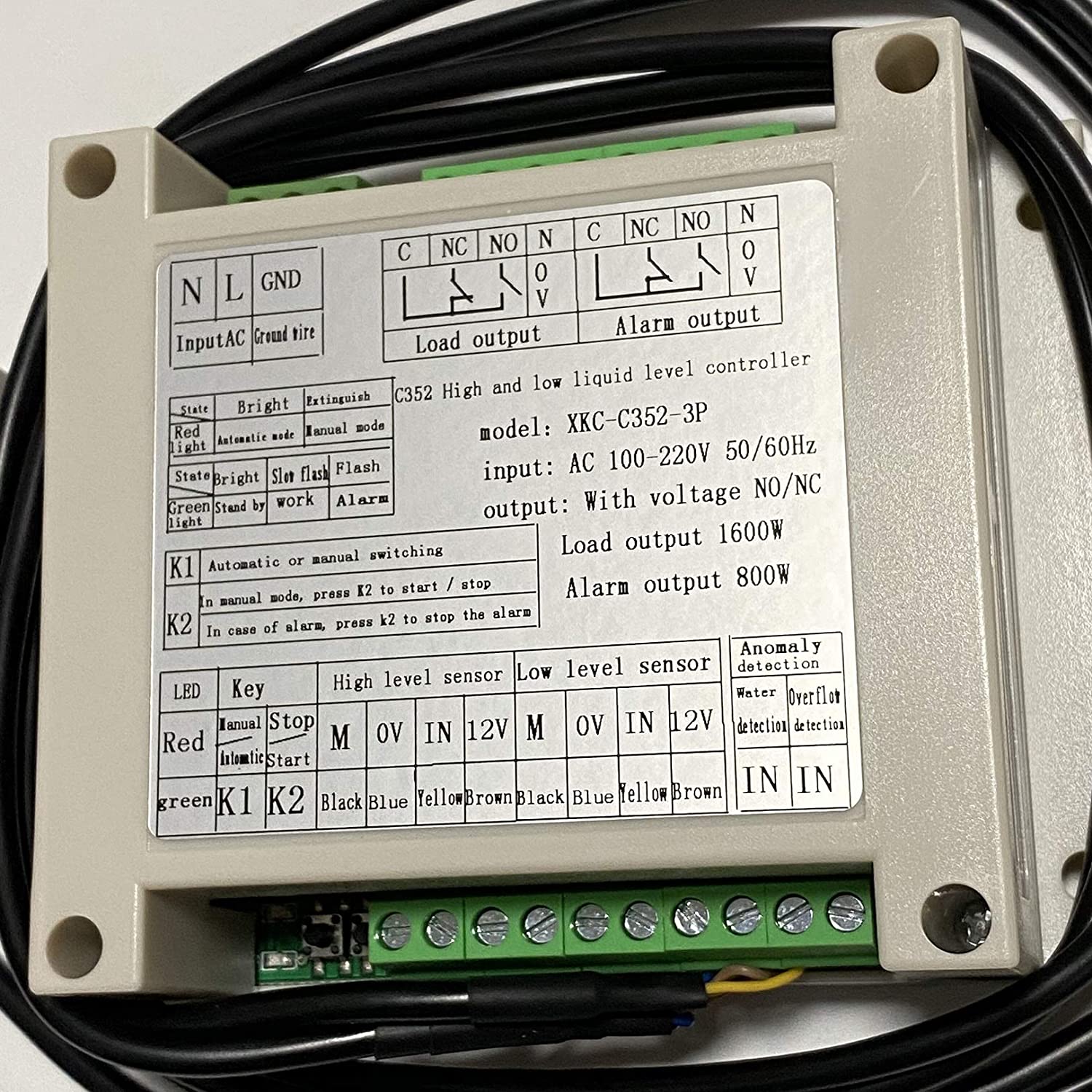

Feature 1.AC 95~265V Wide voltage supply 2.Relay dry joint contact output for multiple load control 3.Diversified control, water pump can be controlled manually or automatically 4.Easy to install, screw positioning can also be installed on the electric box rail Function 1. Automatic water level control: The water level is lower than the induction probe, the water pump is automatically started, the water level rises to a high level, and the water pump is automatically turned off. 2. Pumping timeout protection. Continuous automatic pumping for more than 5 hours, automatic pump stop. The work indicator flashes quickly, you can press the K2 button to stop, or the automatic delay to resume standby. 3. Manual automatic switching: The controller will enter the automatic mode by default, press the K1 key to switch the working mode, the red light will be in the automatic mode, and the red light will be in the manual mode. 4. Non-contact induction probe: It adopts non-contact capacitive sensing technology and special induction control chip design. The probe has durability, strong anti-interference ability, sensitive sensitivity, no contact with liquid, corrosion resistance, safety, environmental protection and pollution-free. Input voltage AC100V-220V, 50 / 60Hz Working voltage DC12V Working current Working current ≤ 110 mA, static current consumption ≤ 20mA Load power 1.6KW or less (overload or for three-phase pumps need to install AC contactor) Alarm Output 800W (resistive load) NO/NC output Input signal:1)Low sensing signal input; High sensing signal input; Pump idling detection signal input; Sensor probe voltage: DC 12V; Operating temperature:-10 ~ 75 ℃; Dimensions:115 * 90 * 40
