BOXED MINI CAR TIMER SWITCH AIRBAG LIGHT RELAY 1 TO 10 SEC KIT DELAY OFF 12V 1A
Ultra compact Box - 40mm/27mm/21mm
Timer for airbag light up to 10w
Item description
Time relay with accuracy from 1 to 10 seconds.
Dimensions:
- length - 25 mm
- width 28 mm
- height 17 mm
LED indication for operation
Maximum allowable load control 12V/1A; Can be extended with heat sink to 1.5A
Wired with 10 cm wires.

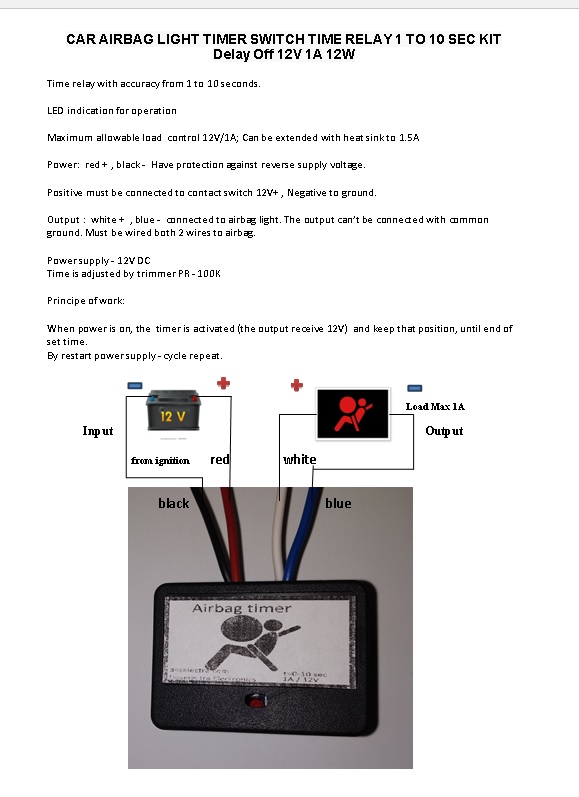

Input : black 12V - red 12V+ Power: + , - Have protection against reverse supply voltage.
Output: white + blue -
Power supply - 12V DC
Time is adjusted by trimmer PR - 100K
Principe of work:
When power is on, the timer is activated (the output receive 12V) and keep that position, until end of set time.
When you have issue with airbag, then the light on the dashboard is on. The timer fixes only the light to go on with turn on the start switch and then goes off after few seconds.
By restart power supply - cycle repeat.
Package contents:
1. Time Relay
See below link for manual
https://drive.google.com/file/d/1CRXsj4FQ1hEUnF0LACs9q40Xq2gucWmV/view?usp=sharing
