The Bluetooth SSR switch ON / OFF and Dimming can be controlled from remotely using android app or supporting bluetooth enabled devices.This switch can be used control light , FAN, power socket , Triac dimming enabled LED's and any other remote ON / OFF or dimming application.
Features:
On/Off and dimming control.
Snubber circuit enable.
Accurate firing angle control and smooth dimming.
Operating Voltage 5V DC.
Isolated power section from the input.
0-100% dimming.
BT24 Bluetooth Enabled.
Inbuilt Power supply.
High quality PCB FR4 Grade with FPT Certified.
BT24 Bluetooth features
Bluetooth qualified module
Bluetooth v3.0
Class 2 radio
Range up to 60m LOS
400Kbps data throughput
128-bit encryption security
BT24 Hardware configuration
Cortex-M3 microprocessor up to 72MHz
64K/128K/256K bytes Flash memory
8K/16K/48K bytes RAM memory
UART, up to 921K baud
SPI and I2C interfaces
13 general purpose I/O
PCM audio interface
4 x12-bit A/D inputs
1 LPO input.
BT24 Embedded software
Amp’edUP Bluetooth stack (SPP, IAP, A2DP, HID, HFP, OBEX)
Support Apple iOS/MFI Bluetooth devices
abSerial, AT command set
BlueGuard, data encryption software (Optional)
Mobile application software (Optional).
Note: We do not support IOS application.
BT136S-600 Features:
Gate Trigger Current Max (QI), Igt: 70mA
Gate Trigger Voltage Max Vgt: 1.5V
Holding Current Max Ih: 15mA
No. of Pins: 3
On State RMS Current IT(rms): 4A
Operating Temperature Max: 125°C
Peak Gate Power: 5W
Peak Non Rep Surge Current Itsm 50Hz: 25A
Peak Repetitive Off-State Voltage, Vdrm: 600V
Triac Case Style: SOT-428.
Sample Android SDK Screenshot is in images
sample Android SDK will be given along with the product.
Package Contains :

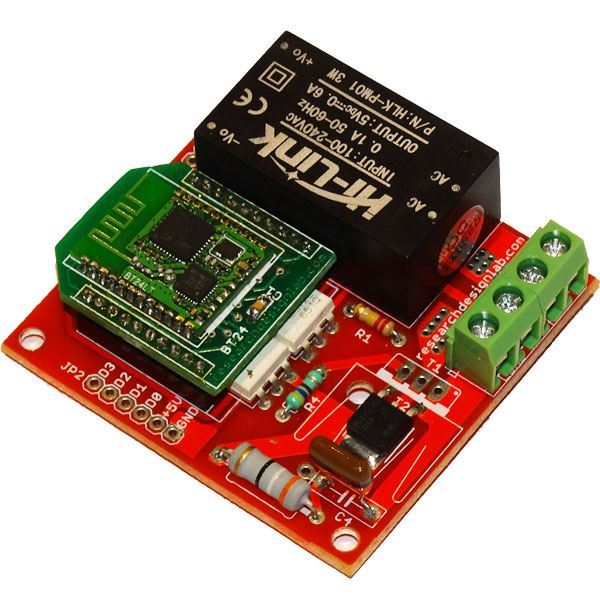

BT24 Bluetooth SSR 230V 4A SMD Dimmer ON OFF Switch
Documents:
Datasheet (BT136S-600)
Datasheet (BT24 Bluetooth Module)
