3 CH Channel Street Traffic Light Controller Sequencer Board, Arduino Based programmable Board 100…240VAC / 50HZ and 60HZ 3 Channel RED Green Yellow RYG AC Light Control
Why Arduino BASED?
Because you can do unlimited/infinitive light sequencing , timing with Arduino. See below videos. for more information.
CAUTION:This device requires basic ARDUINO knowledge.
Phase-Voltage Compatible for Worldwide
100V 110V…240VAC / 50HZ and 60HZ
Traffic Light Controller
Traffic Signal Controller
Traffic Light sequencer
Traffic Light Changer
Arduino Based
Main Features:
Full optoisolation from AC line Wide input AC voltage range 100…240VAC / 50HZ and 60HZ
Min load 5W and max 500W per channel.Independent outputs channels for operating LEDs or incandescent lamps
UNLIMTED Lighting option becuase of ARDUINO enviroment. AC OUTPUT
BLUETOOTH WI-FI :Output RX-TX pins for 5.0V and 3.3V logic levels. Specially made for easy Bluetooth, WI-FI or any other serial protocol modules
6 Channel traffic light controller is based on arduino uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip.
Built-in Indicator LEDs on board
It can be used as 3 Channel or 2 Channel for RAILROADS or 1 Channel depends on your application.

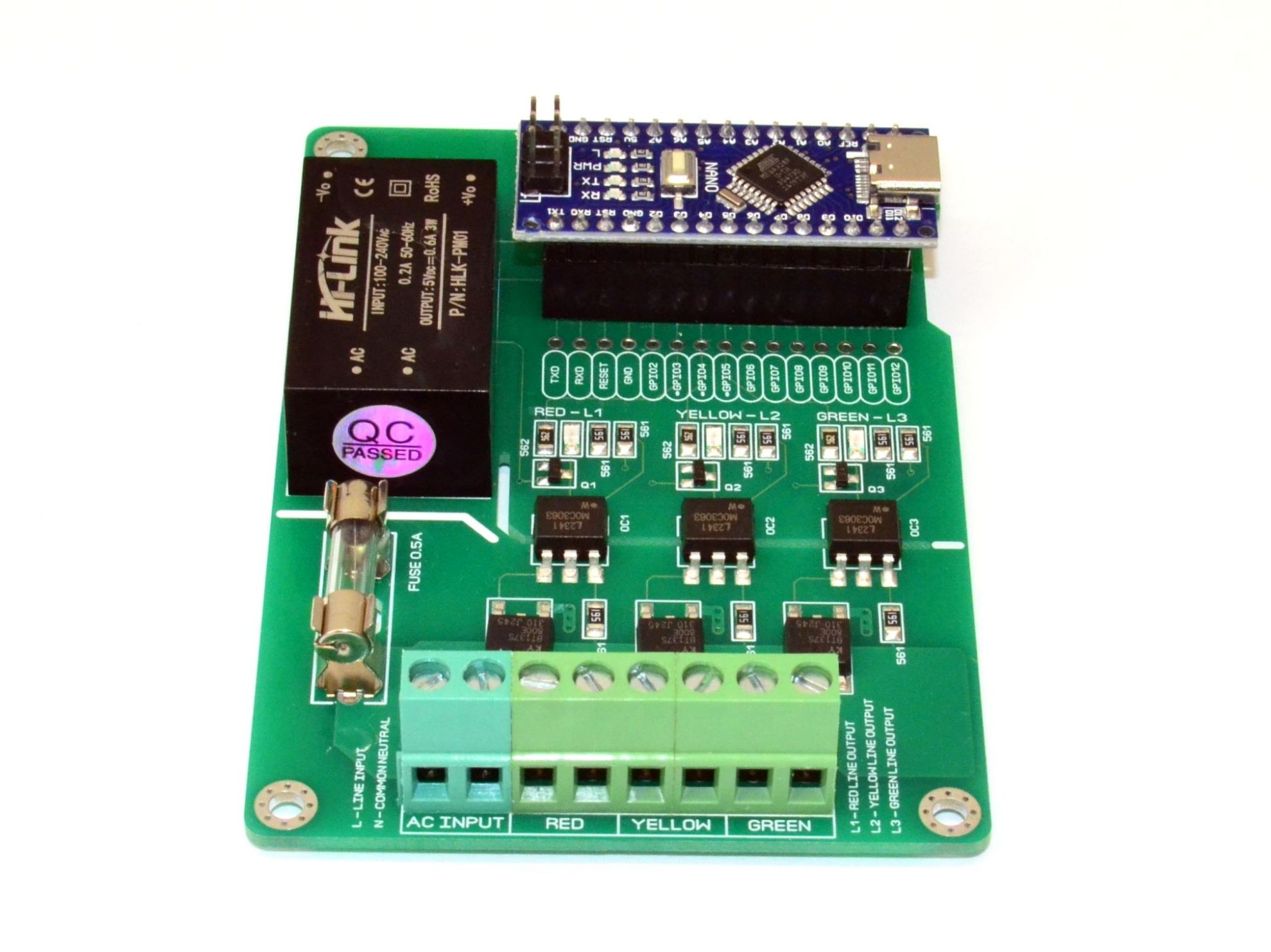

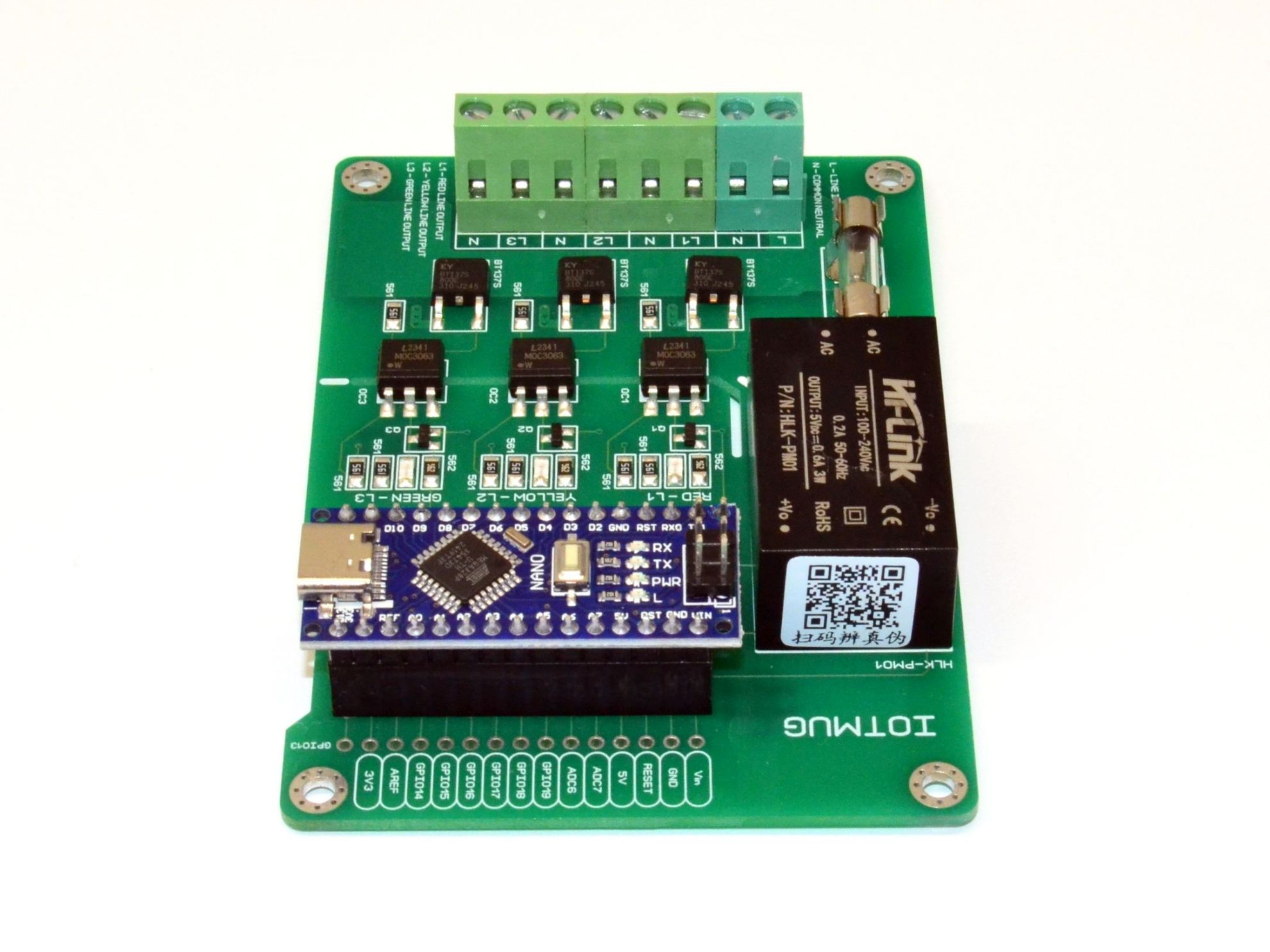

3CH Traffic Light Controller, Arduino based programmable board
Our 3 Channel Traffic Light Controller is the perfect solution for all of your traffic signal needs. Accepting standard 120VAC and 240VAC line voltage, this controller provides 500 Watts per channel and will drive full-sized LED and incandescent traffic lights (this includes all household incandescent and LED bulbs). This board is based with the latest solid state relays. Solid state relays technology means quiet, effortless switching for many years.
Now is very simple programming all traffic lights timings with arduino software. 3 channel traffic light controller is based on arduino uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip. It’s very help to user in programming all three lights timing. This board is already programmed with simple traffic lights demo code. Also, all others demo codes are provided below.
What need user to start working with this board?
1.Download and install CH340G USB driver
2.Download and install arduino programming software from webpage
3.Connect device to the computer via usb cable
4.And upload demo or user written sketches to the board
Device specification:
PCB board dimension – 70mm x 100mm , color green
PCB Board Material - 1.6 mm FR-4, with solder mask & silk screen
Input Connector - 14-26AWG, 250VAC @ 16A screw terminals
Output Connectors - 14-26AWG, 250VAC @ 16A screw terminals
Safety fuse - 8A
https://youtu.be/7hMyxDv9wyU
CH340G Diver installation
https://drive.google.com/open?id=1OrJOsWfEK_4dQDD5T9-04LrOq2ZWu8OC
Many Arduino Sample Code is here
https://drive.google.com/drive/folders/1L5FXpbV15tA1YiWeLMXzIEcGCkssnyF7
How to install demo code (get one of the demo code from above link) and use below manual
https://drive.google.com/open?id=1L_vngOVdCaDGYUuDo2wi3i_f1dyo_Qkg
Detailed Video 1 Here https://www.youtube.com/watch?v=LQR3SrBOcko
Detailed Video 2 Here https://youtu.be/lqjk7FRlzyM
