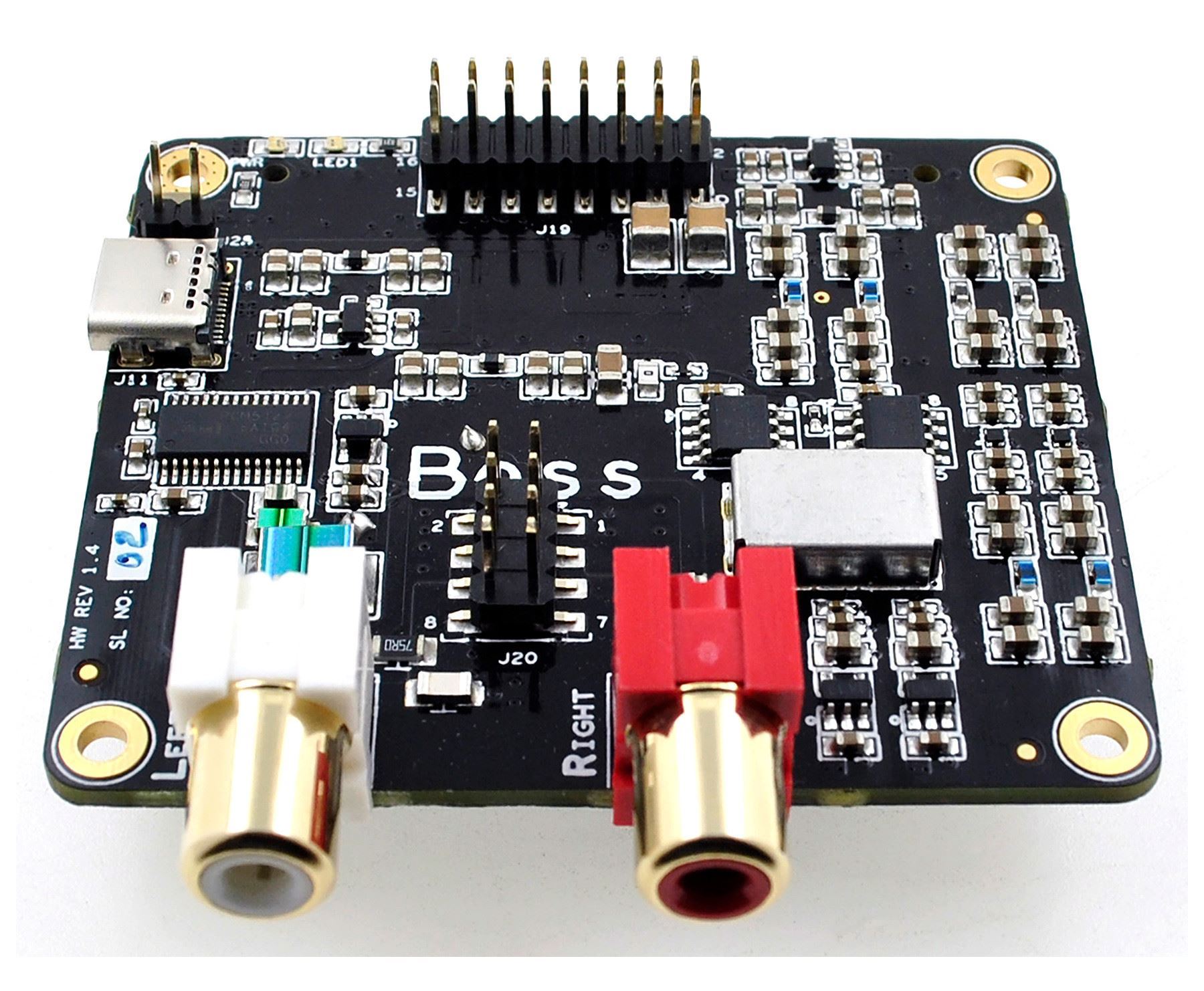

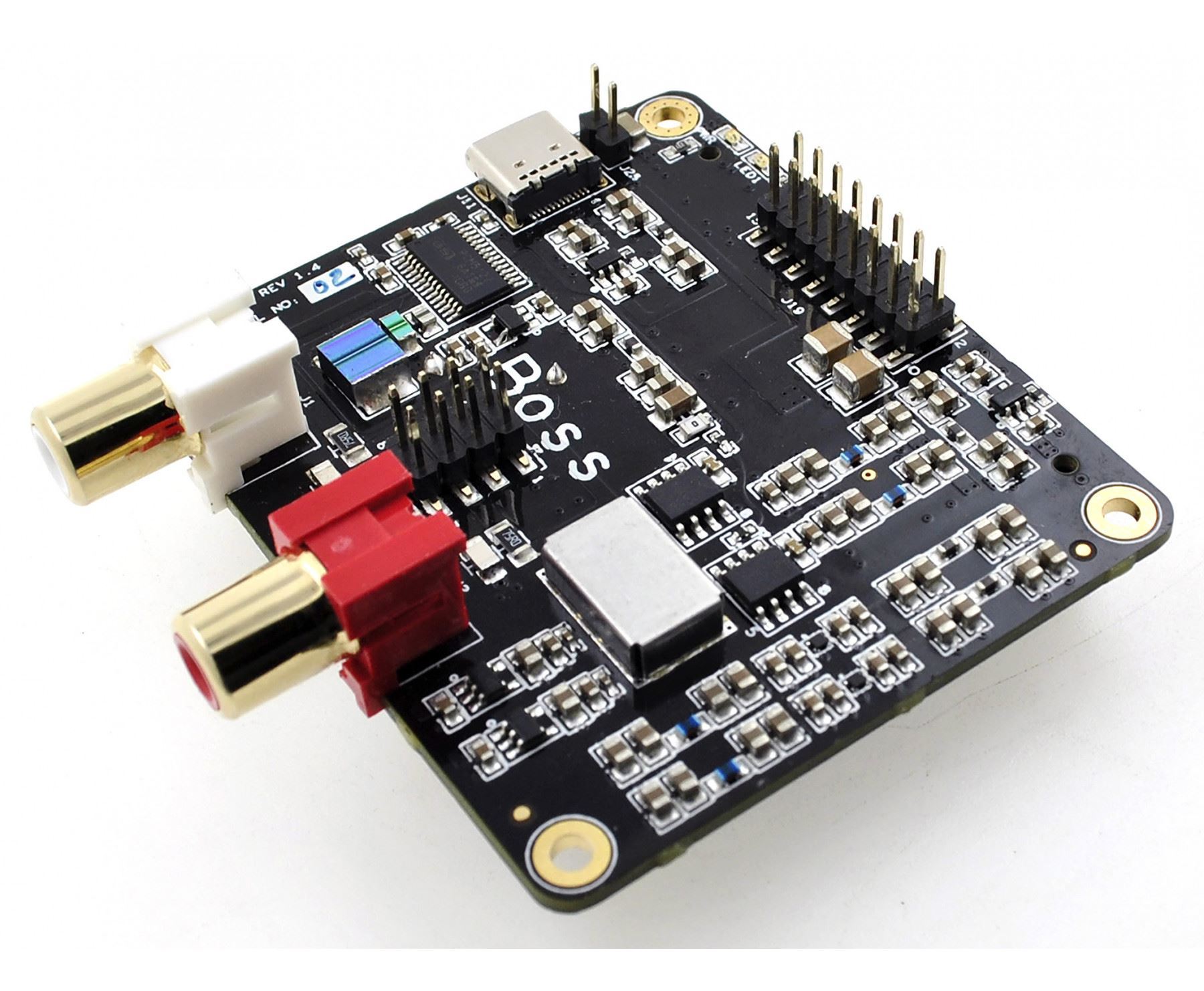

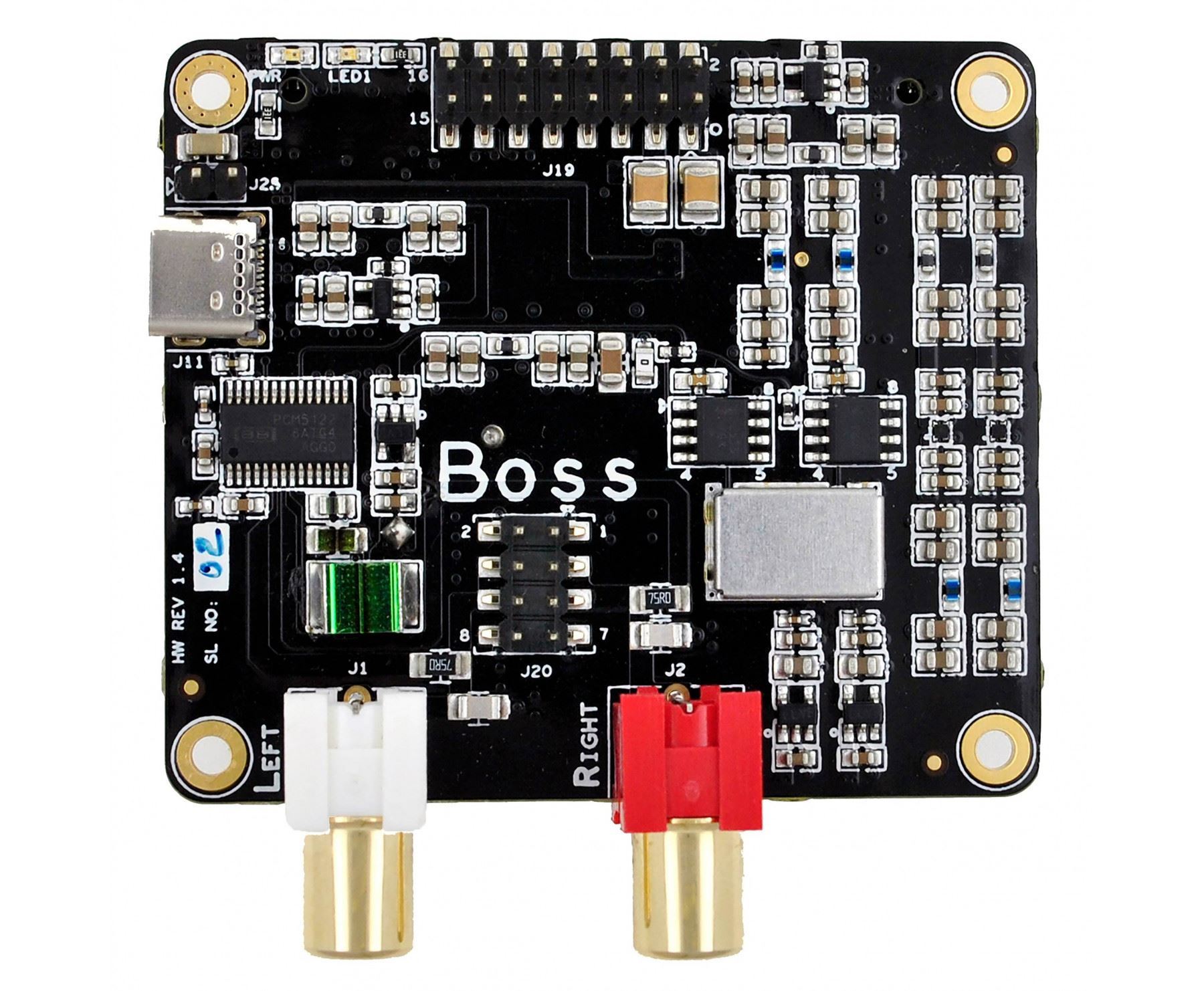

Allo BOSS I2S DAC V 1.2 ULTRA low phase noise Master DAC compatible only with RPI 2 and 3

We all live in a society obsessed by brand names and the latest gadget. Sometimes with reason sometimes with none.

The RPI has one major problem with audio. The clocks coming from CPU can only output one frequency clock perfect (very close), resulting in major problems with audio files sampled at 44Khz (and multiple). Too much jitter on i2s clocks. So we invented the Kali but there is a second way.

Enter the master mode for i2s. Instead of the RPI giving the clock on the line, the DAC itself sends the clocks and RPI sends the data (file to be played). Since we used 2 clocks the problem above disappears. Ours is not the first master DAC on the market, there are others... read on.

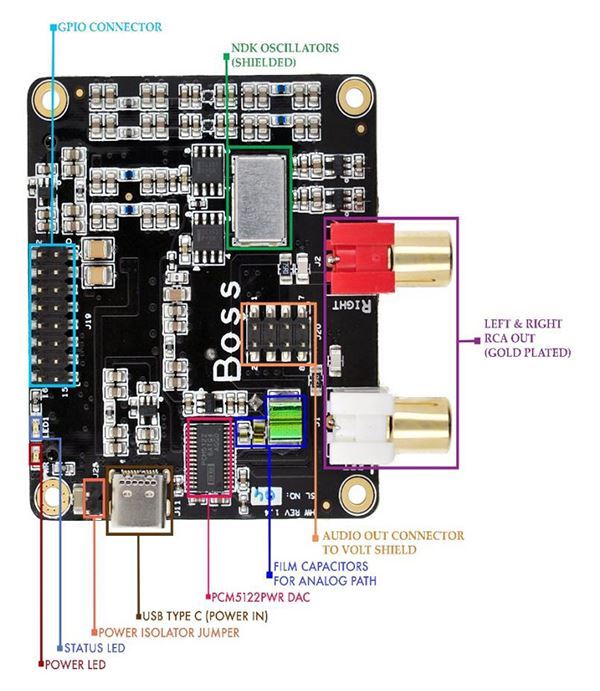

Our BOSS DAC is unique, because of the way we have implemented the design. First we separate the power on 3 channels and filter it: one for the digital side, the second for analog and third for the clocks themselves. Then we take the filtered power and use a second filter (LDOs) to further quiet the noise. Note that we use some of the best LDOs on the market (LT3042 from Linear). In addition, we use Japanese oscillators from NDK for a very low jitter clock - almost as good as famous Crystek.

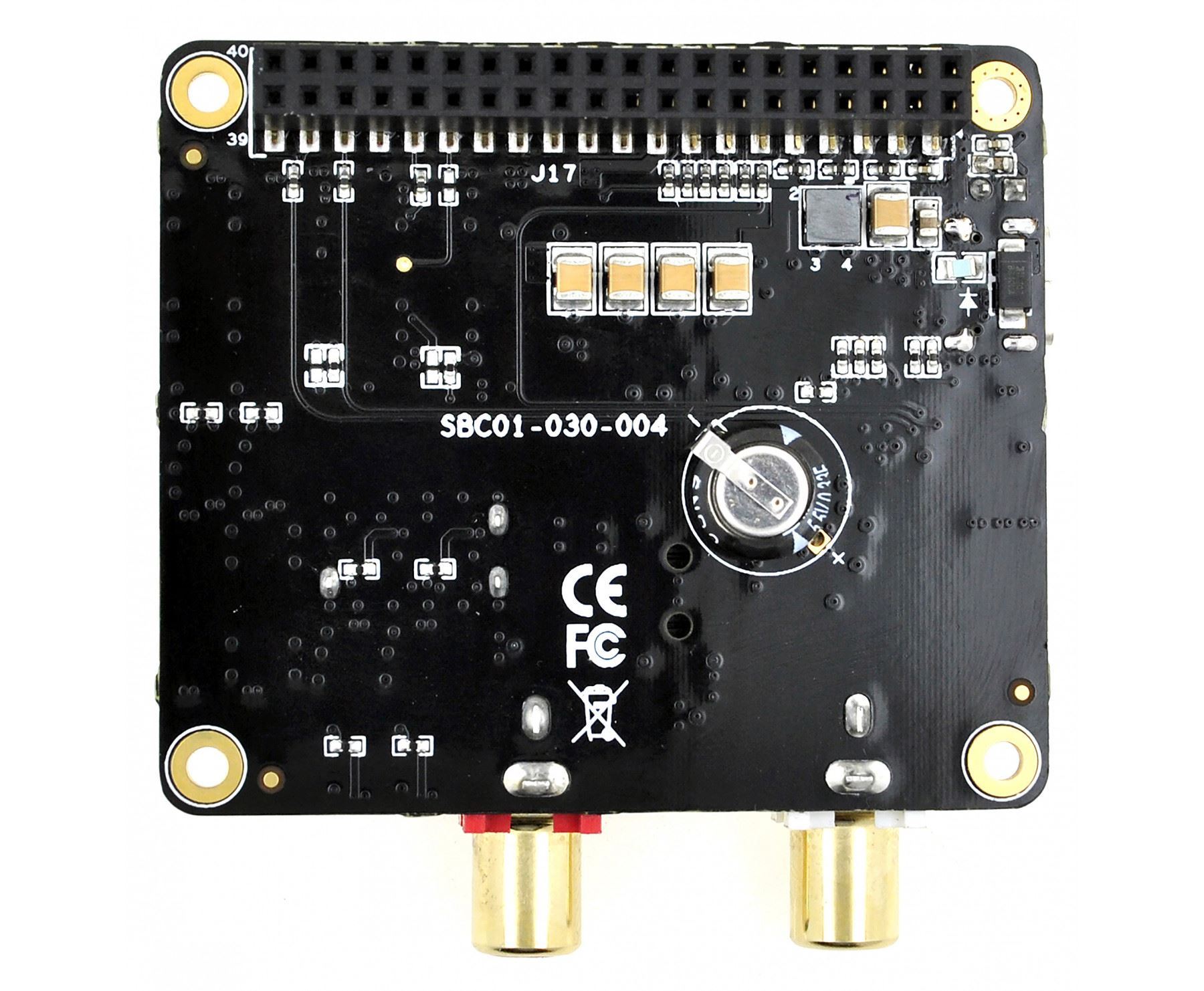

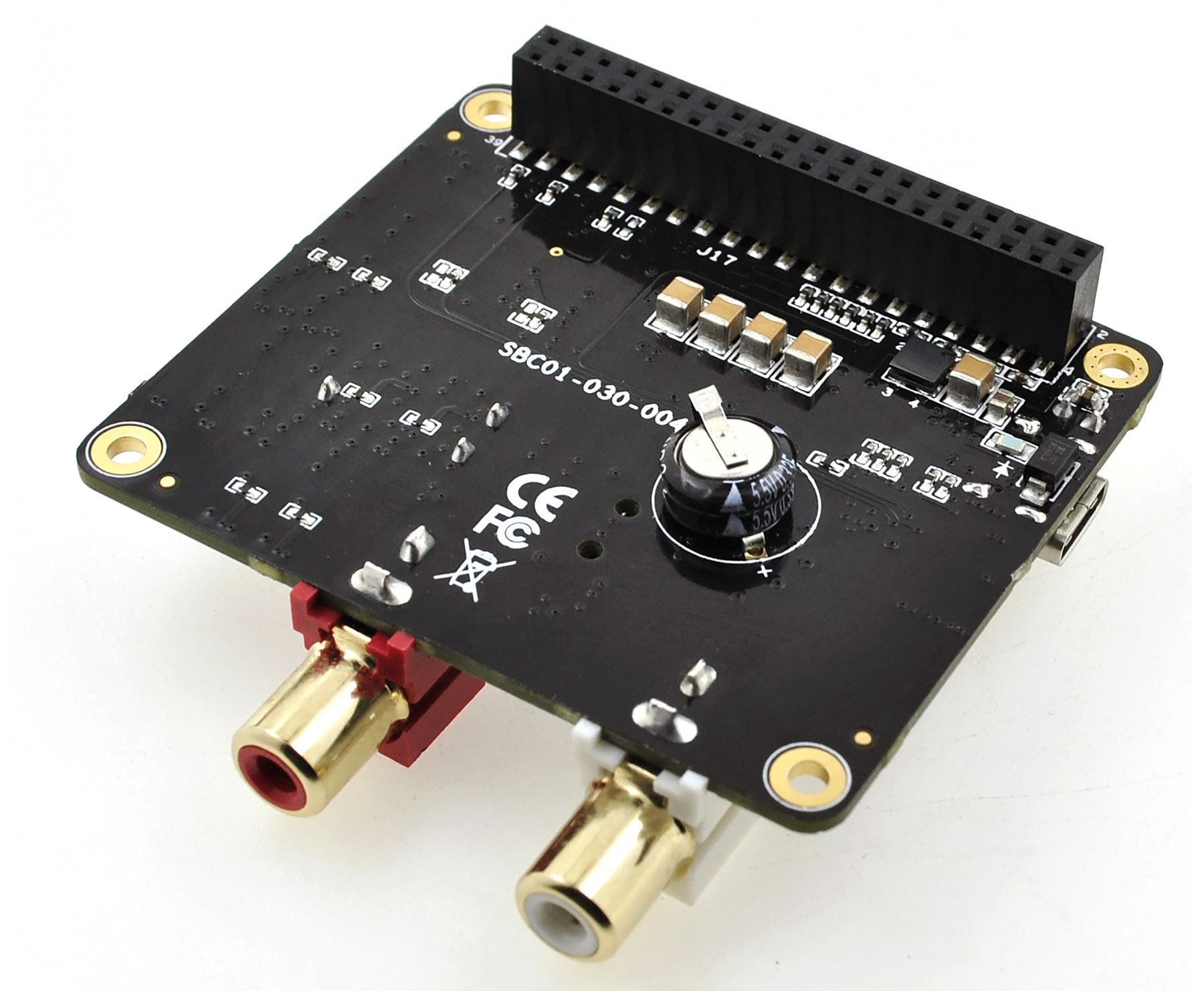

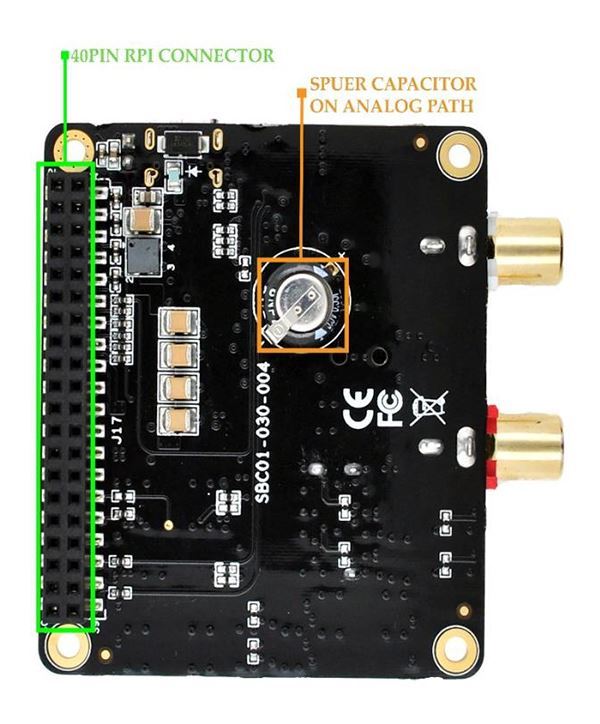

Finally, on the analog stage we are using a film capacitor (not ceramic) for a quiet DC to feed the TI IC (ceramic exhibit some piezo distortion, not what you want in analog stage). Not happy with this, we have added a supercapacitor for an extra kick when analog stage is asking (like deep bass).

What we have achieved, in our opinion, is the best analog implementation of the PCM5122 on the market, while at same time correcting the clock problem from RPI.

Yes we live in a society obsessed with the latest gadgets. The BOSS however, is a very solid implementation of the PCM IC that will give you the greatest bang for your buck. It will sound great no matter what you throw at it - this was our goal and promise to you.

Measured Jitter

Compatibility

Compatibility: RPI only. Isolator board (at 192Khz). Relay attenuator.
PSU: BOSS v1.2 can be powered independently after removing the jumper (see manual)
Not Working With: Sparky, Kali


If you wish to independently power your boss 1.2 thanks to the on board typeC USb, please purchase a DC to Type-C USB Adapter Cable.

Please also read power instructions carefully.

NEW Features

Latest generation ULTRA low phase noise NDK oscillators (SDA series)
Dedicated Type C USB connector to feed 5V 3A independently (see manual)
Optimized component layout
New film capacitors on analog stage
BOSS 1.2 is a Master DAC compatible only with RPI 2 and 3
Compatible with OSMC / Max2Play / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others + Roon Ready
Dedicated 384 kHz/32bit high-quality DAC PCM5122 for best sound quality
Audio output connectors: 2 x RCA (Left & Right ) & Allo Volt Amp header
HAT size
Sampling Frequency ranges from 8 kHz to 384 kHz
Ultra-low-noise voltage regulators & LPF for optimal audio performance
Integrated EEPROM for automatic configuration (with write-protection)
Automatically switching frequencies according to the input I2S signalsa

Please go to manufactuer web site for all below information.
FEATURES SUPPORT & DOWNLOADS
Support & Downloads

Download Product Info Sheet
BOSS Setup Manual
Boss 1.2 DAC Tech Manual
BOSS Hi-Fi DAC Block Diagram
Measured Jitter
BOSS Audio Precision Analysis Report
Preferred Setup Values For BOSS DAC
BOSS 1.2 Power Feeding Instructions
BOSS Player DietPi & ROON Setup
BOSS Driver on Github
Images, Drivers & Resources
DietPi OS + Allo GUI FAQ + Info

All the details on the Allo GUI image and what it offers
Getting started + FAQ

Question:

Hello friend!
I'm going to buy a bord to be compatible with this DAC, but i need to know is compatible. Do you know If this boards is compatible?
Rock64
Banana pi M3
Odroid xu4

Answer:

Hi This is teh answer from engineer.
RPI is the only one we recommend.

The rest we did not test
