8 Channel I2C Electromagnetic Relay Module for Arduino Raspberry 3.3V 5.0V 10A Peak LEDs Indicators for Each SSR Relay Channel

Main Features:

• LEDs indicators for each SSR relay channel
• Can be connected up to 8 devices to the one i2c line bus, Changeable I2C device slave address
• Comes with different slave address 0x27 or 0x3F
• Maximum current per relay – 10A peak
• AC controlling voltage range 100…240V AC, AC voltage frequency range 50…60Hz

8 Channel Electromagnetic Relay Module with I2C Interface
Device specification :
Board comes fully assembled!

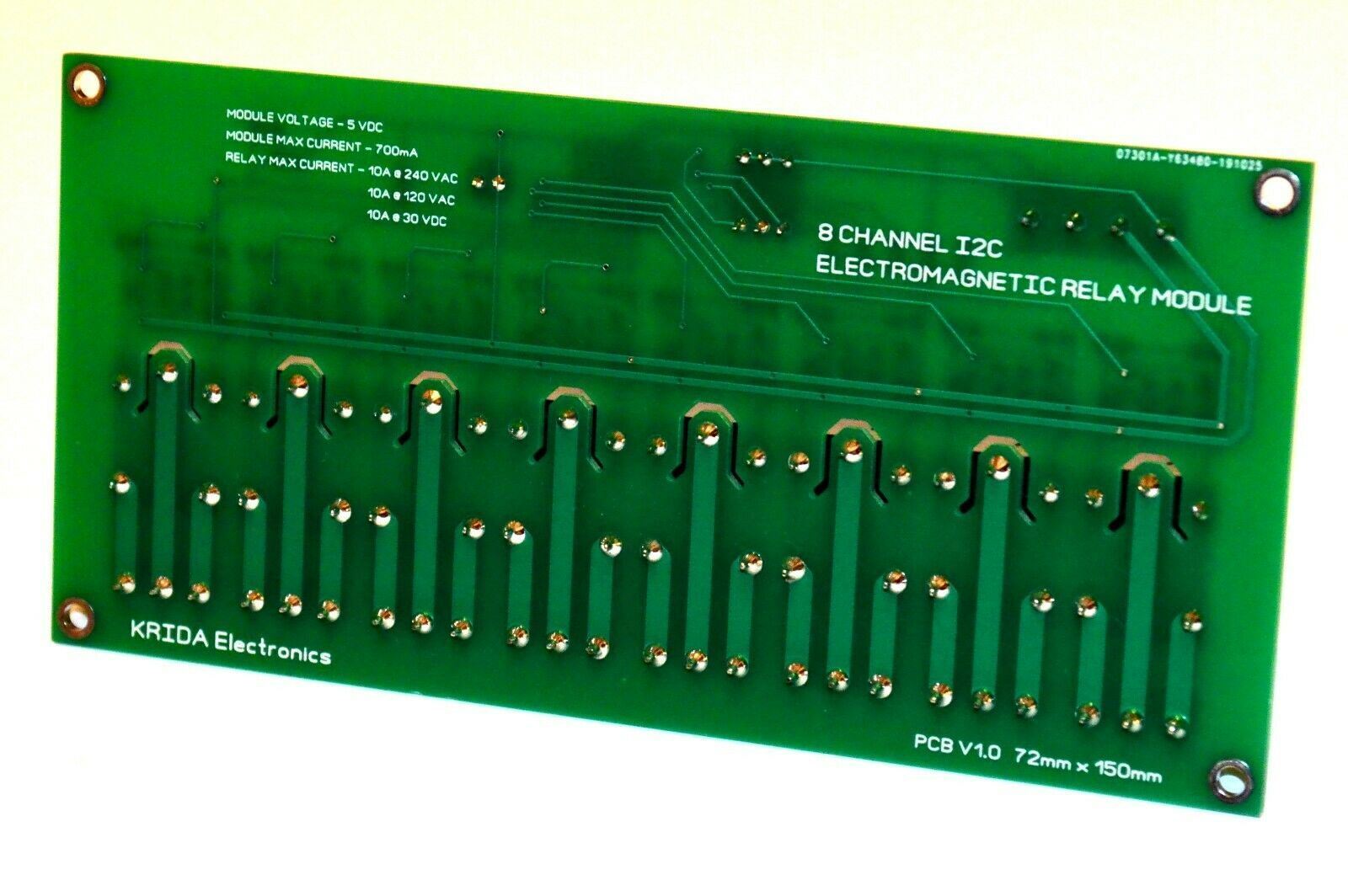

PCB board dimension 72mm x 150mm
Compatible with DIN rail plastic holder
Operation DC voltage – 3.3V and 5.0V
Maximum current @5.0V – 700mA
Maximum current per relay – 10A peak
LEDs indicators for each electromagnetic relay channel

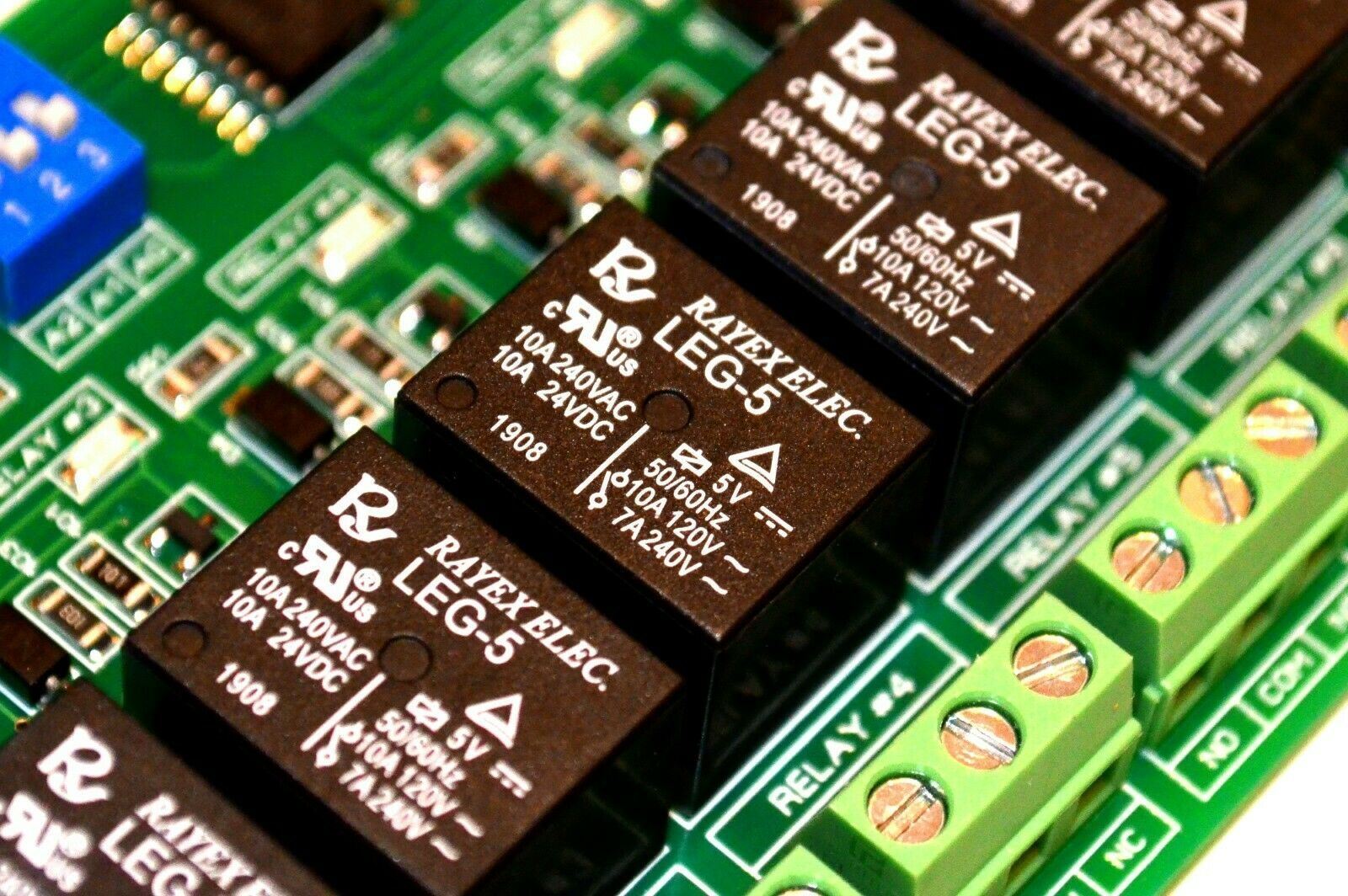

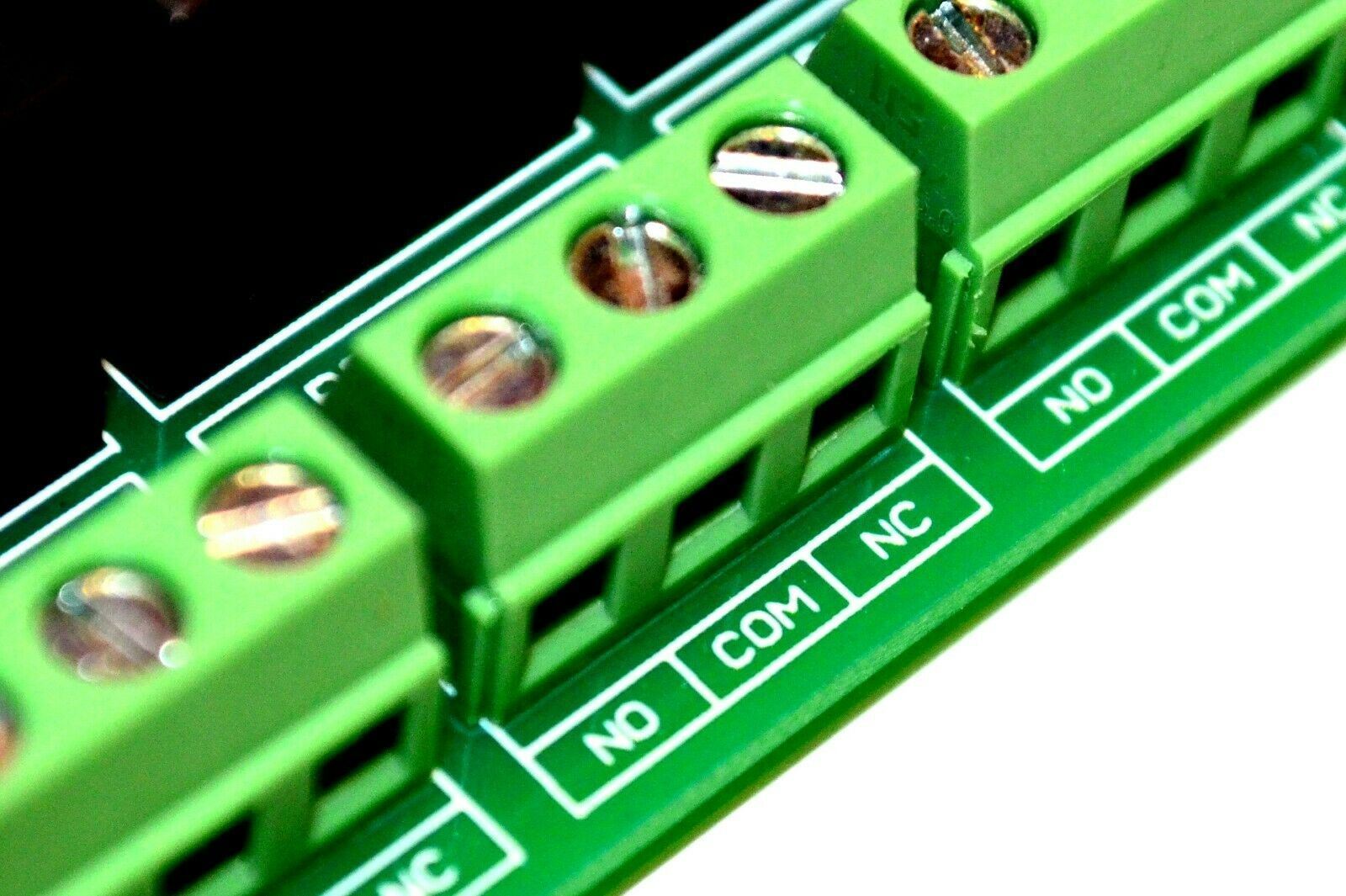

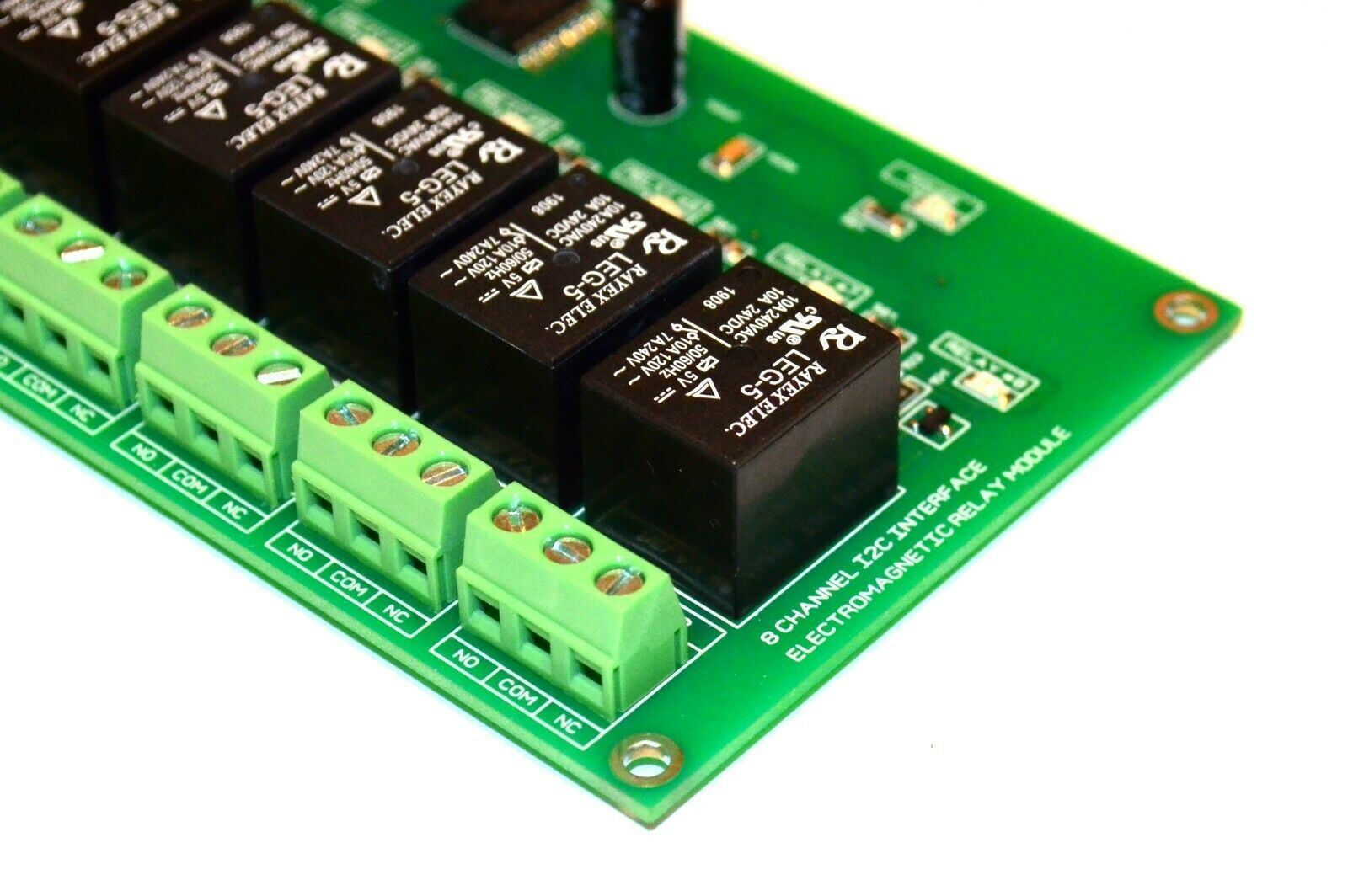

Relays with SPDT switch contacts: Normally Open, Common, Normally Closed
Relay contact resistance 100 milliohms max. ( initial value )
Relay insulation resistance 100 MOhm min. (DC 500V)
Relay operation time 8 ms max
Relay release time 5ms max
Relay dielectric strength 750 VAC, 50/60Hz between contact
Relay dielectric strength 1,500 VAC, 50/60Hz between all elements
Relay expected life Mechanical - 10,000,000 operations min.
Relay expected life Electrical - 100,000 operations min. at rated load
Working temperature range - 25 C ~ + 80 C
Comes with different slave address 0x27 or 0x3F, depends on the batch

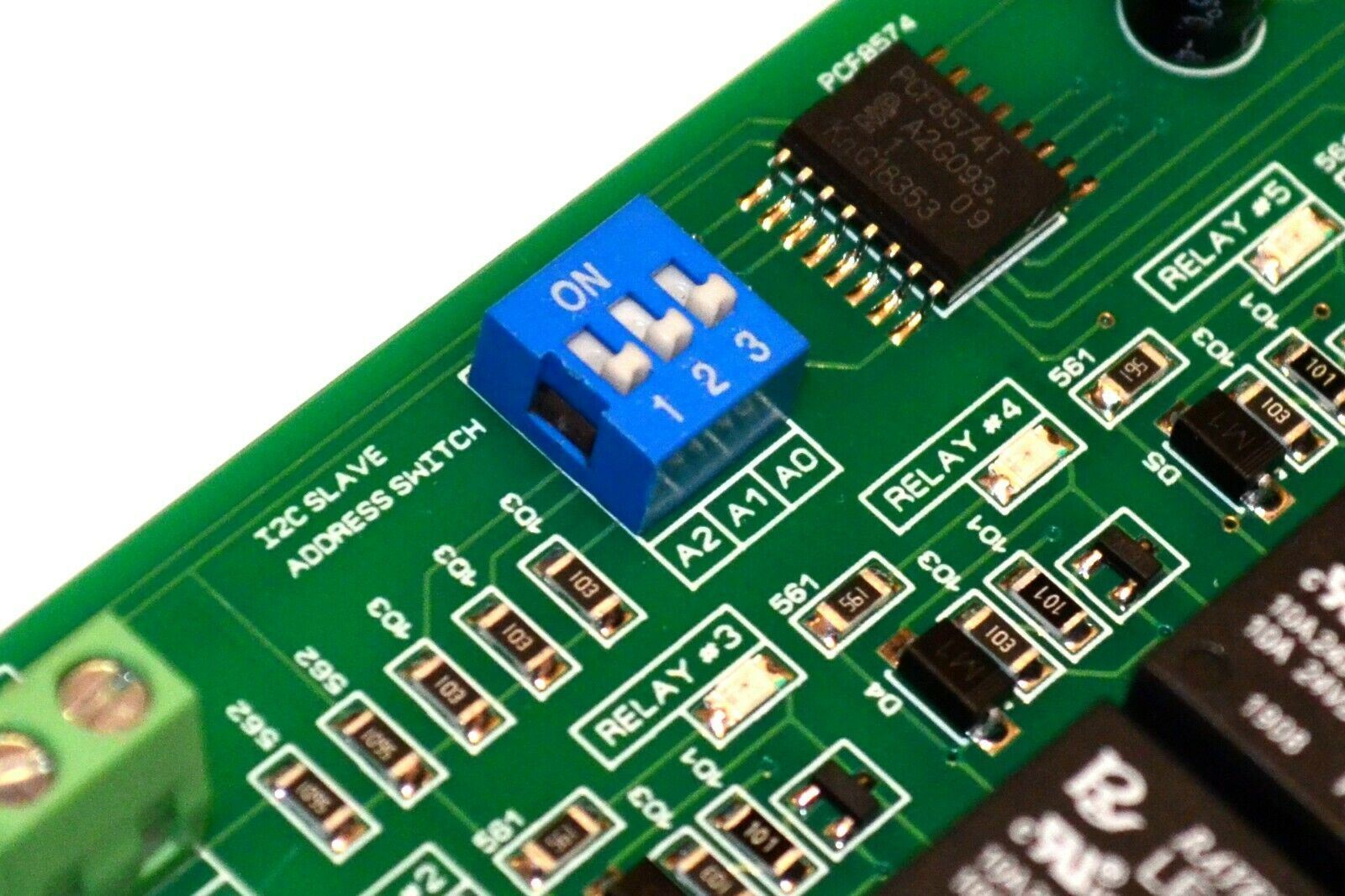

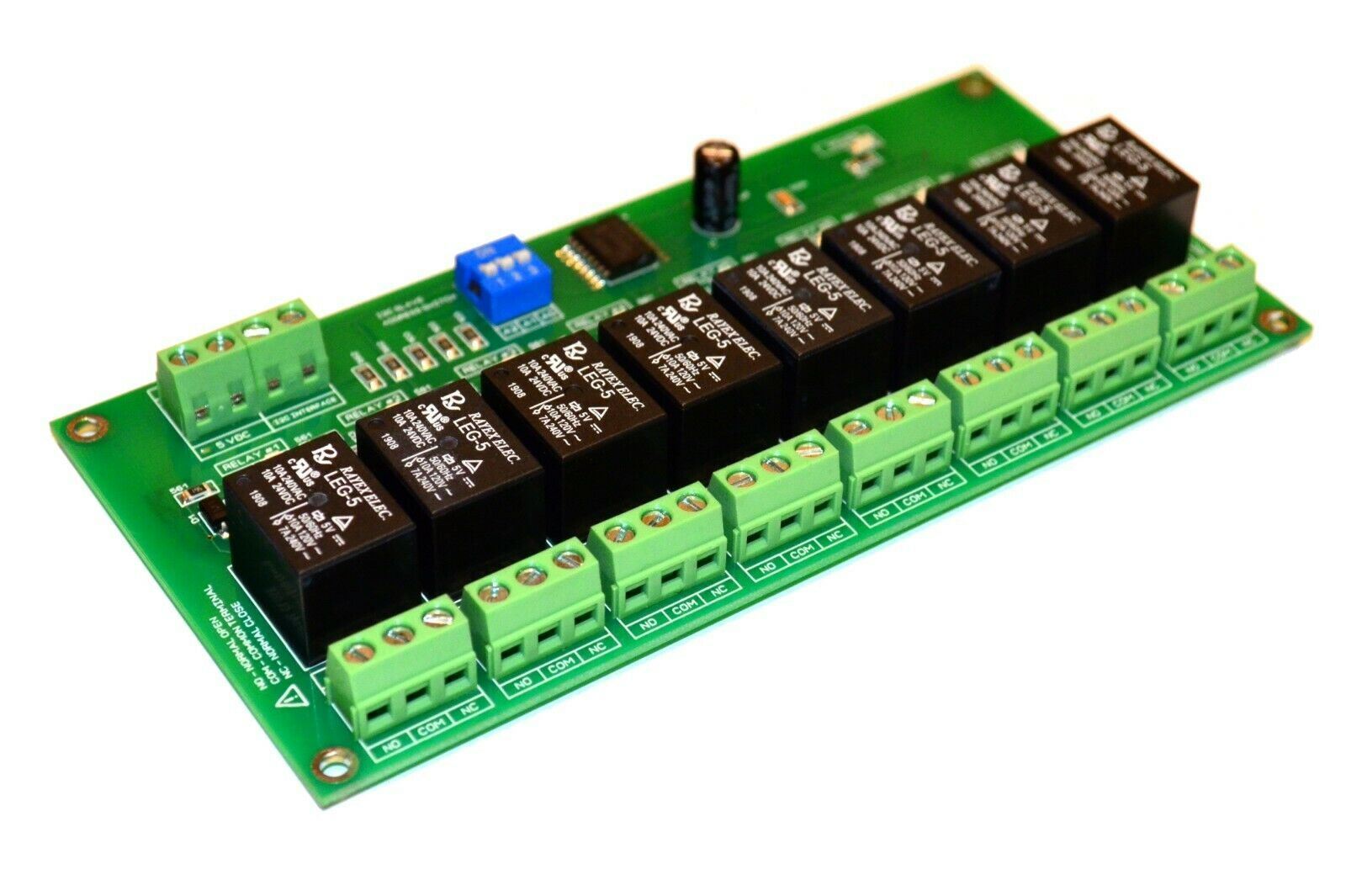

Each board can be assigned an I2C address between 0x20...0x27 (0x38...0x3F) by the DIP switch

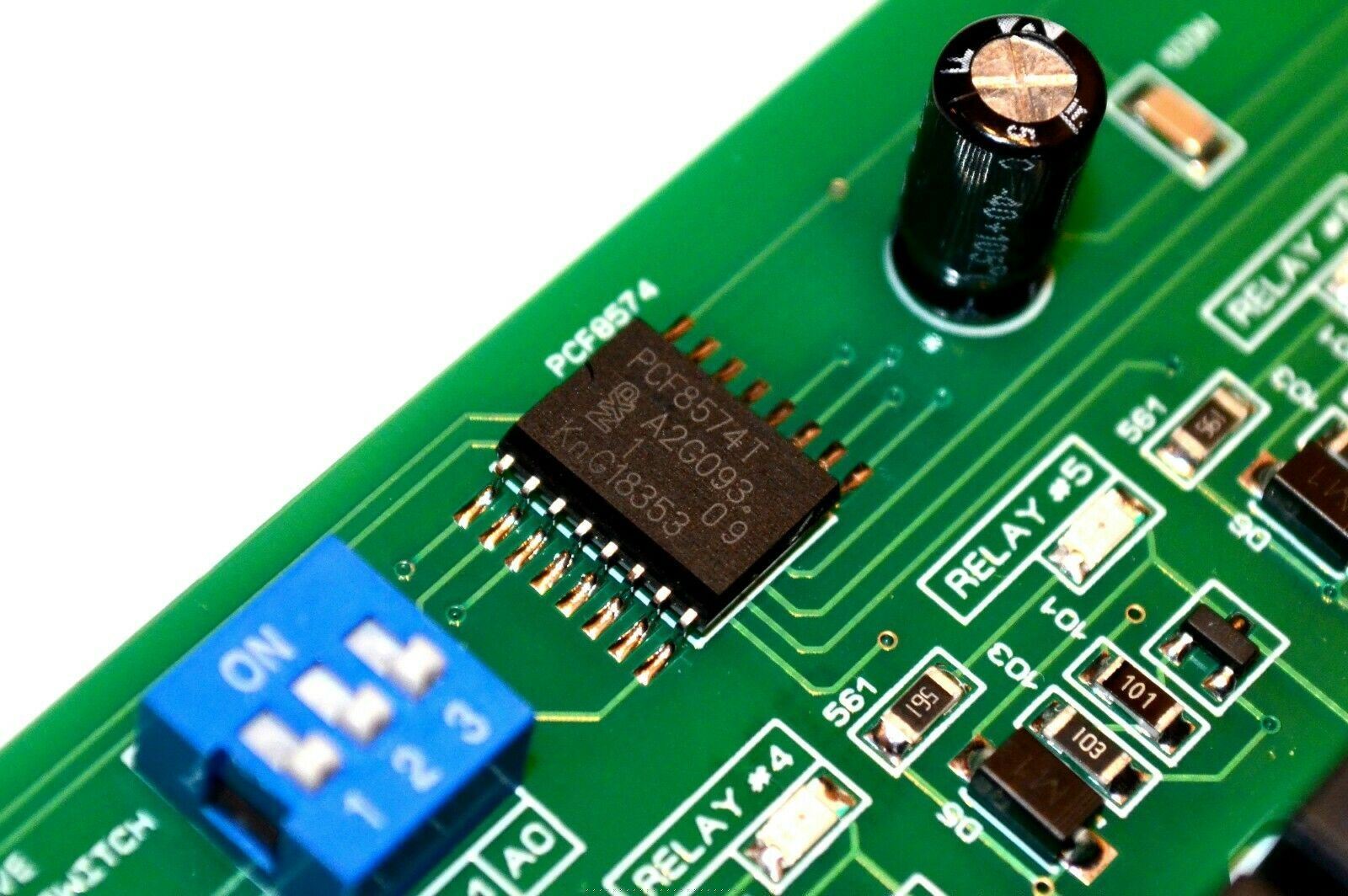

The module contains an PCF8574 or PCF8574A chip

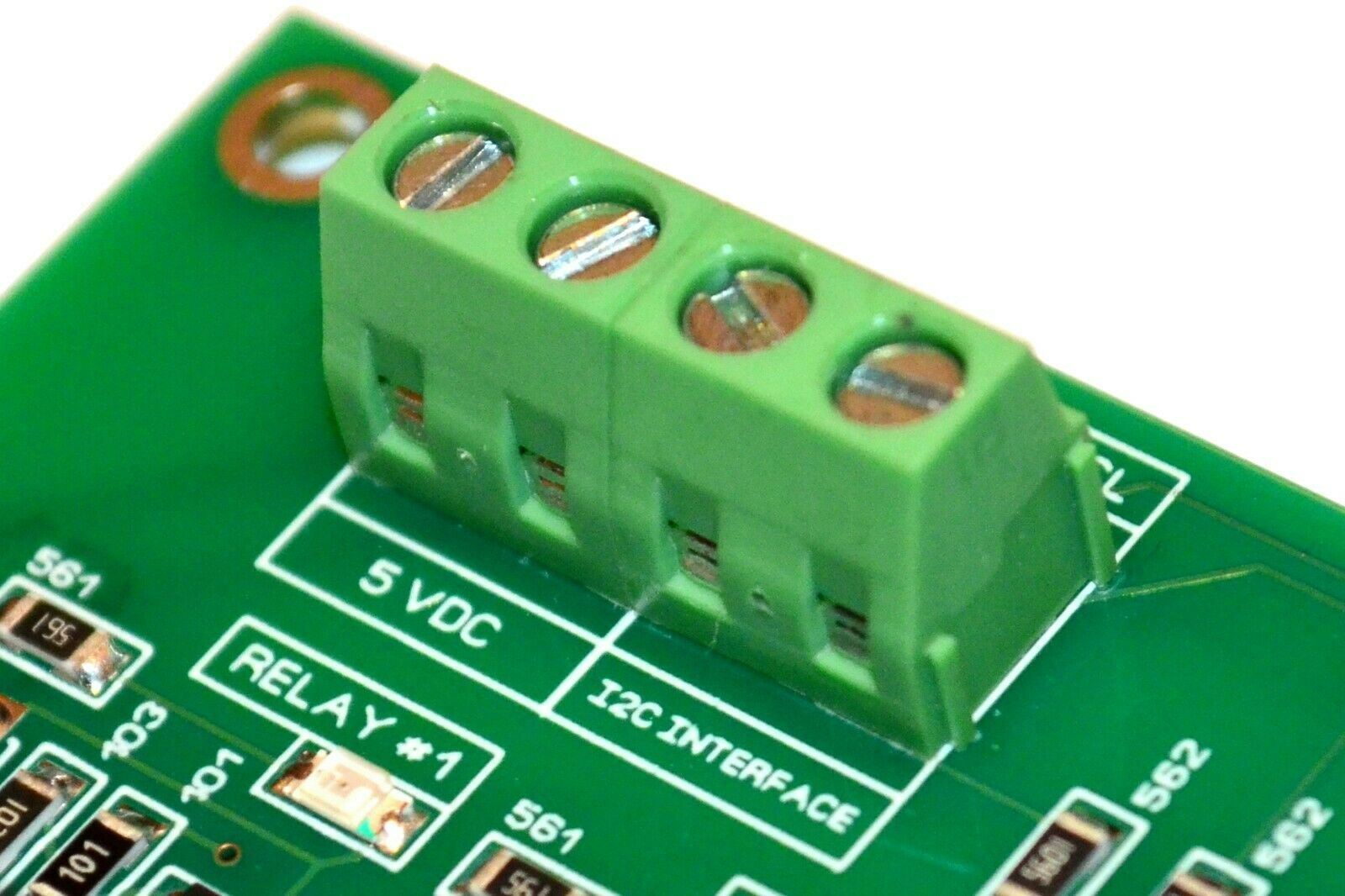

The logic power supply voltage should match the voltage levels on the I2C bus. The SDA and SCL lines are pulled up to VDD with 5.6k resistors on the relay module.
Up to 8 boards can be connected to each I2C bus.
Arduino sample codes:
Arduino sample code for 0x27 slave address - drive.google.com/open?id=1yBlxTSbHlZk4-W8UaXkK19CCdDQgpaIb
Arduino sample code for 0x3F slave address - drive.google.com/open?id=1XEcgpqWjFSCulBrdilytAGkoTqFF2Lwg
Device in action - https://www.youtube.com/watch?v=t44VNIAHDeE
