6 CH Traffic Light Controller Board, Arduino Based programmable Board 6 Channel RED Green Yellow and Others

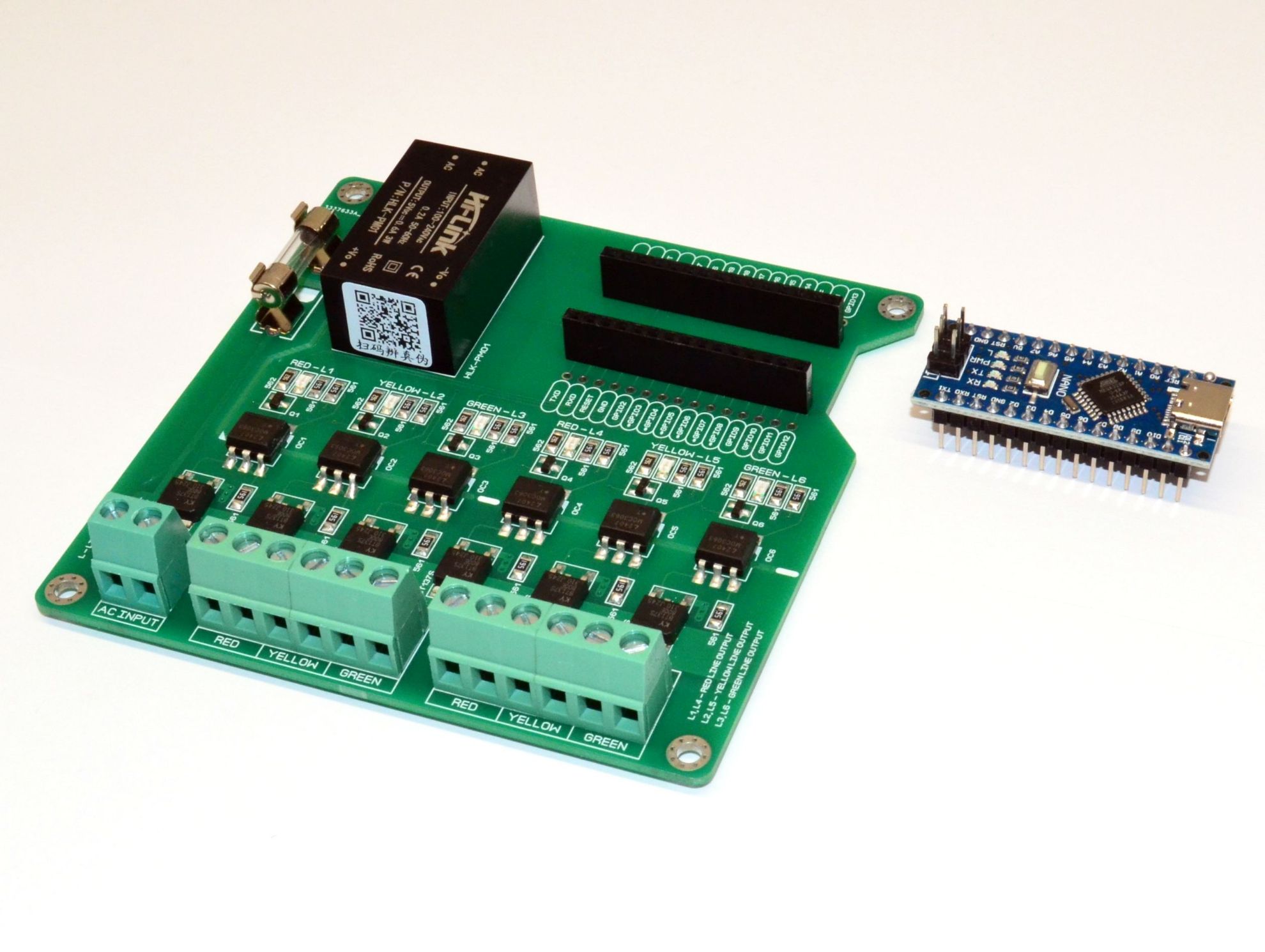

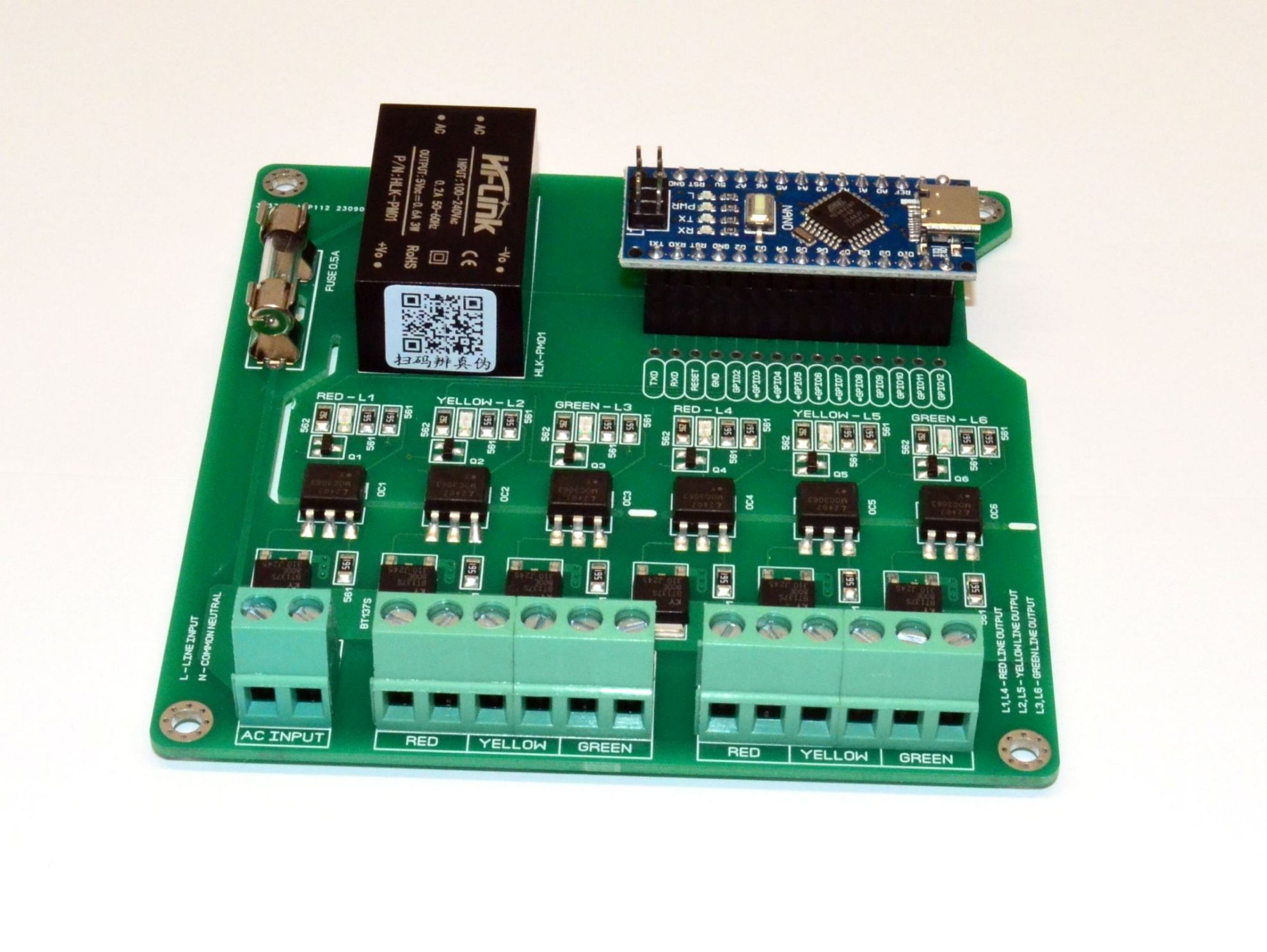

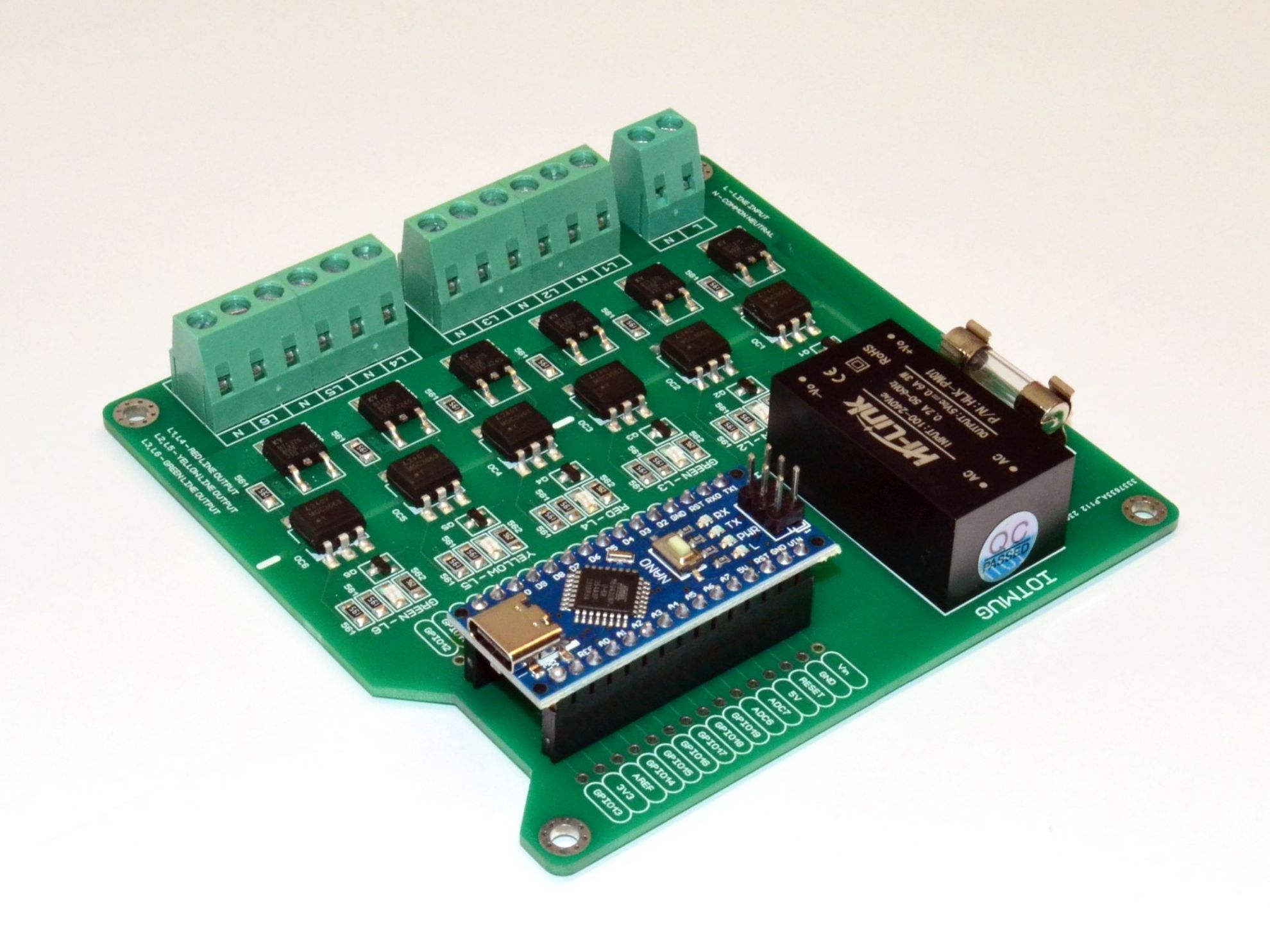

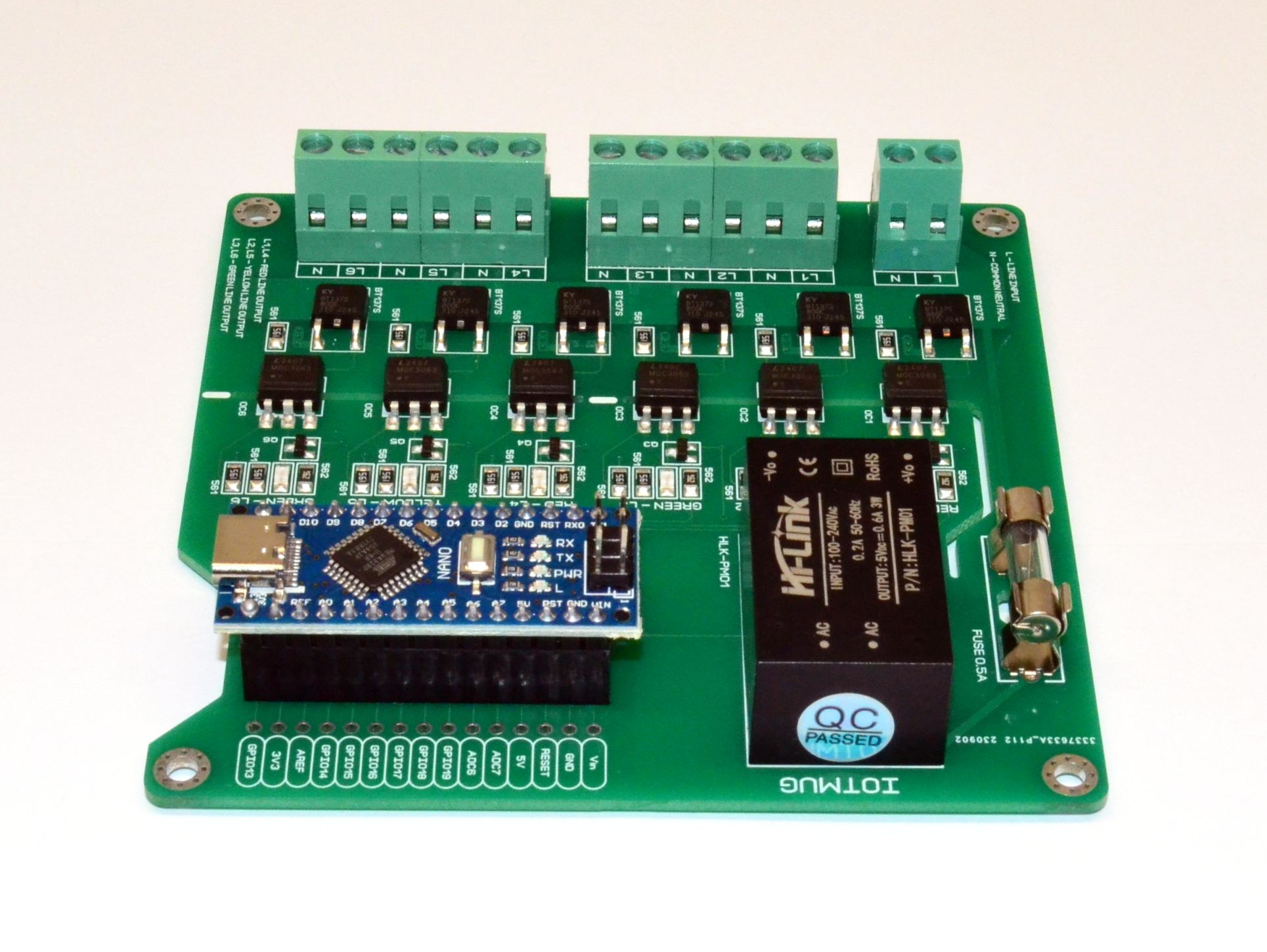

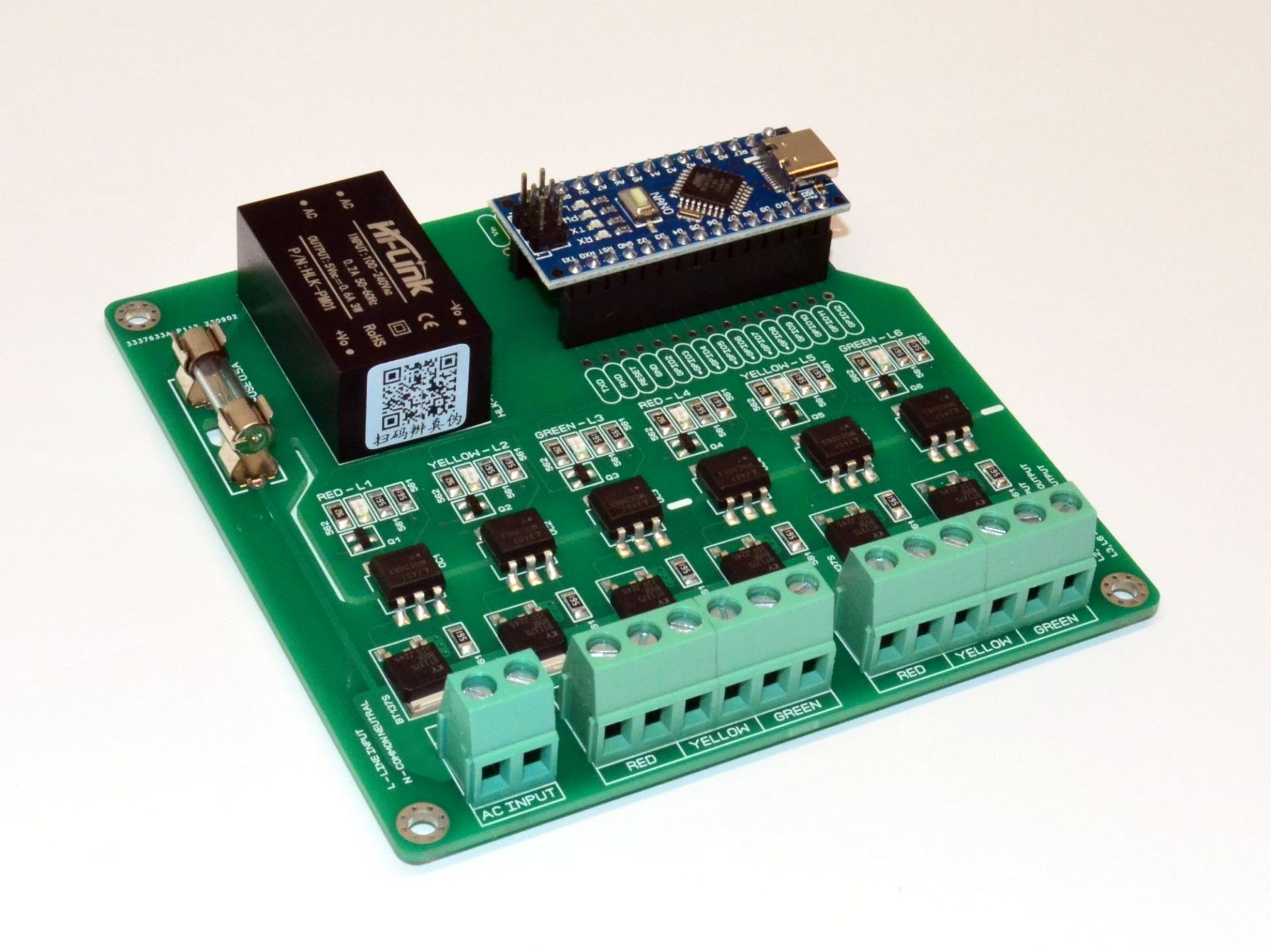

6CH Traffic Light Controller, Arduino based programmable board

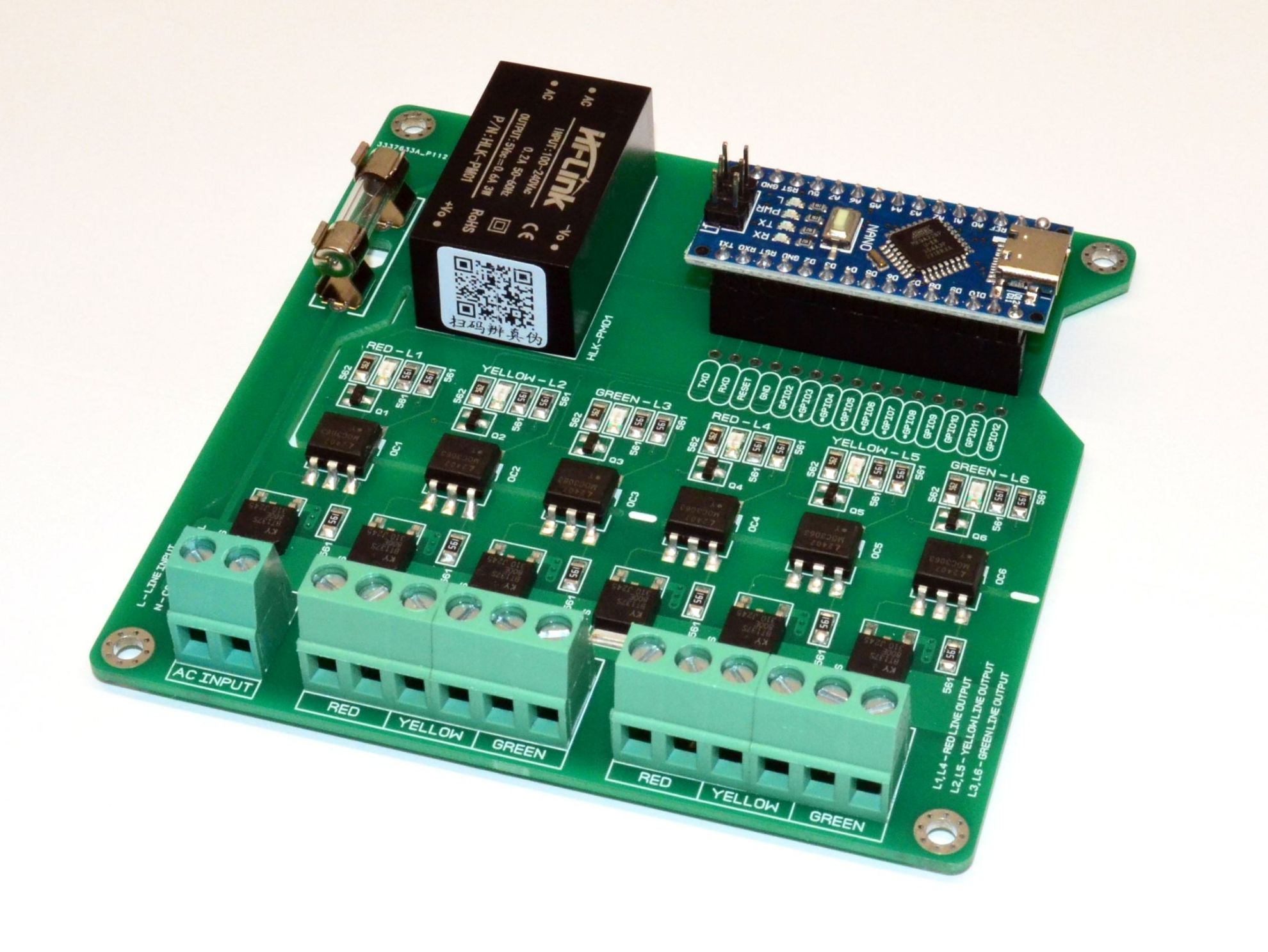

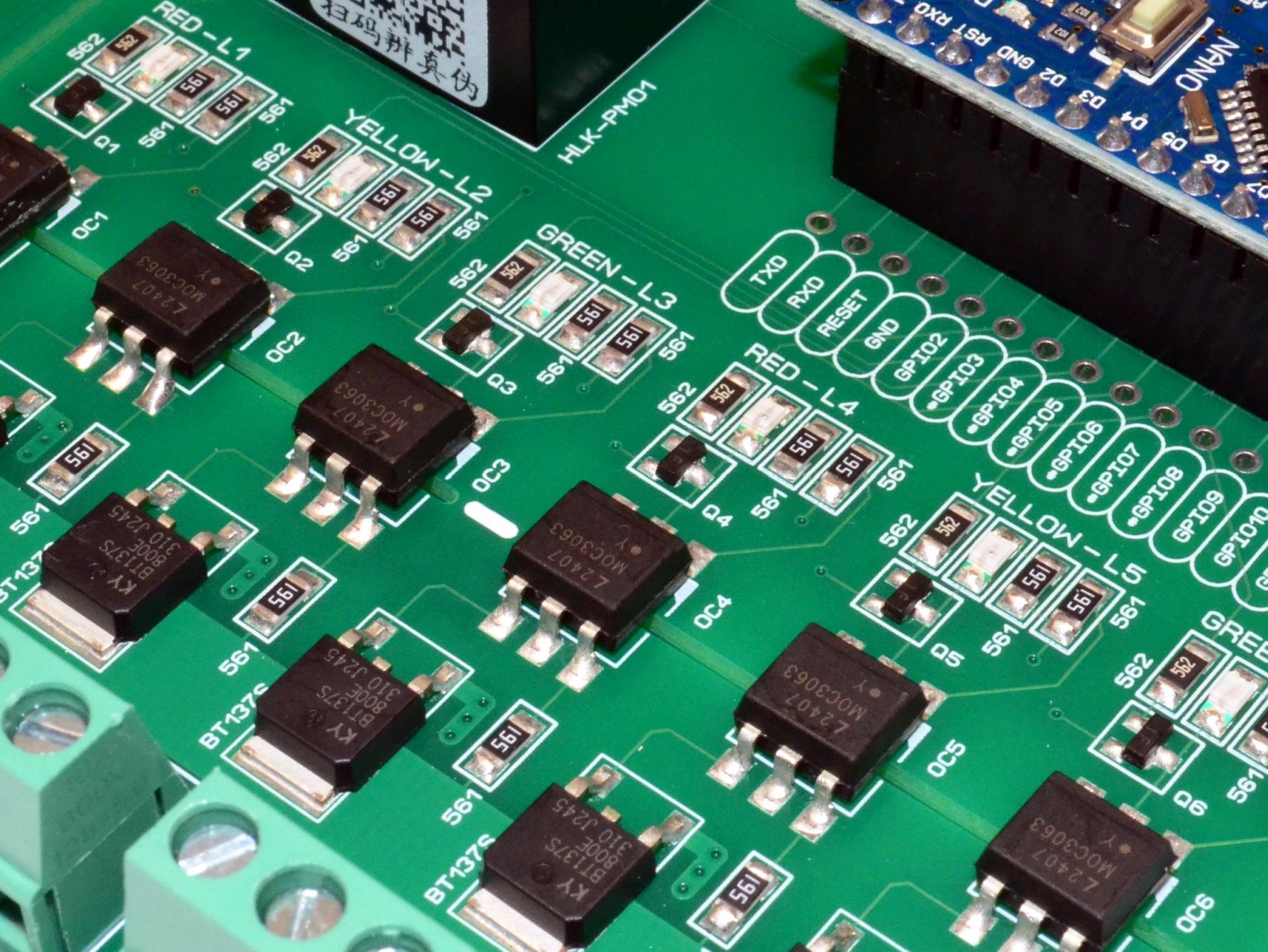

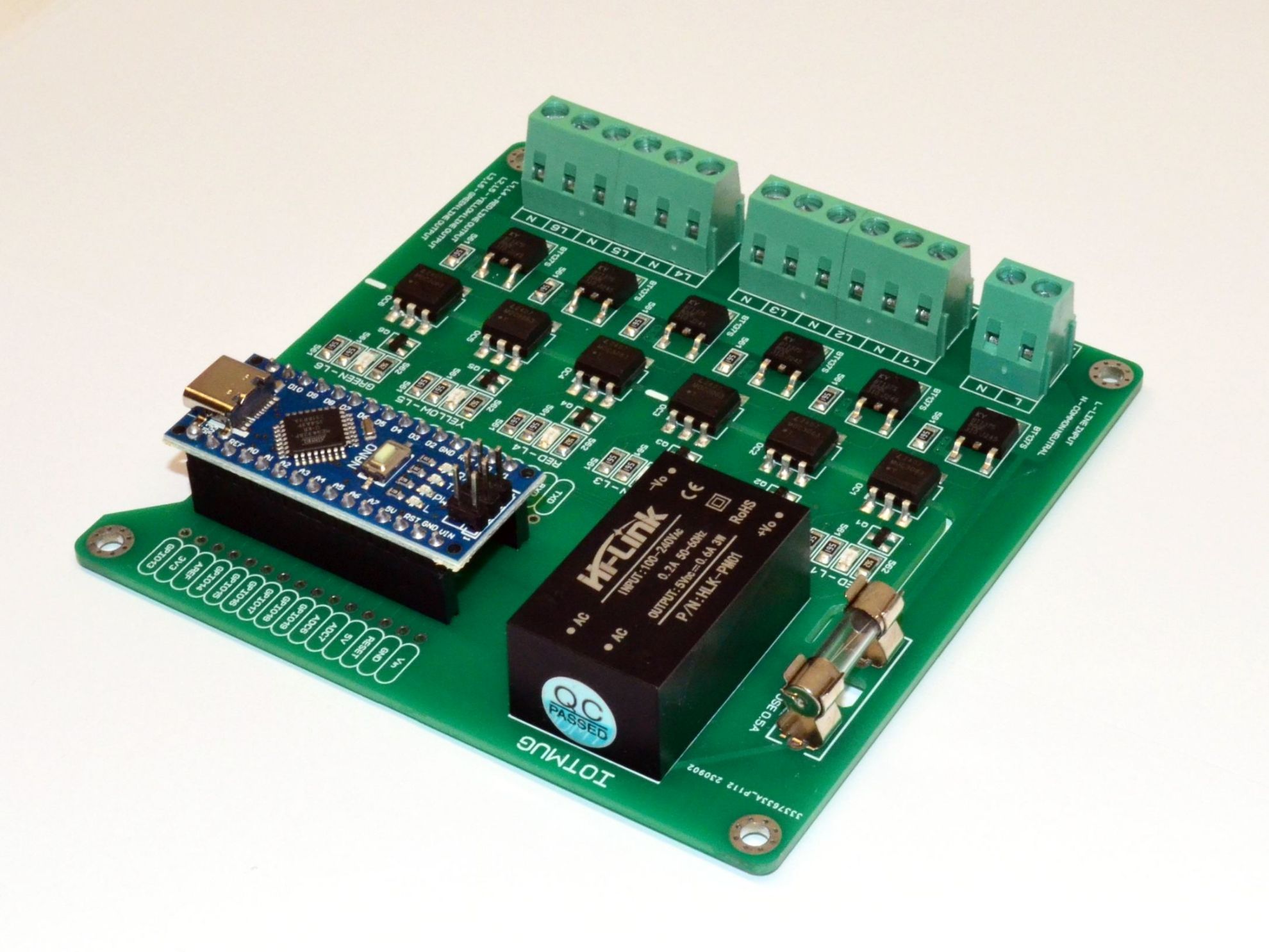

Our 6 Channel Traffic Light Controller is the perfect solution for all of your traffic signal needs. Accepting standard 120VAC and 240VAC line voltage, this controller provides 500 Watts per channel and will drive full-sized LED and incandescent traffic lights (this includes all household incandescent and LED bulbs). This board is based with the latest solid state relays. Solid state relays technology means quiet, effortless switching for many years.
Now is very simple programming all traffic lights timings with arduino software. 6 channel traffic light controller is based on arduino uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip. It’s very help to user in programming all three lights timing. This board is already programmed with simple traffic lights demo code. Also, all others demo codes are provided below.
What need user to start working with this board?
1.Download and install CH340G USB driver
2.Download and install arduino programming software from webpage
3.Connect device to the computer via usb cable
4.And upload demo or user written sketches to the board

Device specification:

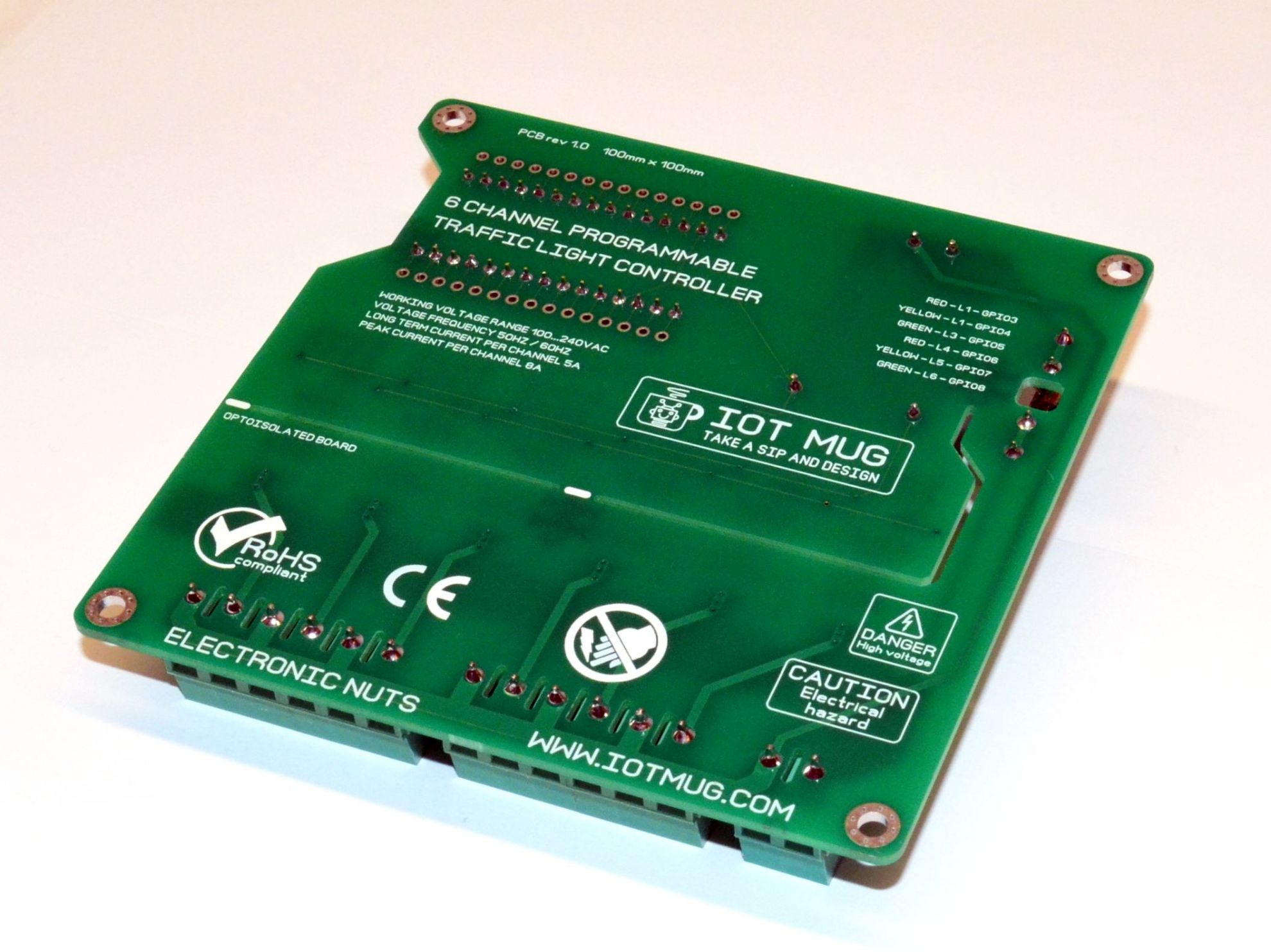

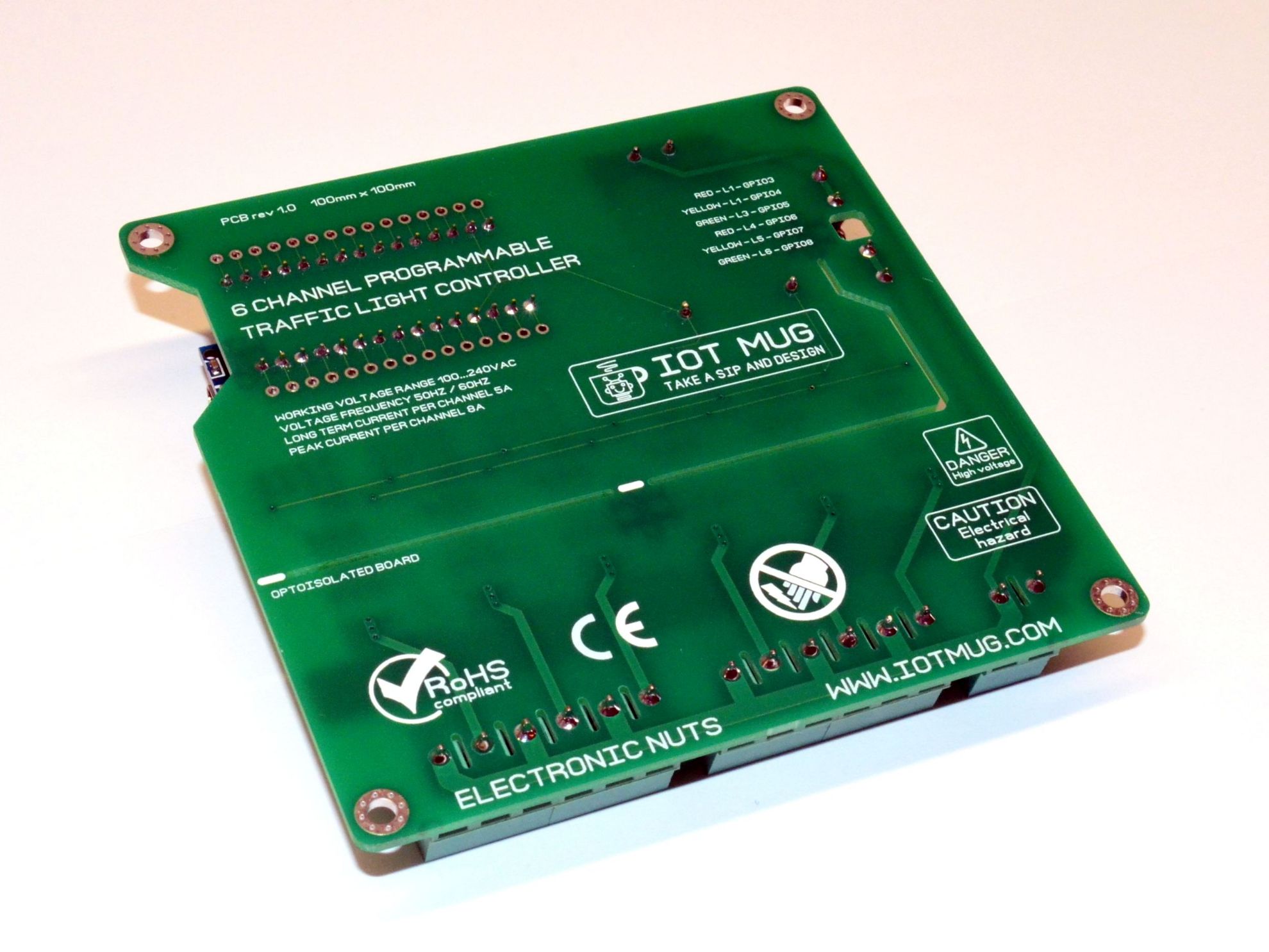

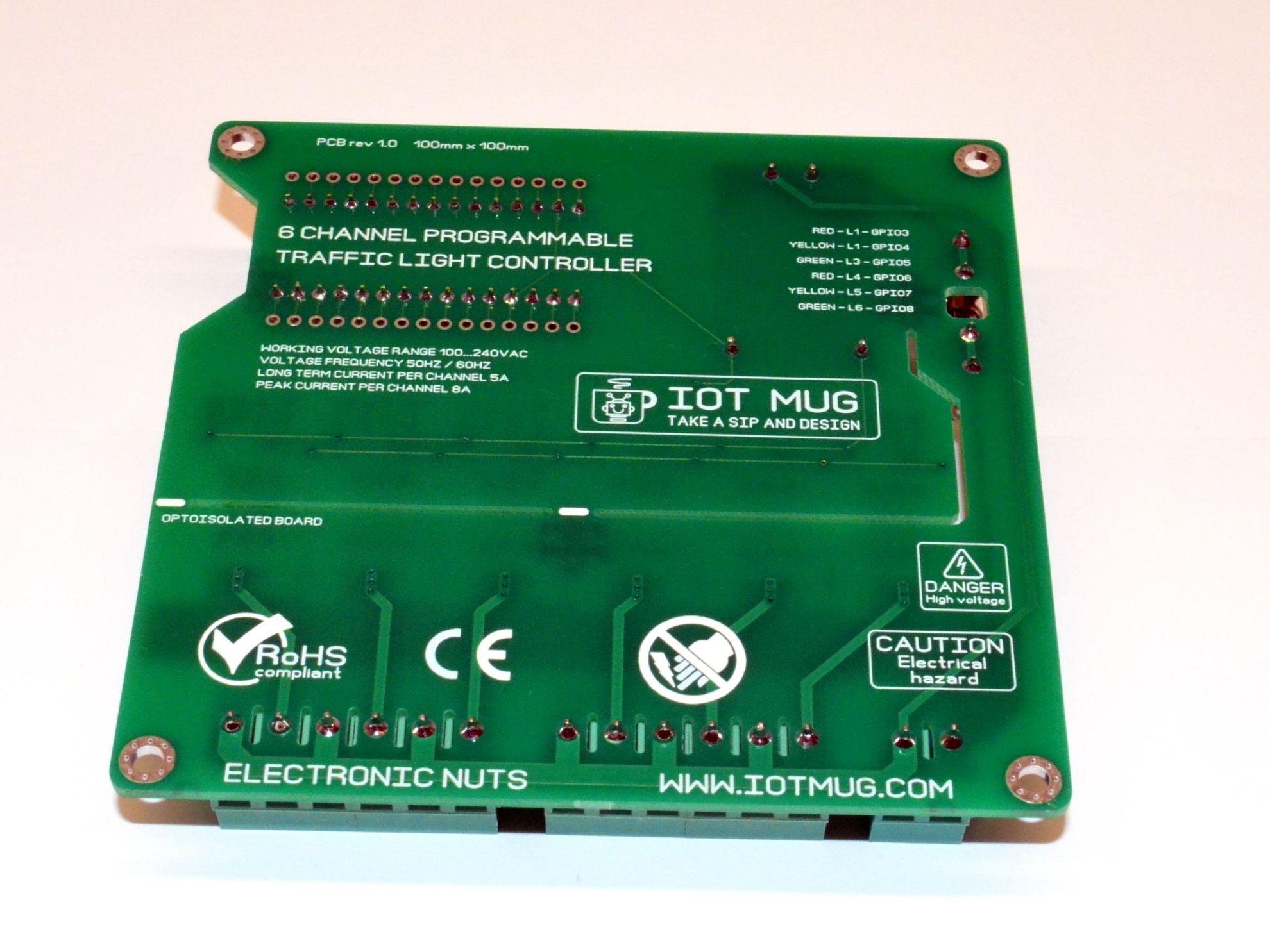

•PCB board dimension – 100mm x 100mm , color green
•PCB Board Material - 1.6 mm FR-4, with solder mask & silk screen
•Input Connector - 14-26AWG, 250VAC @ 16A screw terminals
•Output Connectors - 14-26AWG, 250VAC @ 16A screw terminals
•Safety fuse - 8A

If you need special traffic light timings, contact me and I will write arduino sketch special for you.
Min load 5W and max 500W per channel.Independent outputs channels for operating LEDs or incandescent lamps

NOT for fluorescent bulbs!!! Output voltage 5.0V and 3.3V. Maximum current - 100ma
Output RX-TX pins for 5.0V and 3.3V logic levels. Specially made for easy Bluetooth, WI-FI or any other serial protocol modules

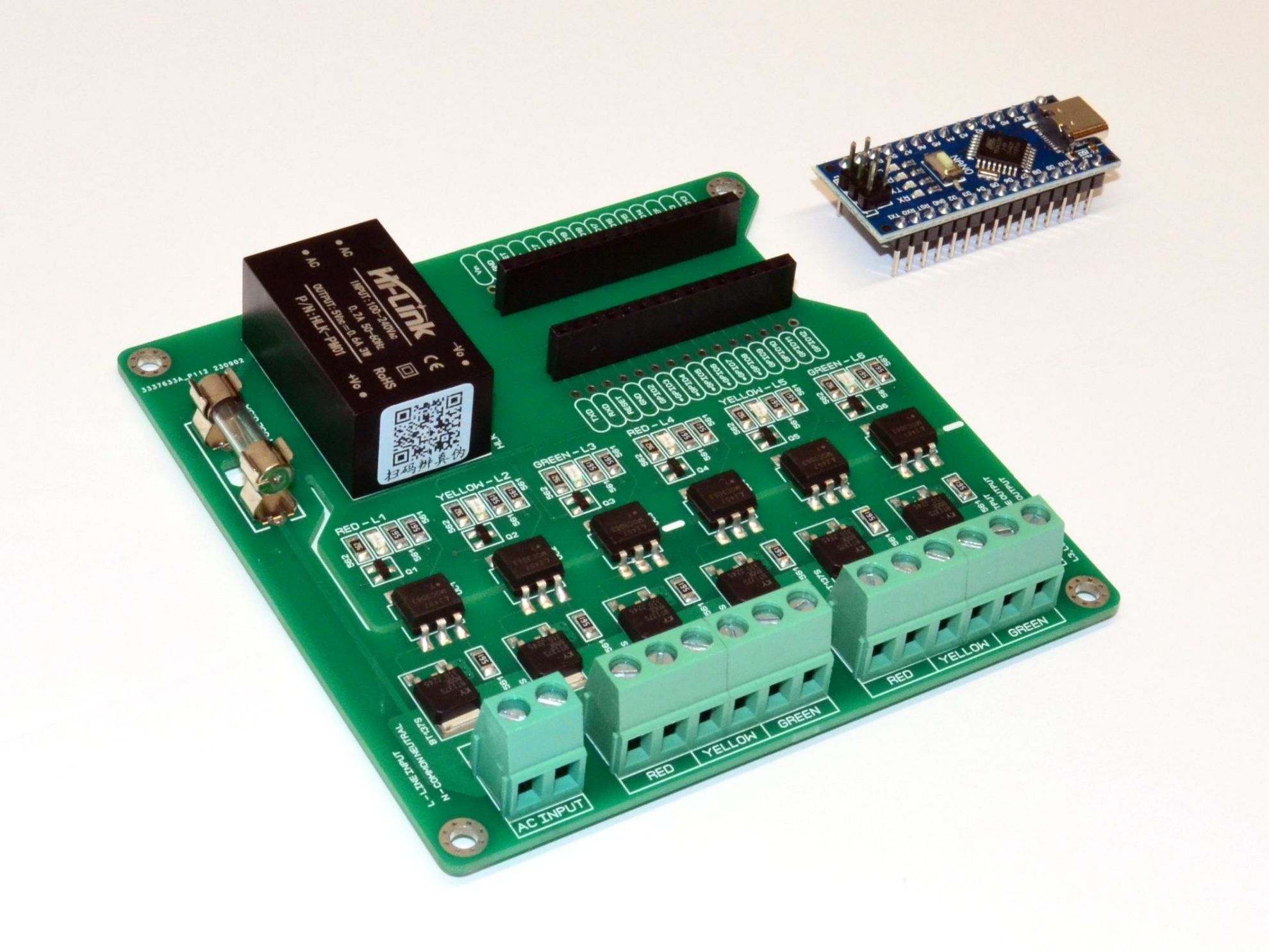

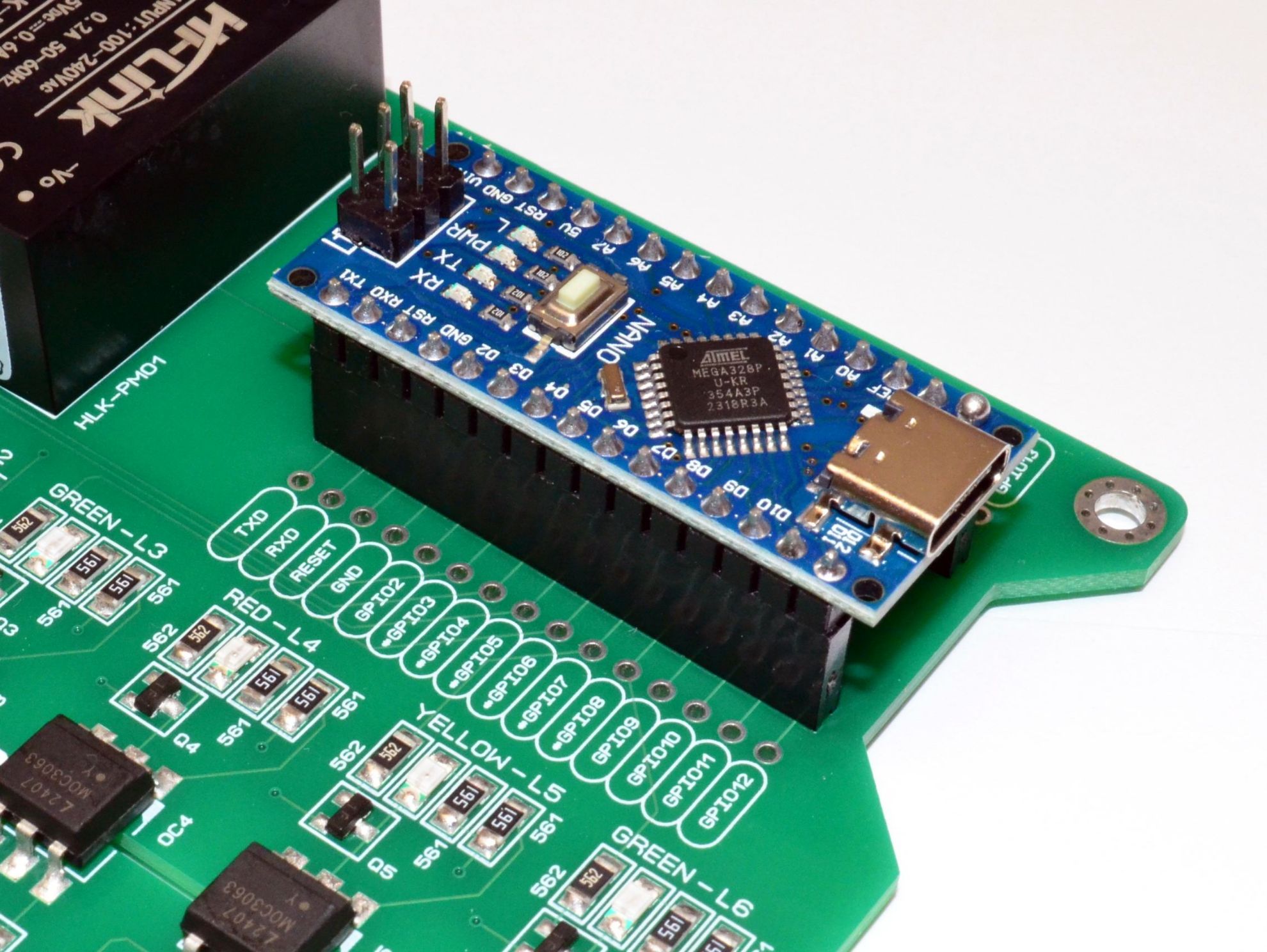

6 channel traffic light controller is based on arduino uno bootloader with ATMEGA328P microcontroller. USB-UART bridge is based on popular CH340G chip.

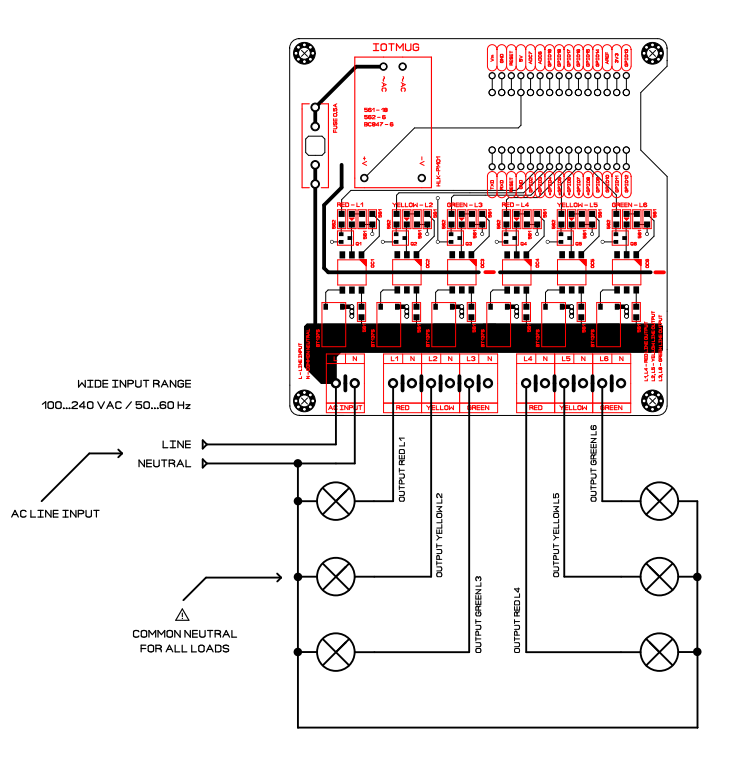

Full optoisolation from AC line Wide input AC voltage range 100…240VAC / 50HZ and 60HZ Related Videos
6 channel arduino based traffic light controller for Michael.
https://www.youtube.com/watch?v=s5JkLk02aQI
6 channel unlimited mode options traffic light controller
https://www.youtube.com/shorts/zpQANShRY90
AC 110-240V Development Board / Traffic Light Controller With Arduino 6 Channel Detailed
https://www.youtube.com/watch?v=0tIuuRkjI_Y
Help Video-6 Channel Traffic Light Controller Arduino- Port, Board, Programmer selection Sample Code
https://www.youtube.com/watch?v=k8SzRj07MJQ
Lets give a life back to your old traffic light. Upto 6 channels.
https://www.youtube.com/shorts/fQyXVOL6kRA
Traffic Light Controller Programming - Arduino Based, 2ch, 3Ch 4ch 5 Ch, 6 Channel even for Railroad
https://www.youtube.com/watch?v=LQR3SrBOcko
up to 6 channel programmable traffic light controller
https://www.youtube.com/shorts/jS7xRqywP4w
Ac Light Controller Sequencer Via Arduino up to 6 channel
https://www.youtube.com/shorts/YuZfRzxkG_g

Sample Code
https://drive.google.com/open?id=1FcMKIwZkpGPsOT4-pjiYK8kztIu09nfY
