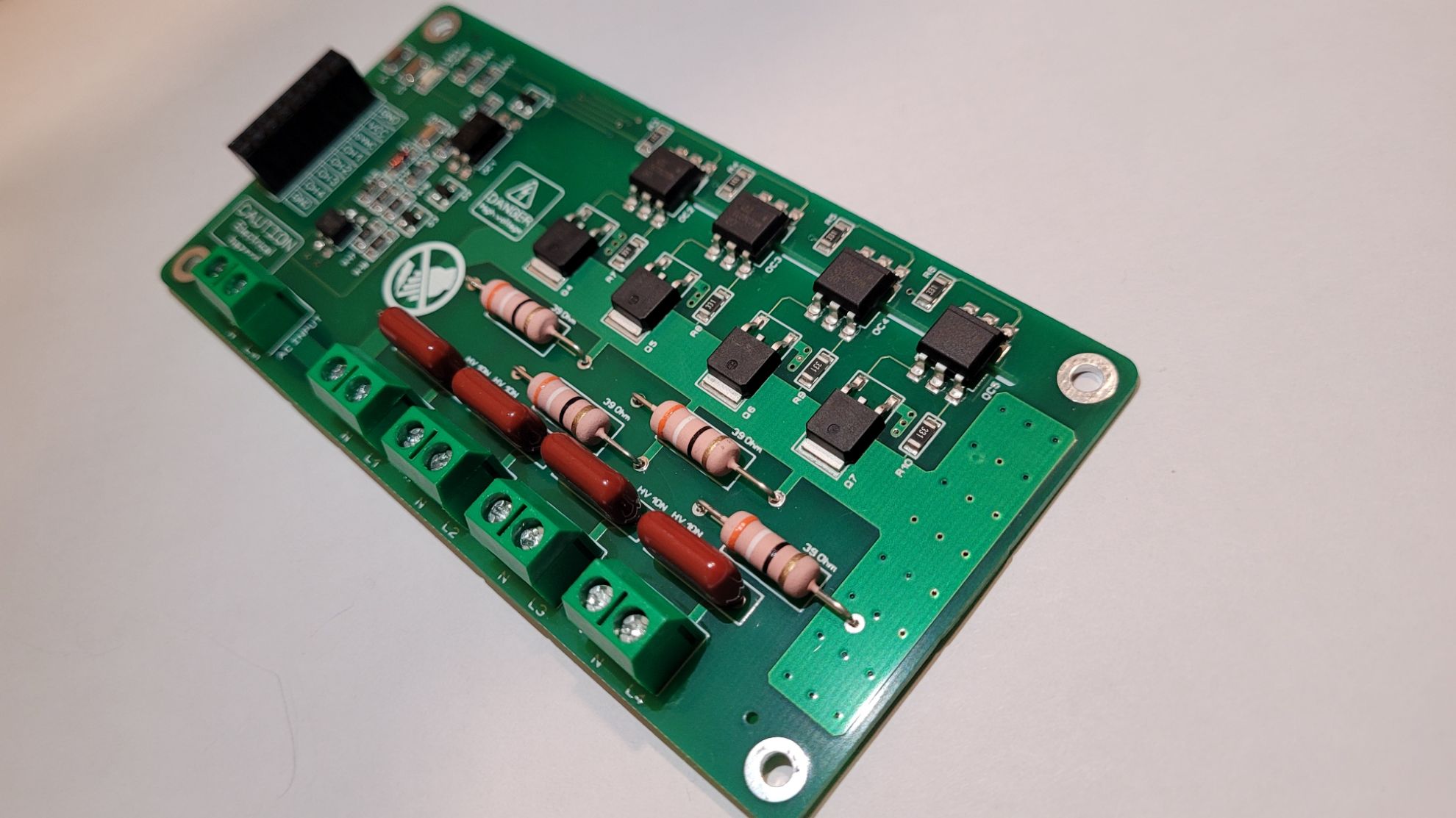

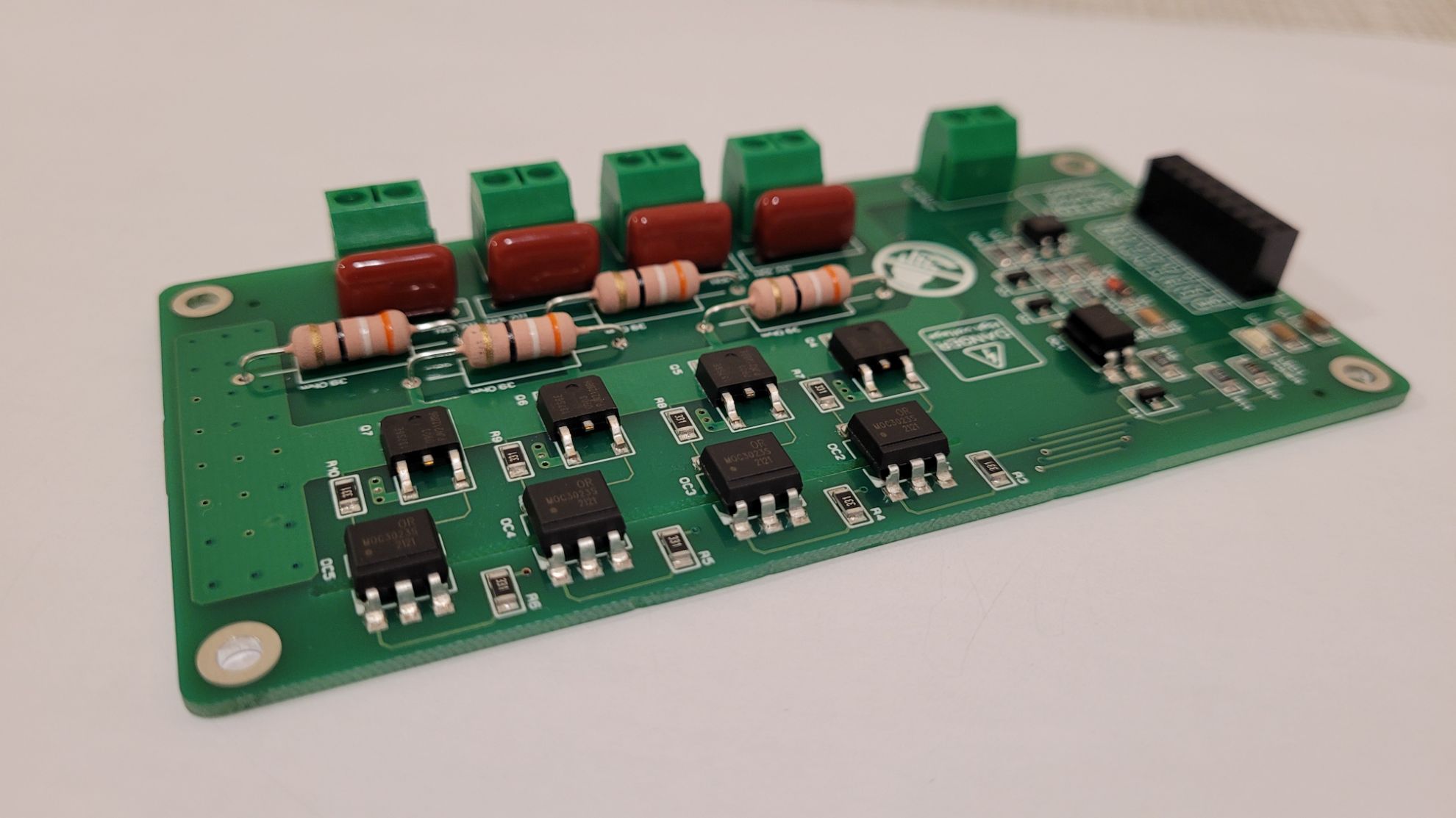

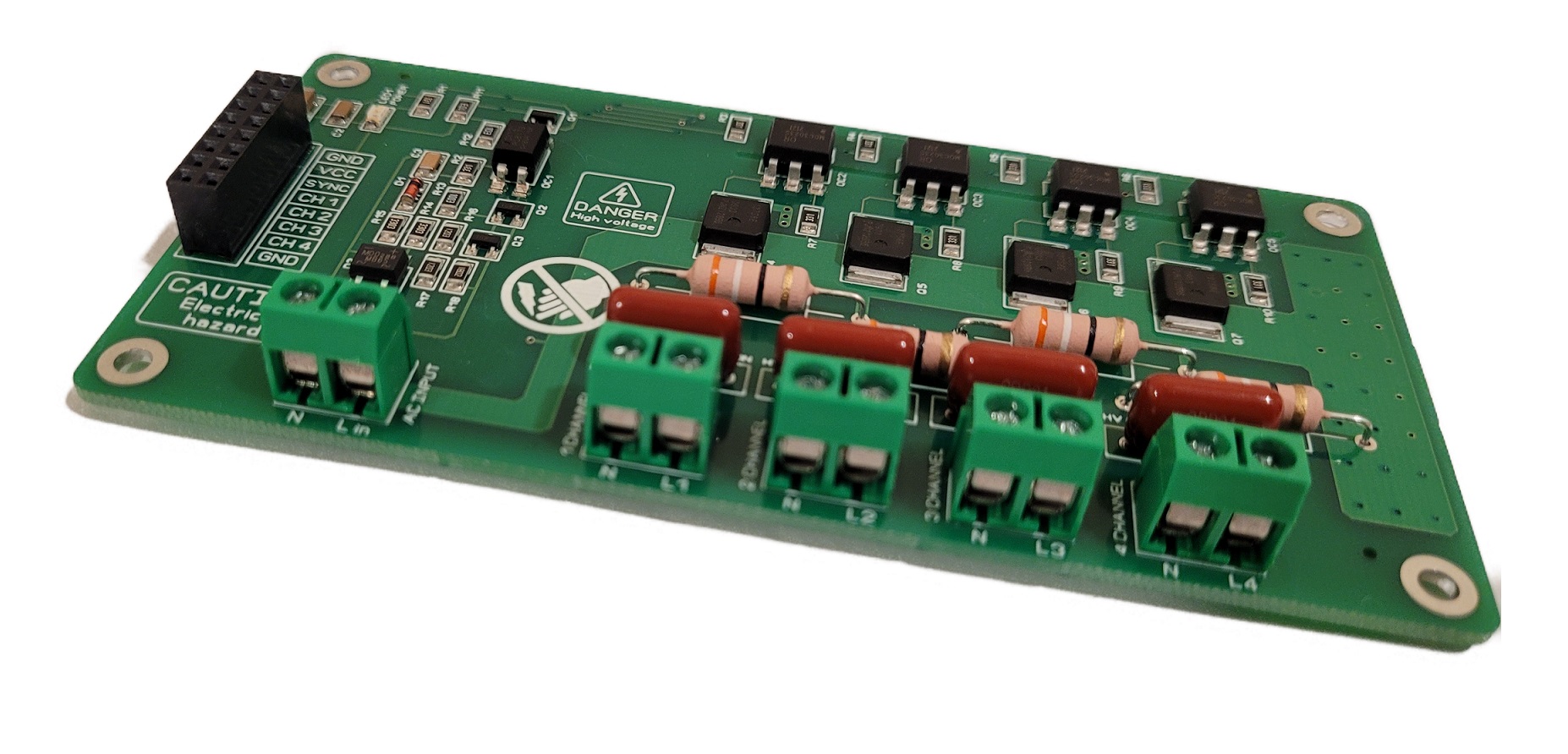

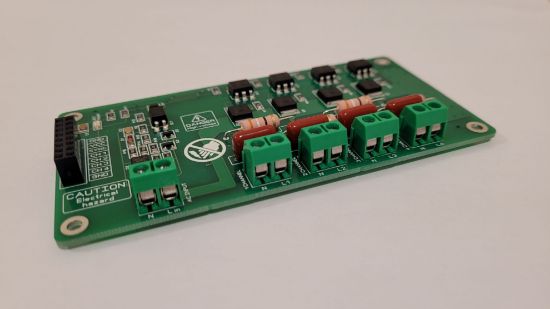

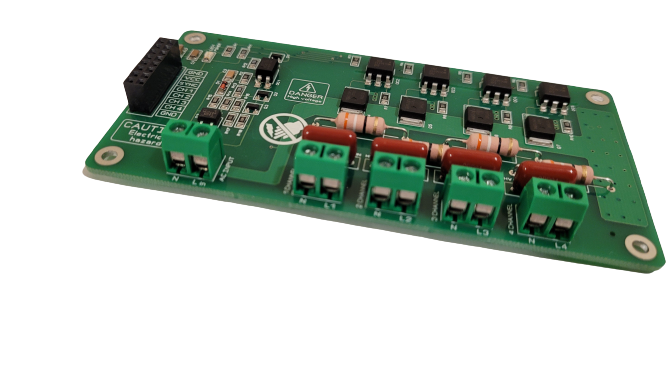

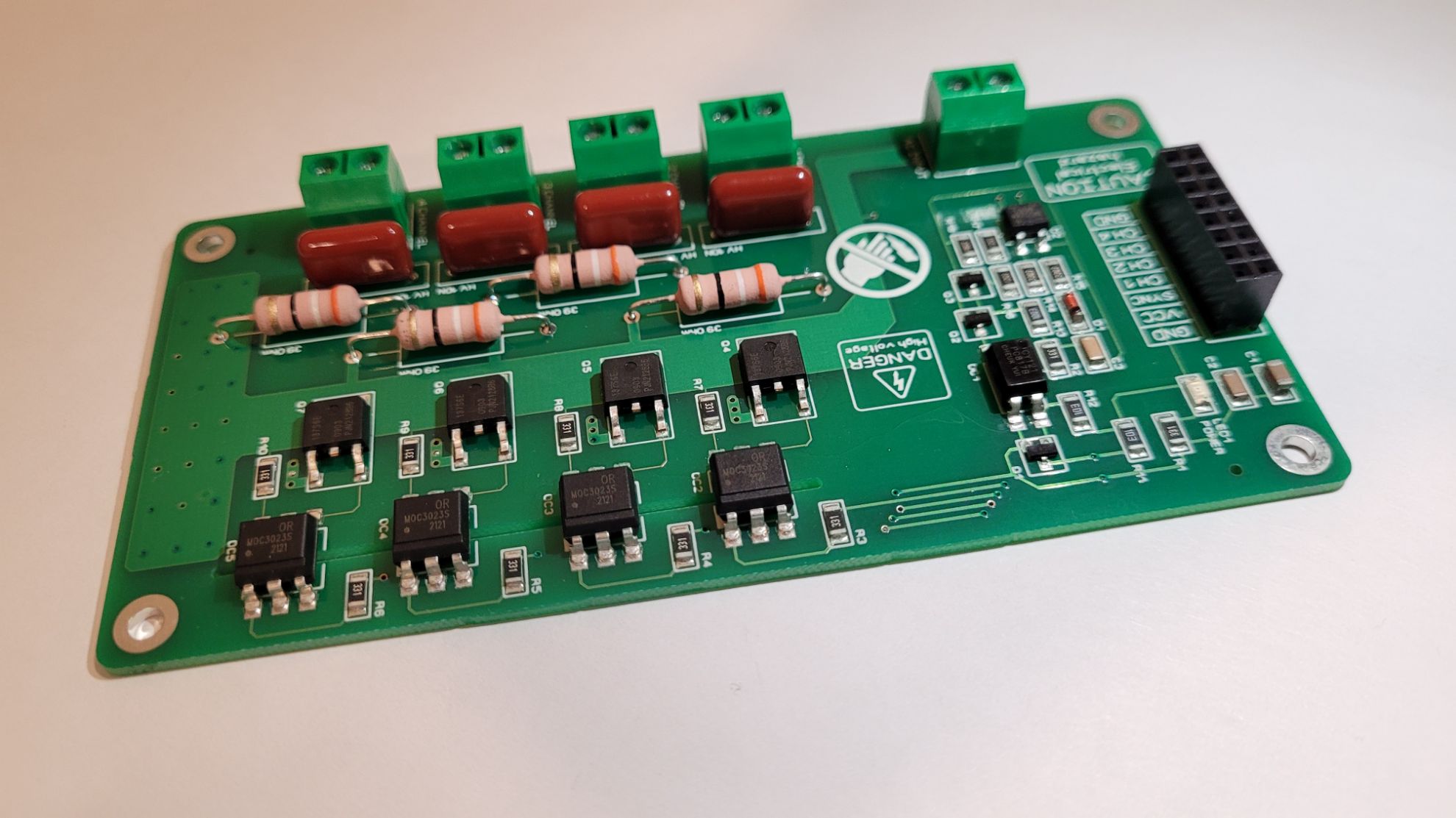

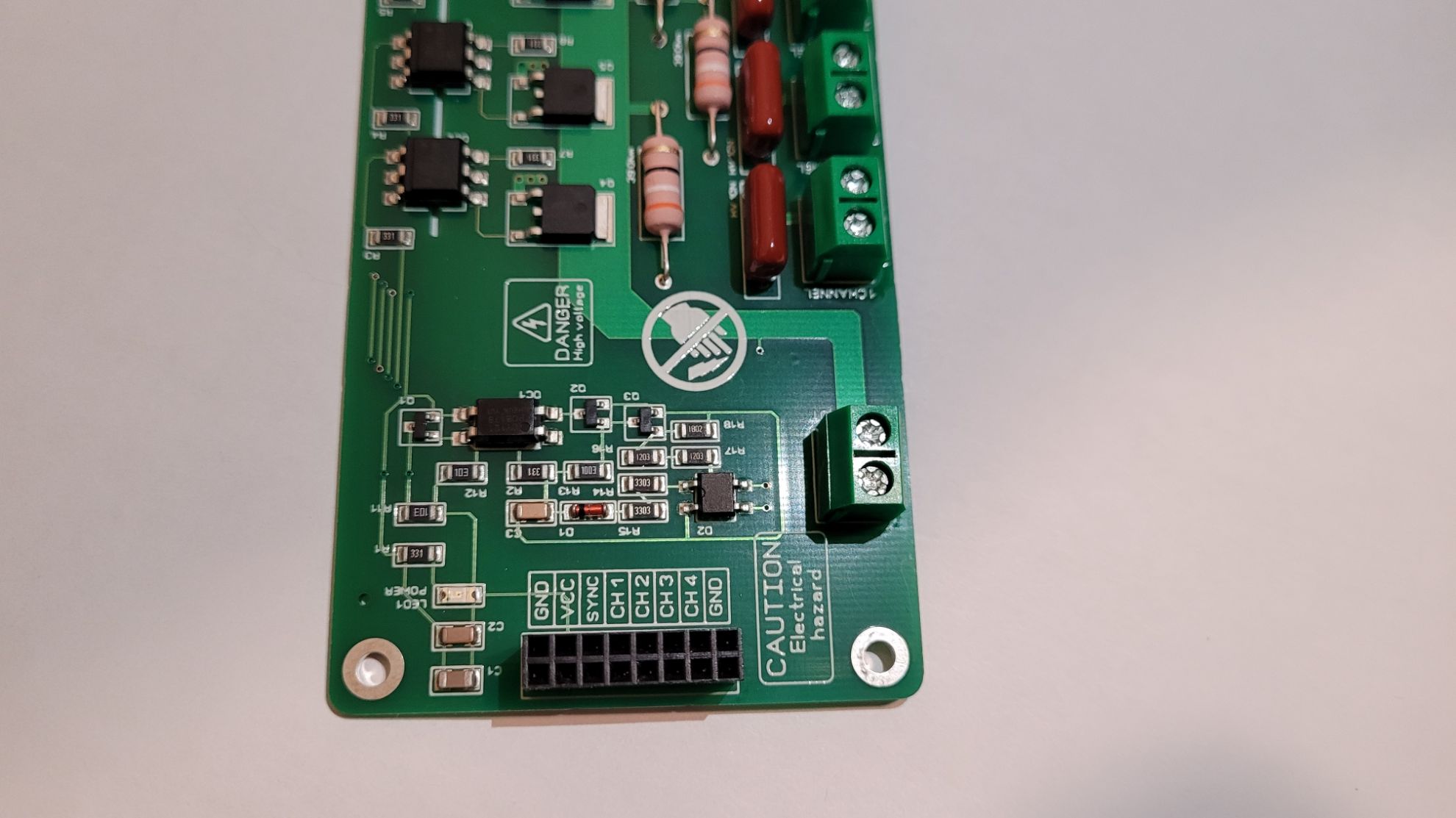

4 Channel V2 AC 500W-1000W Programmable Light Dimmer Module Controller Board Arduino Raspberry MIC Compatible 50/60hz Phase Control
Main Features:
4CH AC Light Dimmer Module Controller Board ARDUINO RASPBERRY Compatible 50/60Hz
AC Phase Control Circuit (Dimming Circuit) / Home Automation, School Projects, Work Related Projects
Auto detect 50Hz or 60Hz. / Working voltage from *80V to 240v.
Compatible with any MCU or ARDUINO, RASPBERRY boards.
Connected LOAD power for each channel 500W long-term and 1000W short-term
AC Phase Control Circuit (Dimming Circuit)
Leading Edge Dimmer for resistive and inductive loads Module contains four Triacs with zero-cross detector for programming the intensity of incandescent lamps, LED dimmable bulbs, heating elements or fan speed controlled through a micro-controller.
Working AC voltage from 80v to 240v.
Auto detect 50Hz or 60Hz.

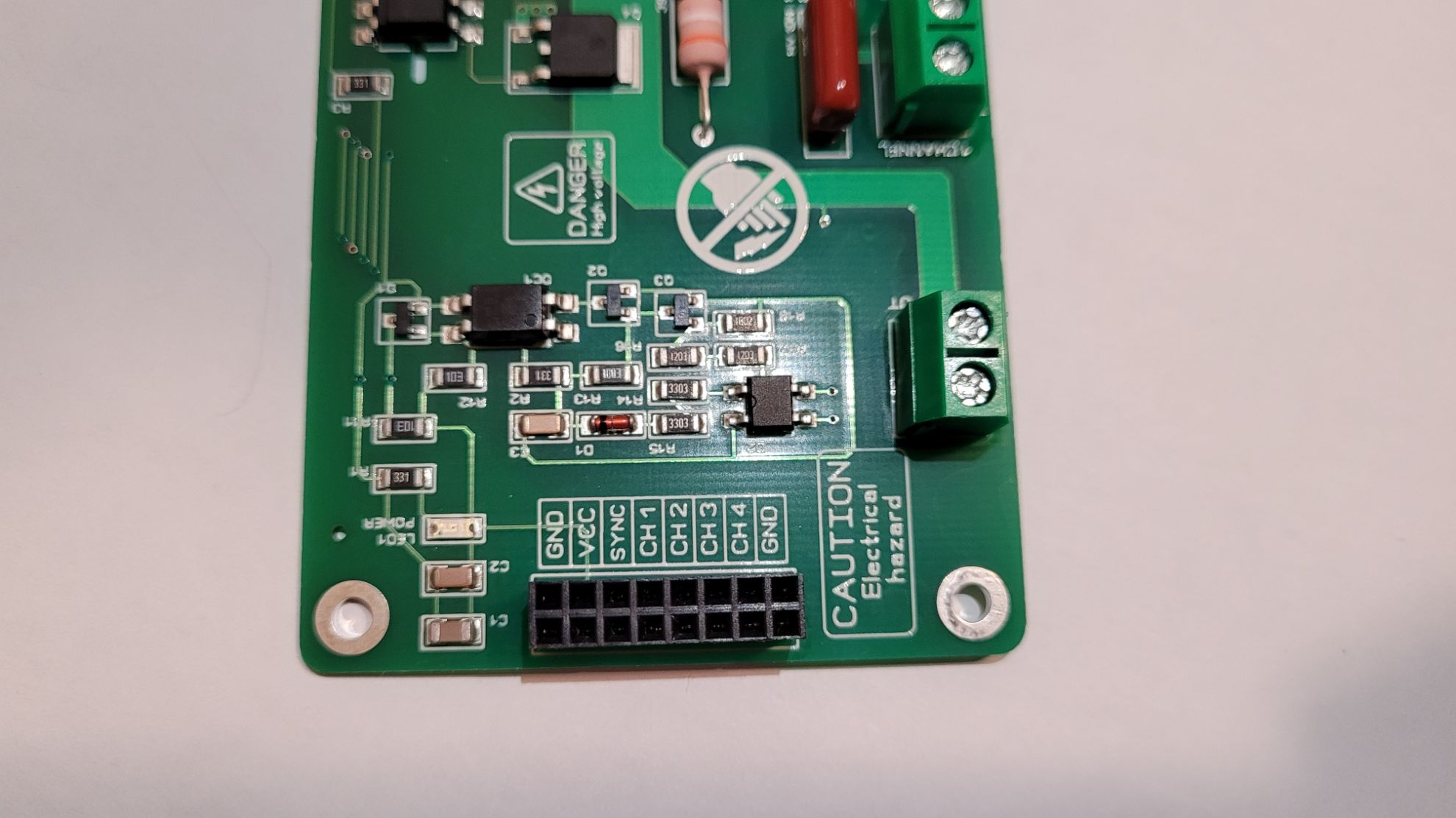

Zero-Cross detection (with zero/cross output pin SYNC).
Compatible with any MCU or ARDUINO and RASPBERRY boards.
Low voltage side and high voltage side is completely isolated.

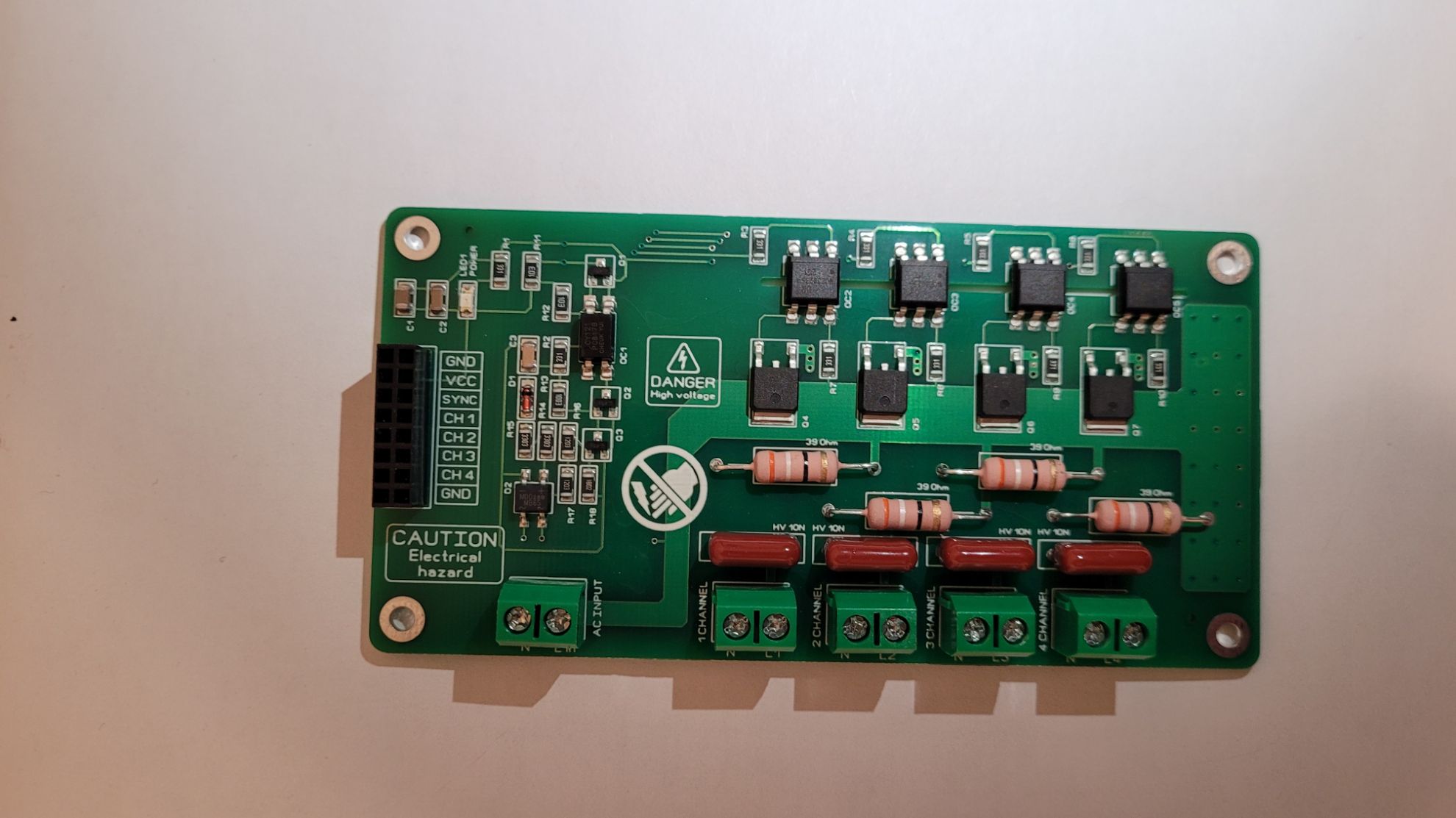

Dimensions of the PCB 110mm x 60mm. Four mounting holes diameter 3.2mm.
Connected LOAD power for each channel 500W long-term and 1000W short-term.
NOT appropriate to change the brightness of fluorescent lamps ! Control dimming level via FIRING ANGLE method !
Warning: This project deals with AC electricity which is dangerous if you don’t know how to treat it safely. You must treat electricity with caution!
NOTE: please observe the polarity of the network
