Specification:

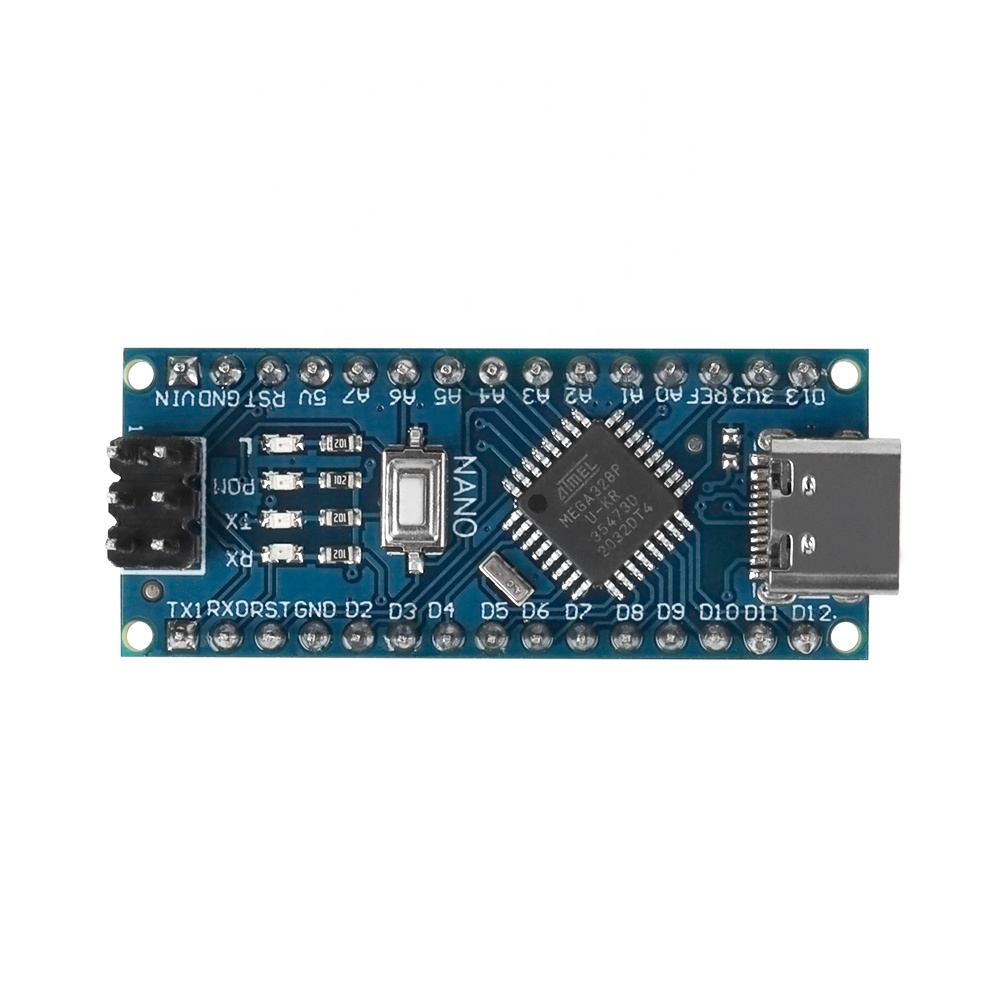

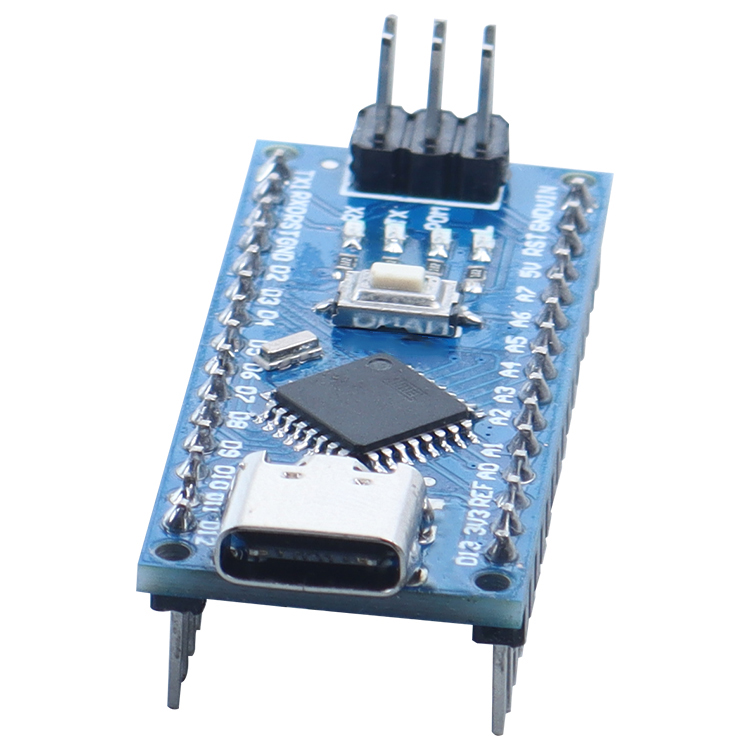

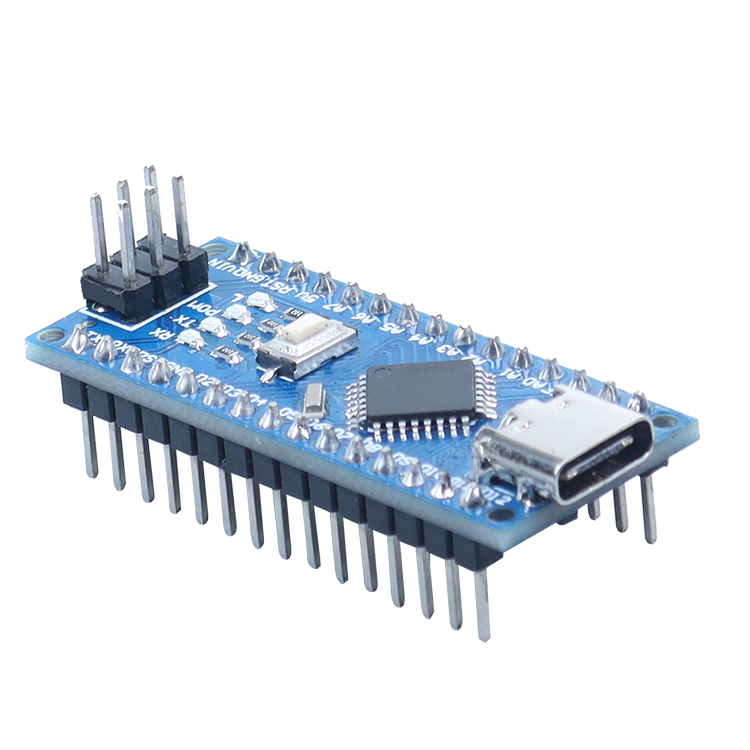

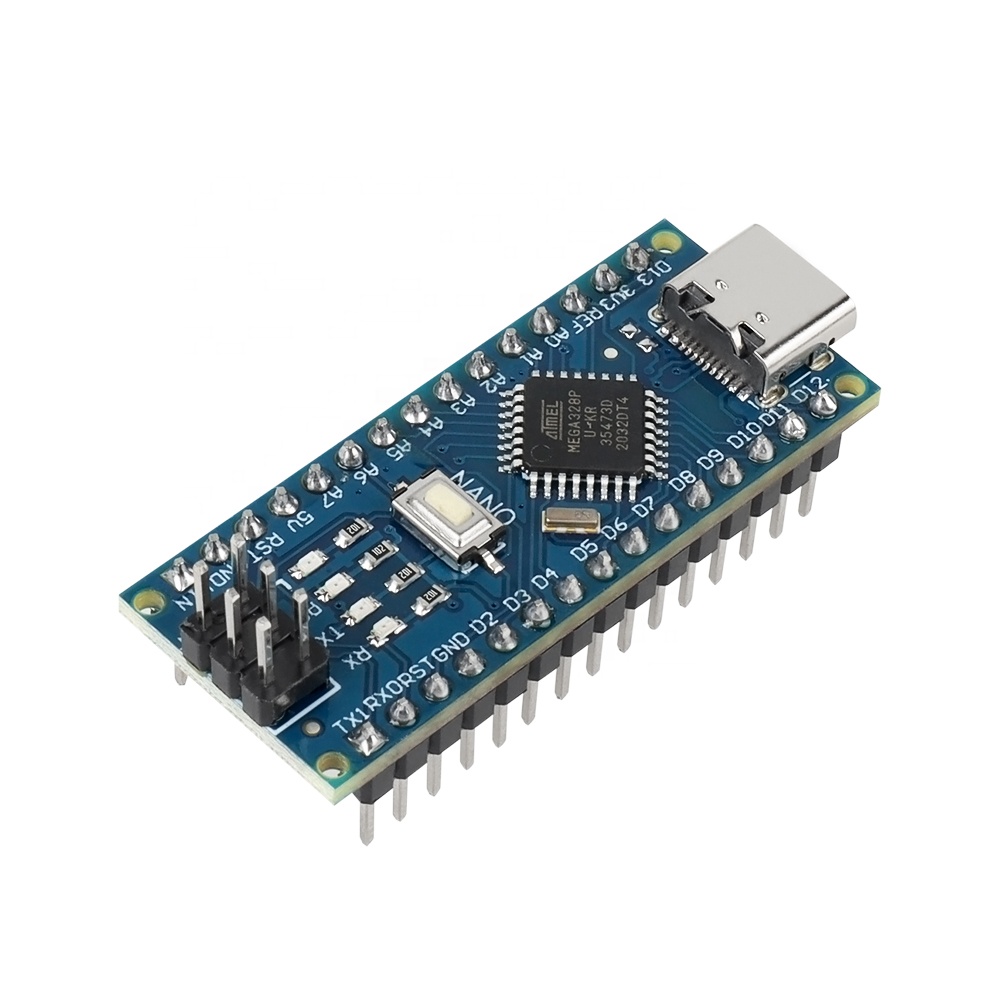

The 3.0 is a small, complete, and breadboard-friendly board based on the ATmega328. It has similar functionality as, but in smaller form factor. It lacks only a DC power jack, and works with a Type-C USB cable instead of a standard one. We offer the soldered version.
Features:
Automatic reset during program download
Power OK blue LED
Green (TX), red (RX) and orange (L) LED
Auto sensing/switching power input

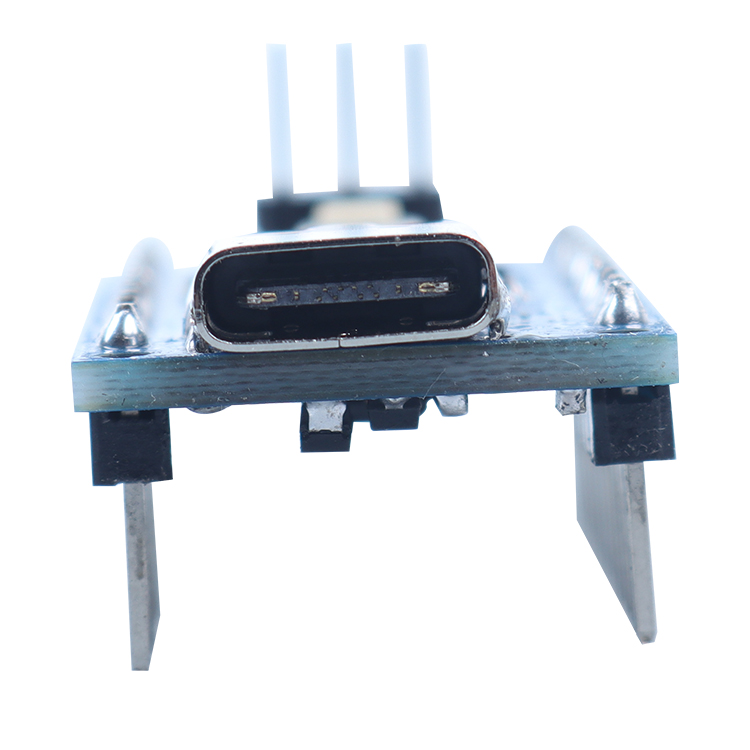

Small Type C USB for programming and serial monitor
ICSP header for direct program download
Standard 0.1” spacing DIP (breadboard friendly)
Manual reset switch
Notes:
The bootloader is already pre-installed. The CH340 is used to replace the FT232RL chip. Please install the CH340 driver before plugging this board to the computer.
Product Paramenters
Controller
ATMEGA328P-AU
Input Voltage (recommended)
7-12V
Digital IO pins
14 (of which 6 provide PWM output)
Analog input pins
8
DC Current per I/O Pin
40mA
SRAM
2KB
Clock Speed
16 MHz
Operating voltage(logic level)
5V

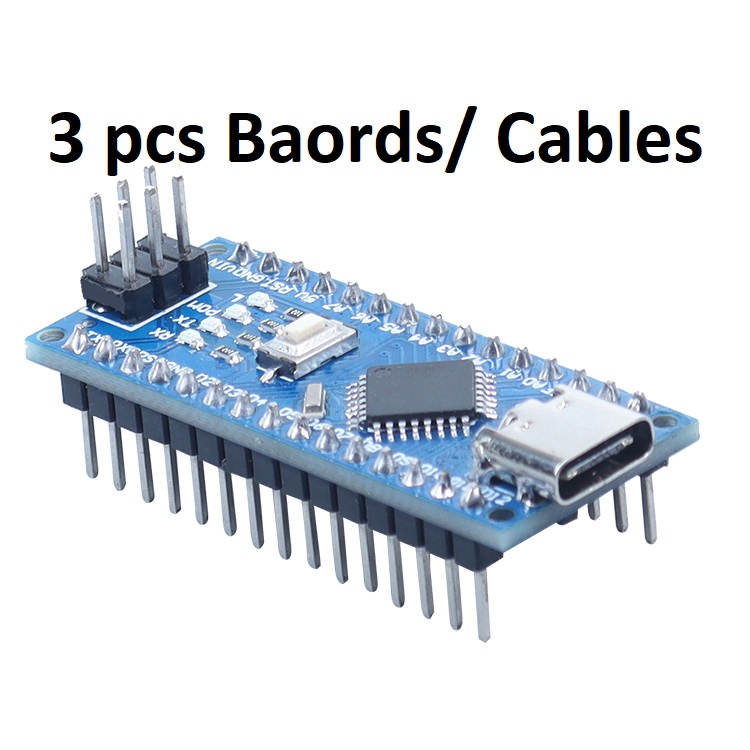

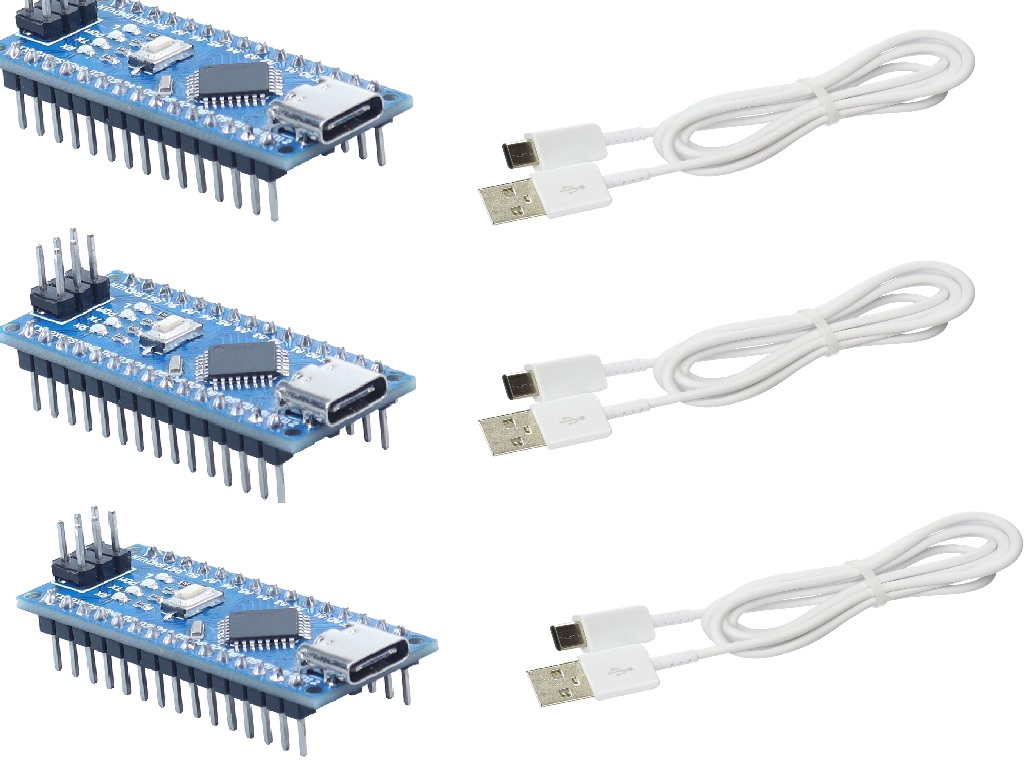

Package Includes
--3 pcs Soldered Arduino Nano V3.0 ATMEGA328P
--3 pcs USB C Cables
